EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
WDR120 dB WDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 to 12 mm
MountWall Mount, Pole Mount, Corner Mount, Pendant Mount
PowerDC 12 V±25%
TitleLanguage | Type | Download
SafetyCE-LVD (EN 62368-1)
Weight609g(1.34lb)
HD Image2026/9/7 13:58:56 | UAC-T315-ADZM_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal
Smart IRSupport
Datasheet2026/6/23 5:10:45 | UNV UAC-T315-ADZM 5MP LightHunter VF IR Turret Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night

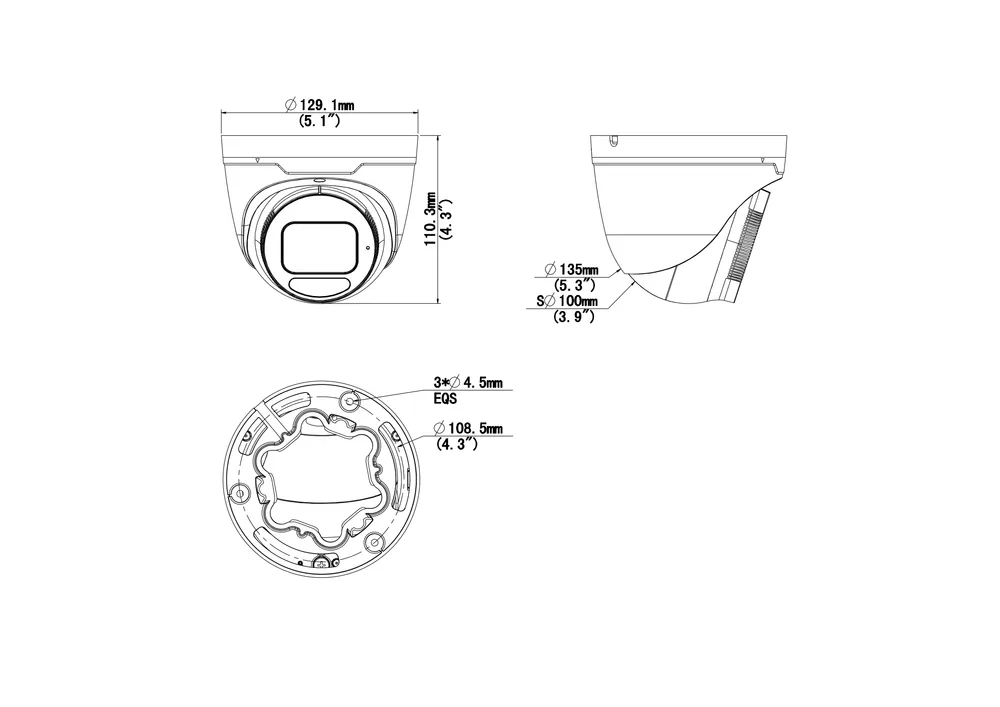

Dimensions2026/9/7 13:58:56 | UAC-T315-ADZM_Dimensions_1.png | Download
Frame RateCVI: 5MP@25fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps TVI: 5MP@20fps 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Lens MountΦ14
ProtectionIP67 (IEC 60529)
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Quick Guide2026/6/24 16:32:01 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.7" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioCVI: 5MP@25fps,5MP@20fps, 4MP@25fps, 4MP@30fps
Shutter TimePAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, WDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution5 MP
Power Interface5.5 mm Power Interface
Surge Protection4 KV for power, 4 KV for video output interfaces
Angle of View (D)127.0° ~ 41.3°
Angle of View (H)107.8° ~ 36.5°
Angle of View (V)58.5° ~ 20.5°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (IR on)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Power ConsumptionMAX 4.7W
Illuminator NumberTwo IR illuminators
Illumination Distance40m
Digital Noise Reduction2D/3D
GUAC-B7202.1.6.260108.zipEnglish | zip | Download
