EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 to 12 mm
MountWall Mount, Pole Mount, Corner Mount, Pendant Mount
PowerDC 12 V±25%
SafetyCE-LVD (EN 62368-1)
Weight609g(1.34lb)
HD Image2026/9/5 3:42:18 | UAC-T312-AZM_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal
Smart IRSupport
Datasheet2026/6/23 5:12:44 | UNV UAC-T312-AZM 2MP LightHunter VF IR Turret Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night

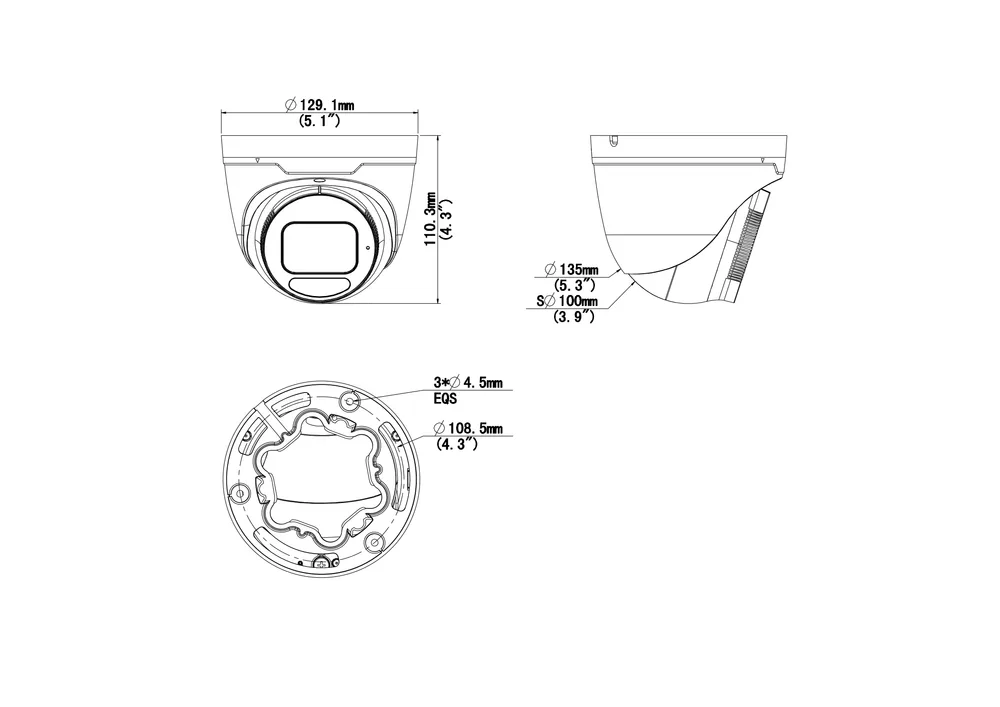

Dimensions2026/9/5 3:42:18 | UAC-T312-AZM_Dimensions_1.png | Download
Frame RateCVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps TVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Lens MountΦ14
ProtectionIP67 (IEC 60529)
Resolution1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Quick Guide2026/6/24 16:32:01 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/3.0" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Built-in MicSupport
Camera AudioCVI: 1080P@25fps, 1080P@30fps * Audio function of the camera is only available when the camera is used with our G3/Q3/U3 series XVRs.
Shutter TimePAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution2 MP
Power Interface5.5 mm Power Interface
Surge Protection4 KV for power, 4 KV for video output interfaces
Angle of View (D)106.8° ~ 35.9°
Angle of View (H)91.3° ~ 31.3°
Angle of View (V)52.2° ~ 18.5°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (IR on)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Power ConsumptionMAX 2.78W
Illuminator NumberTwo IR illuminators
Illumination Distance40 m
Digital Noise Reduction2D/3D
