EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)FCC (FCC 47 CFR part15 B)
WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm
MountCorner Mount&Pole Mount&Wall Mount&Pendant Mount
PowerDC 12 V ± 25%
SafetyCE-LVD (EN 62368-1)
Weight239g(0.53lb)
HD Image2026/9/18 2:05:42 | UAC-T142-AF28M-DL_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal
Datasheet2025/12/5 23:03:29 | UNV UAC-T142-AF28M-DL 2MP ColorHunter With Smart Dual Light Turret Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night

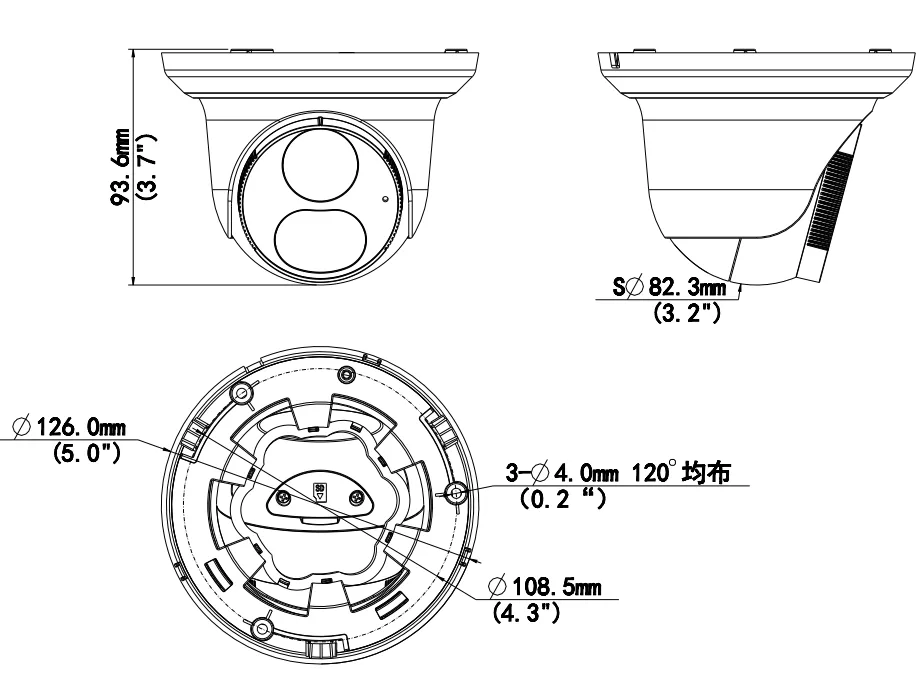

Dimensions2026/9/18 2:05:42 | UAC-T142-AF28M-DL_Dimensions_1.png | Download
Frame RateTVI: 1080P@25fps, 1080P@30fps(default); 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Lens MountM12
Light ModeDual light (default) , Infrared, White light
ProtectionIP67 (IEC 60529)
Resolution1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Quick Guide2026/7/8 4:09:58 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/3.0" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution2 MP
Power Interface5.5 mm Power Interface
Surge Protection4kV for power&4kV for video output interfaces
Angle of View (D)121.8°
Angle of View (H)100.9°
Angle of View (V)56.5°
Min. Illumination0.003 lux (F1.6, AGC ON) 0 lux (Illuminator ON)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Power ConsumptionMAX 3.6W
Illuminator NumberTwo IR illuminators; Two white-light illuminators
Illumination DistanceIR: 40m (131.23 ft) White light: 40m (131.23ft)
Digital Noise Reduction2D/3D
