EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4), FCC (FCC 47 CFR part15 B)
WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm | 4.0 mm
MountCorner Mount, Pole Mount, Wall Mount, Pendant Mount
PowerDC 12 V±25%
SafetyCE-LVD (EN IEC 62368-1)
Weight256g(0.57lb)
HD Image2026/9/5 3:40:28 | UAC-T142-ACF28LM-DL_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal + Plastic
Datasheet2026/6/22 22:09:17 | UNV UAC-T142-ACF28(40)LM-DL 2MP Fixed Two-way Audio & Active Deterrence Dual-light Turret Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night

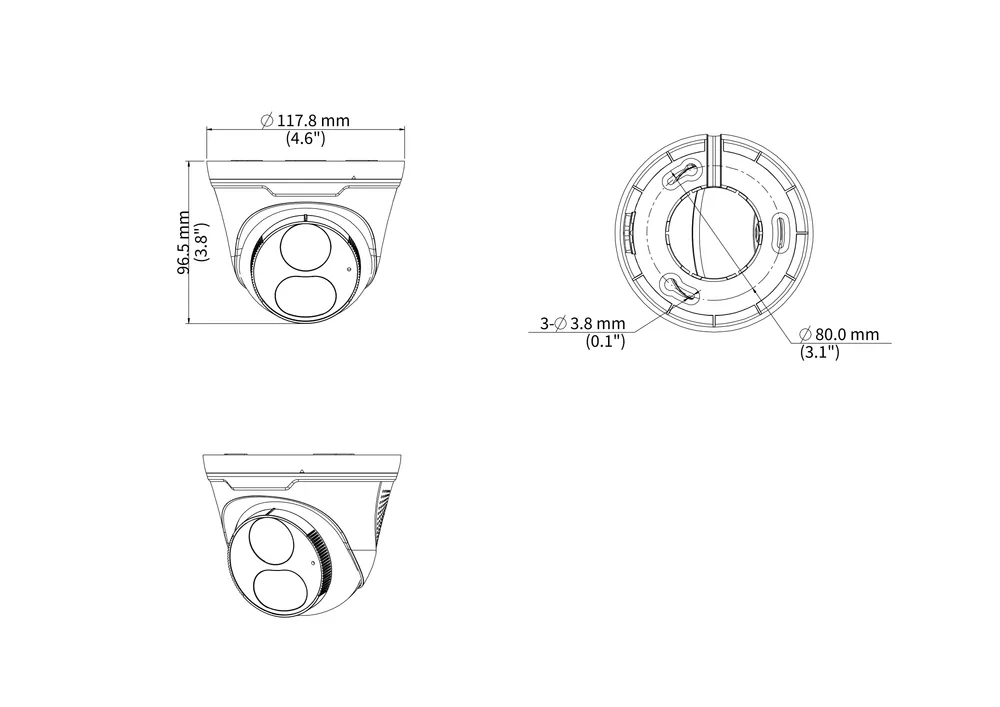

Dimensions2026/9/5 3:40:28 | UAC-T142-ACF28LM-DL_Dimensions_1.png | Download
Frame RateTVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Lens MountM12
Light ModeDual light (default) , Infrared, White light
ProtectionIP67 (IEC 60529)
Resolution1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Quick Guide2026/7/3 5:00:38 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/3.0" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps
Shutter TimePAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
Two-way AudioSupport
White BalanceTwo modes: Auto (default), Manual
Max Resolution2 MP
Power Interface5.5 mm Power Interface
Surge Protection4 KV for power, 4 KV for video output interfaces
Angle of View (D)109.5° | 59.0°
Angle of View (H)96.5° | 52.0°
Angle of View (V)54.5° | 31.0°
Min. Illumination0.003 lux (F1.6, AGC ON) 0 lux (Illuminator ON)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Power ConsumptionMAX 3.4W
Illuminator NumberOne IR illuminator; One white-light illuminator
UAC-T142-ACF28LM-DLUAC-T142-ACF40LM-DL
Illumination DistanceIR: 40m (131.23 ft) White light: 40m (131.23ft)
Digital Noise Reduction2D/3D
