EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm
MountWall Mount, Pole Mount, Corner Mount, Pendant Mount
PowerDC 12 V±25%/PoC
TitleLanguage | Type | Download
SafetyCE-LVD (EN 62368-1)
Weight370g (0.82lb)
HD Image2026/9/7 14:58:03 | UAC-T125-APF28LM_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal + Plastic
Smart IRSupport
Datasheet2026/6/22 17:52:54 | UNV UAC-T125-APF28LM 5MP LightHunter PoC Fixed IR Turret Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night

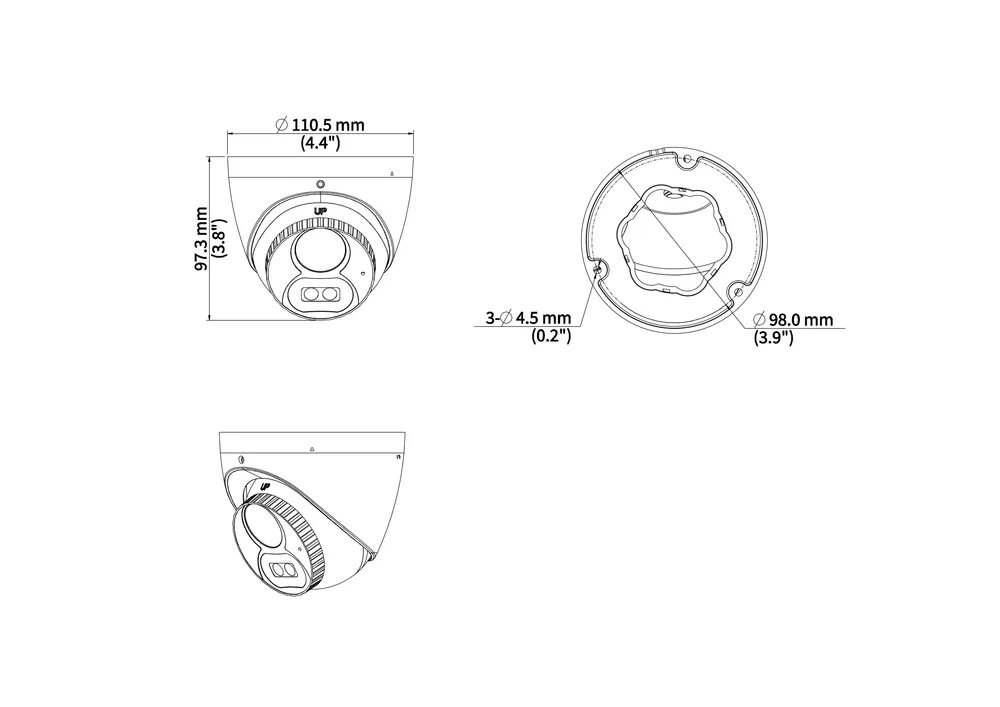

Dimensions2026/9/7 14:58:03 | UAC-T125-APF28LM_Dimensions_1.png | Download
Frame RateTVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC
Lens MountM12
ProtectionIP67 (IEC 60529)
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Quick Guide2026/7/8 4:09:58 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.7" CMOS
Temperature-30°C to 60°C (-22°F to 140°F)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioTVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps * Audio function of the POC series camera is only available when the camera is used with our POC series XVRs.
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution5 MP
Power Interface5.5 mm Power Interface
Surge Protection4 KV for power, 4 KV for video output interfaces
Angle of View (D)126.7°
Angle of View (H)109.1°
Angle of View (V)60.9°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (IR on)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Power ConsumptionMAX 3.4W
Illuminator NumberTwo IR illuminators
Illumination Distance40m
Digital Noise Reduction2D
GUAC-B1508.1.5.251023.zipEnglish | zip | Download
