WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm | 4.0 mm
MountWall Mount, Pole Mount, Corner Mount, Pendant Mount
PowerDC 12 V ± 25%
TitleLanguage | Type | Download
Weight356g(0.79lb)
HD Image2026/9/18 2:05:37 | UAC-T125-AF28M-W_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal + Plastic
Datasheet2026/6/23 13:59:52 | UNV UAC-T125-AF28(40)M-W 5MP ColorHunter HD Fixed Turret Analog Camera.pdf | English | pdf | Preview | Download
Day/Night24/7 color images

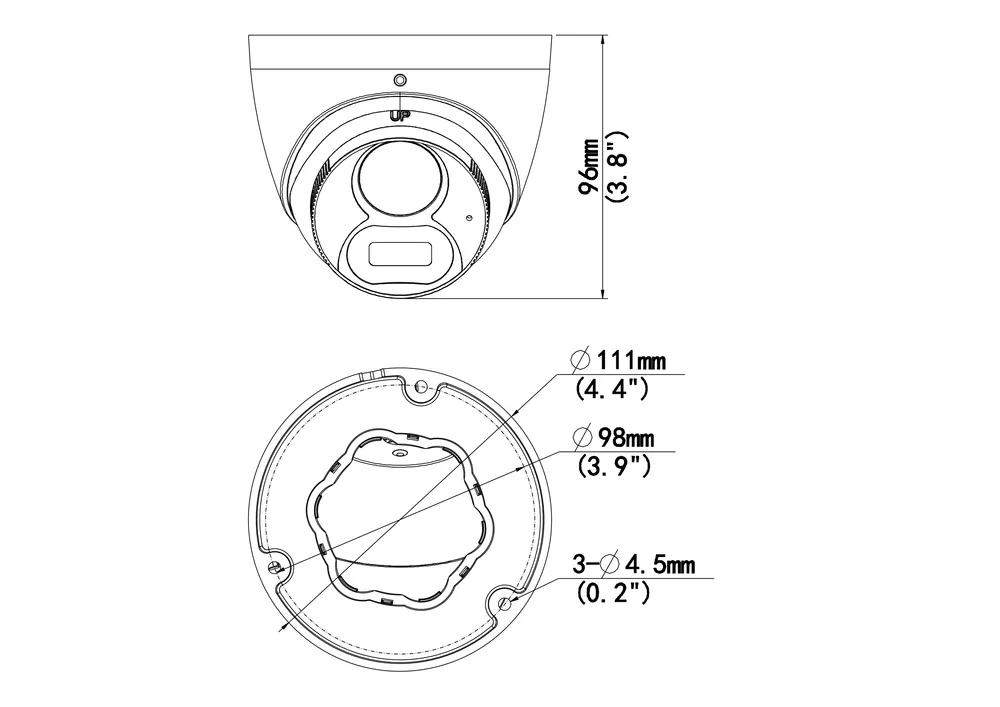

Dimensions2026/9/18 2:05:37 | UAC-T125-AF28M-W_Dimensions_1.png | Download
Frame RateTVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Lens MountM12
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Quick Guide2026/7/8 4:09:58 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.7" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioTVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution5 MP
Power Interface5.5 mm Power Interface
Surge Protection4 KV for power, 4 KV for video output interfaces
UAC-T125-AF28M-WUAC-T125-AF40M-W
Angle of View (D)134.8° | 106.4°
Angle of View (H)111.5° | 89.6°
Angle of View (V)58.9° | 48.3°
Min. Illumination0.005 lux (F1.4, AGC ON) 0 lux (white light on)
Power ConsumptionMAX 3.28W
Illuminator NumberTwo white-light illuminators
Ingress ProtectionIP67
Illumination Distance40m
Digital Noise Reduction2D
GUAC-B1302.2.3.251023.zipEnglish | zip | Download
