WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm | 4.0 mm
MountWall Mount, Pole Mount, Corner Mount, Pendant Mount
PowerDC 12 V ± 25%
TitleLanguage | Type | Download
Weight334g(0.74lb)
HD Image2026/9/7 12:54:19 | UAC-T124-AF28LM_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialGraphene + Metal + Plastic
Smart IRSupport
Datasheet2026/6/23 16:16:28 | UNV UAC-T124-AF28(40)LM 4MP LightHunter HD IR Fixed Turret Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night

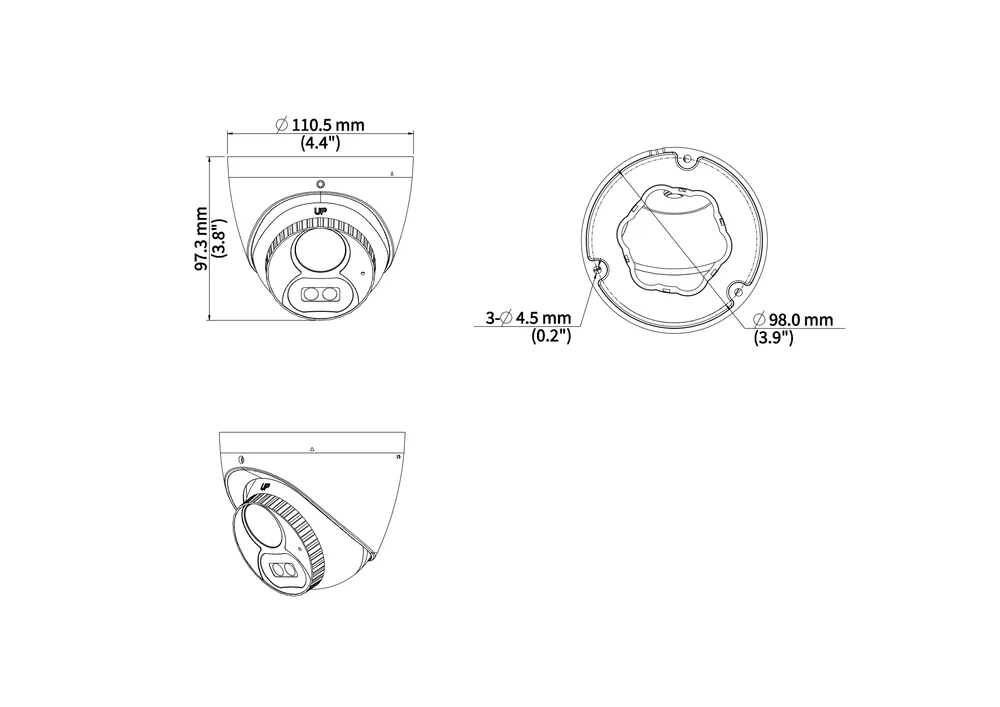

Dimensions2026/9/7 12:54:19 | UAC-T124-AF28LM_Dimensions_1.png | Download
Frame RateTVI: 4MP@25fps (default), 4MP@30fps,1080P@25fps, 1080P@30fps AHD: 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps CVI: 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Lens MountM12
Resolution4MP: 2560 (H) × 1440 (V) 1080P: 1920 (H) × 1080 (V)
Sensor Size1/3.0" CMOS
Temperature-30°C to 60°C (-22°F to 140°F)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioTVI: 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps CVI: 4MP@25fps, 4MP@30fps
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution4 MP
Power Interface5.5 mm Power Interface
UAC-T124-AF28LMUAC-T124-AF40LM
Surge Protection4 KV for power, 4 KV for video output interfaces
Angle of View (D)111.9° | 94.4°
Angle of View (H)97.7° | 81.1°
Angle of View (V)54.9° | 41.0°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (IR on)
Power ConsumptionMAX 3.5W
Illuminator NumberTwo IR illuminators
Ingress ProtectionIP67
Illumination Distance40m
Digital Noise Reduction2D
GUAC-B1502.2.2.240620-ALL.zipEnglish | zip | Download
