WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus4.0 mm
MountWall Mount, Pendant Mount
PowerDC 12 V ± 25%
RS485Support
TitleLanguage | Type | Download
PatrolN/A
Weight477g(1.05lb)
HD Image2026/9/18 2:05:42 | UAC-P112-AF40-W_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 20000 hours
MaterialGraphene + Plastic
Baud Rate9600 bps/4800 bps/2400 bps/1200 bps
Datasheet2026/6/23 14:08:57 | UNV UAC-P112-AF40-W 2MP ColorHunter HD PT Analog Camera.pdf | English | pdf | Preview | Download
Day/Night24/7 color images
Pan Range0° to 345°
Pan Speed1° to 40°/s

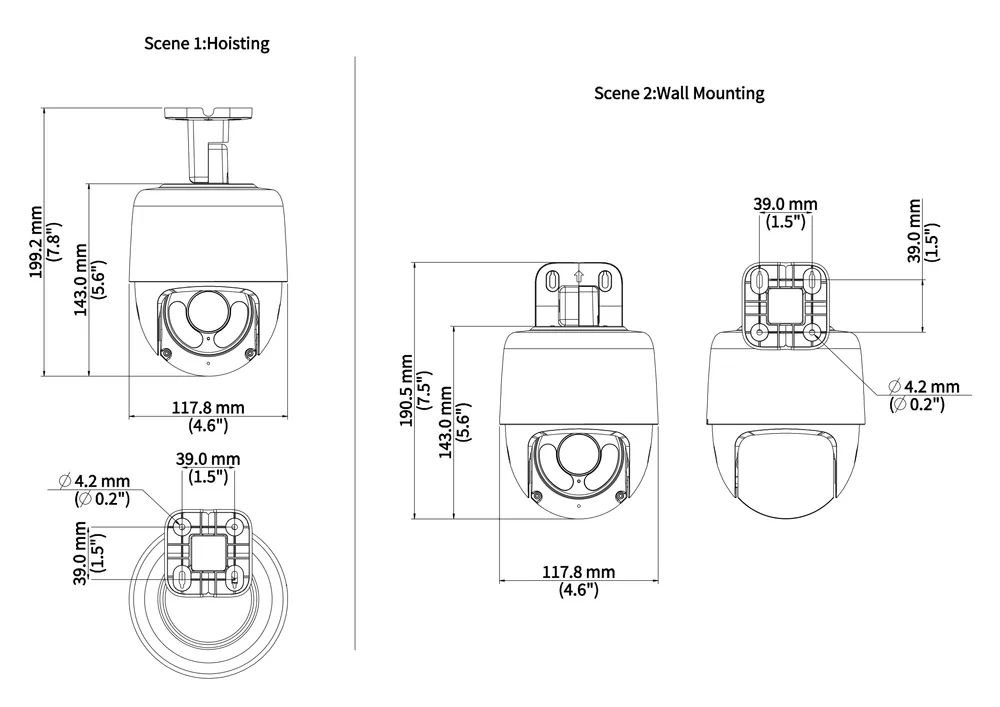

Dimensions2026/9/18 2:05:42 | UAC-P112-AF40-W_Dimensions_1.png | Download
Frame RateTVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Lens MountM12
Resolution1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Tilt Range0° to 90°
Tilt Speed1° to 30°/s
Quick Guide2026/6/24 16:10:18 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.9" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Control Mode485/BNC
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogSupport
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution2 MP
Power Interface5.5 mm Power Interface
Surge Protection4 KV for power, 4 KV for video output interfaces, 6 kV for RS485 interface
Angle of View (D)100.1°
Angle of View (H)83.8°
Angle of View (V)42.7°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (white light on)
Number of Presets32
Power ConsumptionMAX 8.5W
Illuminator NumberEight white-light illuminators
Ingress ProtectionIP66
Illumination Distance30m
Digital Noise Reduction2D/3D
GUAC-B3101.2.1.240523-ALL.zipEnglish | zip | Download
