EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
WDR120 dB WDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm | 4.0 mm
MountWall Mount, Pole Mount, Corner Mount, Pendant Mount
PowerDC 12 V ± 25%
SafetyCE-LVD (EN 62368-1)
Weight395g(0.87lb)
HD Image2026/9/7 13:00:40 | UAC-D128-ADF28MS_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal
Smart IRSupport
Datasheet2026/6/23 16:47:39 | UNV UAC-D128-ADF28(40)MS 8MP LightHunter Fixed IR Dome Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night

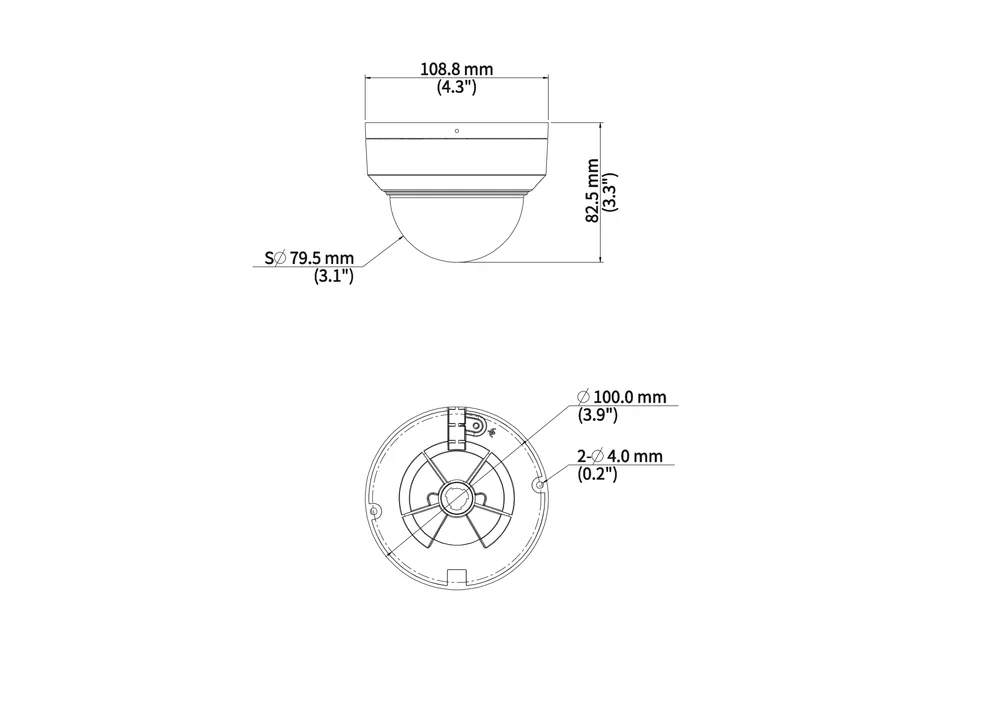

Dimensions2026/9/7 13:00:40 | UAC-D128-ADF28MS_Dimensions_1.png | Download
Frame RateCVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
Lens MountM12
ProtectionIP67 (IEC 60529) IK10 (IEC 62262)
Resolution4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H)×1944(V); 4MP: 2560(H)×1440(V)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Quick Guide2026/6/24 16:12:27 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.7" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioCVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, WDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution8 MP
Power Interface5.5 mm Power Interface
Surge Protection4kV for power&4kV for video output interfaces
UAC-D128-ADF28MSUAC-D128-ADF40MS
Angle of View (D)126.7° | 99.9°
Angle of View (H)109.1° | 86.8°
Angle of View (V)61.0° | 49.4°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (IR ON)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Power ConsumptionMAX 3.7W
Illuminator NumberOne IR illuminator
Illumination Distance30m
Digital Noise Reduction2D/3D
