WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm | 4.0 mm
MountWall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount
PowerDC 12 V ± 25%
TitleLanguage | Type | Download
Weight372g(0.82lb)
HD Image2026/9/7 12:28:11 | UAC-D125-AF28M_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal
Smart IRSupport
Datasheet2026/6/23 14:20:17 | UNV UAC-D125-AF28(40)M 5MP LightHunter HD IR Fixed Dome Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night
IK RatingIK10

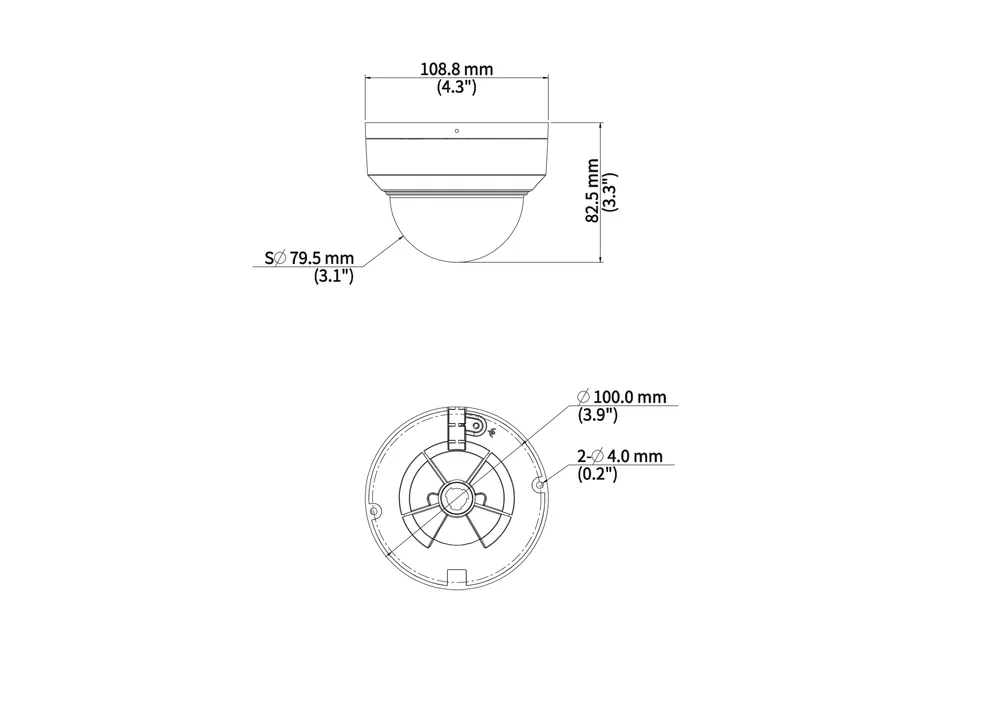

Dimensions2026/9/7 12:28:11 | UAC-D125-AF28M_Dimensions_1.png | Download
Frame RateTVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Lens MountM12
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Quick Guide2026/6/24 16:12:27 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.7" CMOS
Temperature-30°C to 60°C (-22°F to 140°F)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioTVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution5 MP
UAC-D125-AF28MUAC-D125-AF40M
Power Interface5.5 mm Power Interface
Surge Protection4 KV for power, 4 KV for video output interfaces
Angle of View (D)126.7° | 109.6°
Angle of View (H)109.1° | 91.3°
Angle of View (V)60.9° | 46.1°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (IR on)
Power ConsumptionMAX 3.3W
Illuminator NumberOne IR illuminator
Ingress ProtectionIP67
Illumination Distance30m
Digital Noise Reduction2D
GUAC-B8203.1.1.251105.zipEnglish | zip | Download
