WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm | 4.0 mm
MountWall Mount, Pole Mount, Corner Mount, Tilted Mount, Pendant Mount
PowerDC 12 V ± 25%
TitleLanguage | Type | Download
Weight372g(0.82lb)
HD Image2026/9/7 12:27:45 | UAC-D122-AF28M_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal
Smart IRSupport
Datasheet2026/6/23 14:20:04 | UNV UAC-D122-AF28(40)M 2MP LightHunter HD IR Fixed Dome Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night
IK RatingIK10

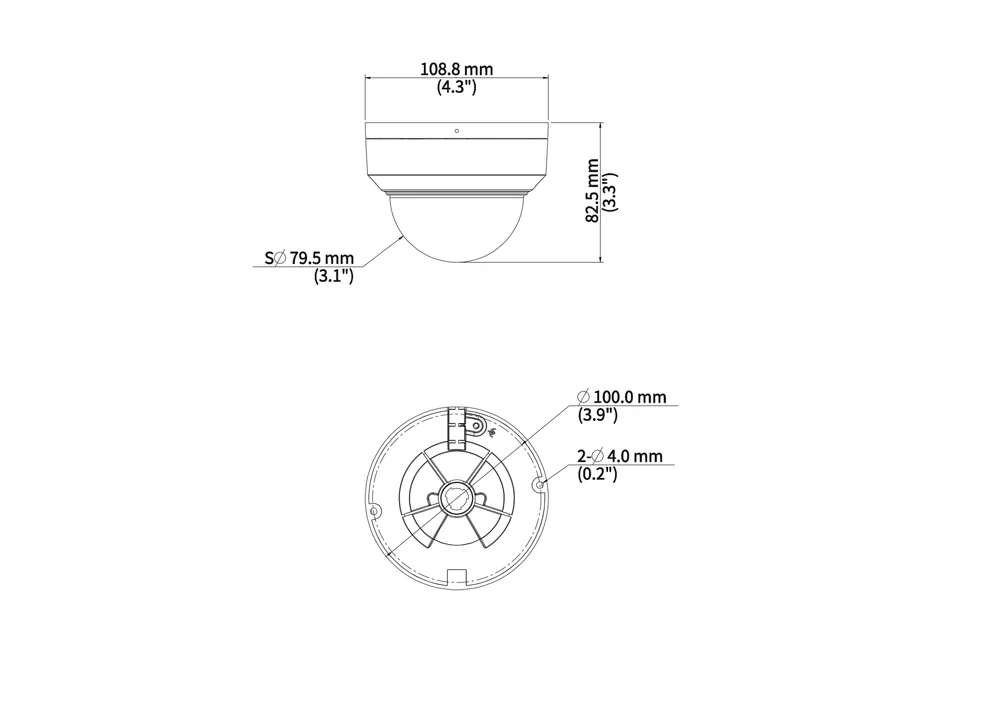

Dimensions2026/9/7 12:27:45 | UAC-D122-AF28M_Dimensions_1.png | Download
Frame RateTVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Lens MountM12
Resolution1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Quick Guide2026/6/24 16:12:27 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.9" CMOS
Temperature-30°C to 60°C (-22°F to 140°F)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogSupport
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution2 MP
UAC-D122-AF28MUAC-D122-AF40M
Power Interface5.5 mm Power Interface
Surge Protection4 KV for power, 4 KV for video output interfaces
Angle of View (D)117.4° | 100.1°
Angle of View (H)101.5° | 83.8°
Angle of View (V)56.9° | 42.7°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (IR on)
Power ConsumptionMAX 3.3W
Illuminator NumberOne IR illuminator
Ingress ProtectionIP67
Illumination Distance30m
Digital Noise Reduction2D/3D
GUAC-B5101.2.11.250904.zipEnglish | zip | Download
