EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
WDR120 dB WDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 to 12 mm
MountCorner Mount, Pole Mount
PowerDC 12 V±25%/PoC
TitleLanguage | Type | Download
SafetyCE-LVD (EN 62368-1)
Weight550g(1.21lb)
HD Image2026/9/7 15:32:38 | UAC-B312-ADPZMS_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal
Smart IRSupport
Datasheet2026/8/7 18:02:17 | UNV UAC-B312-ADPZMS 2MP LightHunter PoC VF IR Bullet Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night

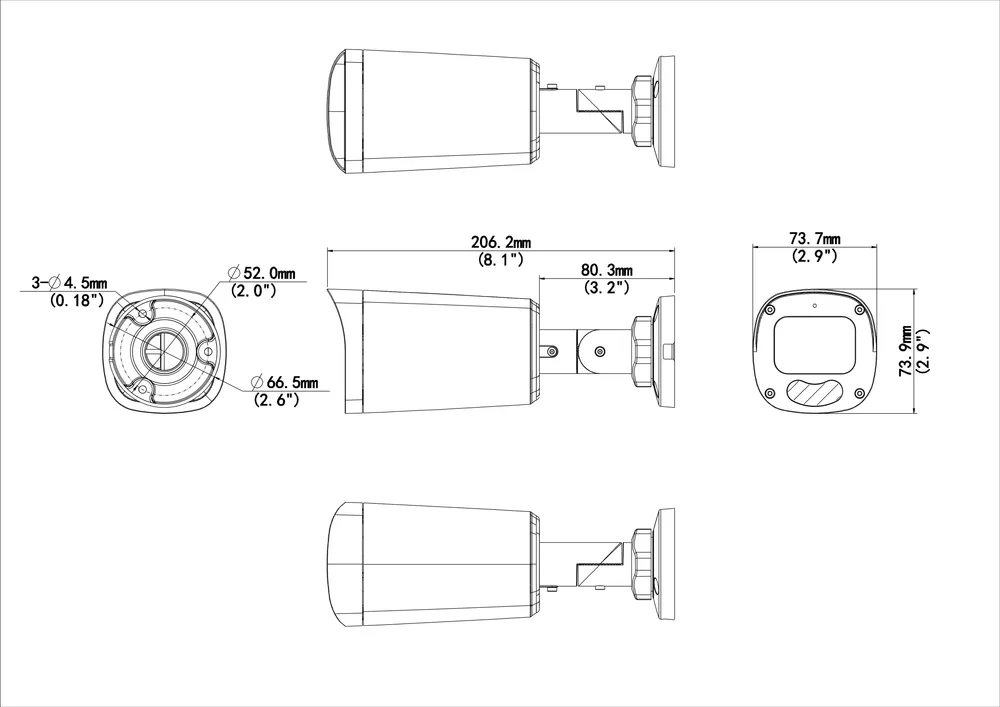

Dimensions2026/9/7 15:32:38 | UAC-B312-ADPZMS_Dimensions_1.png | Download
Frame RateCVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps TVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Lens MountΦ14
ProtectionIP67 (IEC 60529)
Resolution1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Quick Guide2026/7/3 5:00:30 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.8'' CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioCVI: 1080P@25fps, 1080P@30fps * Audio function of the POC series camera is only available when the camera is used with our POC series XVRs.
Shutter TimePAL: 1/25 s-1/50000 s, NTSC: 1/30 s-1/50000 s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, WDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution2 MP
Power Interface5.5 mm Power Interface
Surge Protection4 KV for power, 4 KV for video output interfaces
Angle of View (D)114.0° ~ 39.2°
Angle of View (H)98.5° ~ 33.0°
Angle of View (V)54.5° ~ 19.3°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (IR on)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Power Consumption6.4 W (POC)
Illuminator NumberThree IR illuminators
Illumination Distance50m
Digital Noise Reduction2D/3D
GUAC-B7203.1.0.250428.zipEnglish | zip | Download
