EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)FCC (FCC 47 CFR part15 B)
WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm
MountCorner Mount&Pole Mount
PowerDC 12 V ± 25%
TitleLanguage | Type | Download
SafetyCE-LVD (EN 62368-1)
Weight227g(0.50lb)
HD Image2026/9/18 2:05:42 | UAC-B145-AF28M-DL_HD_Image_5.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal
Datasheet2025/12/5 23:03:25 | UNV UAC-B145-AF28M-DL 5MP ColorHunter With Smart Dual Light Bullet Analog Camera.pdf | English | pdf | Preview | Download
Day/NightThree modes: Auto (default), Day, Night

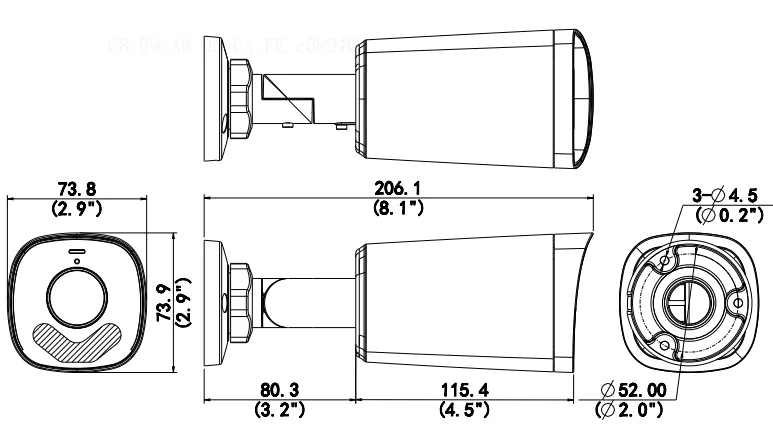

Dimensions2026/9/18 2:05:42 | UAC-B145-AF28M-DL_Dimensions_1.png | Download
Frame RateTVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Lens MountM12
Light ModeDual light (default) , Infrared, White light
ProtectionIP67 (IEC 60529)
Resolution5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Quick Guide2026/7/3 5:00:30 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.7" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Built-in MicSupport
Camera AudioTVI: 5MP@20fps, 5MP@12.5fps, 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps CVI: 5MP@25fps, 4MP@25fps, 4MP@30fps
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution5 MP
Power Interface5.5 mm Power Interface
Surge Protection4kV for power&4kV for video output interfaces
Angle of View (D)130.0°
Angle of View (H)110.0°
Angle of View (V)57.0°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (Illuminator ON)
OSD Menu Language11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Power ConsumptionMAX 3.5W
Illuminator NumberTwo IR illuminators; Two white-light illuminators
Illumination DistanceIR: 40m (131.23 ft) White light: 40m (131.23ft)
Digital Noise Reduction2D
GUAC-B8205.1.2.251202.zipEnglish | zip | Download
