WDR120 dB WDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm | 4.0 mm
MountCorner Mount&Pole Mount
PowerDC 12 V ± 25%
TitleLanguage | Type | Download
Weight463g(1.02lb)
HD Image2026/9/18 2:05:37 | UAC-B134-ADF28MS-W_HD_Image_5.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialGraphene + Metal
Datasheet2026/6/23 16:51:09 | UNV UAC-B134-ADF28(40)MS-W 4MP ColorHunter Fixed Bullet Analog Camera.pdf | English | pdf | Preview | Download
Day/Night24/7 color images

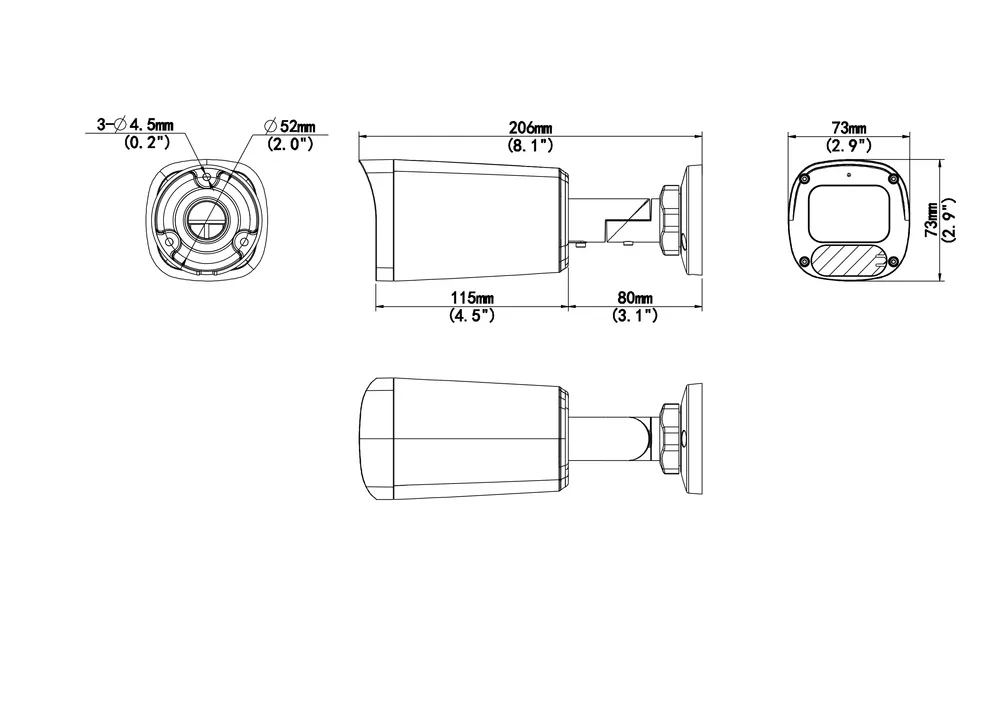

Dimensions2026/9/18 2:05:37 | UAC-B134-ADF28MS-W_Dimensions_1.png | Download
Frame RateCVI: 4MP@25fps (default), 4MP@30fps,1080P@25fps, 1080P@30fps AHD: 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps TVI: 4MP@15fps, 4MP@25fps, 4MP@30fps,1080P@25fps, 1080P@30fps CVBS: PAL, NTSC
Lens MountM16
Resolution4MP: 2560 (H) × 1440 (V) 1080P: 1920 (H) × 1080 (V)
Sensor Size1/1.8" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioCVI: 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogN/A
Exposure ModeFour modes: Global (default), BLC, HLC, WDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution4 MP
Power Interface5.5 mm Power Interface
Surge Protection4kV for power&4kV for video output interfaces
Angle of View (D)125.0° | 105.9°
Angle of View (H)105.9° | 89.5°
Angle of View (V)57.1° | 48.0°
Min. Illumination0.0005 lux (F1.0, AGC ON) 0 lux (white light on)
Power ConsumptionMAX 6.8W
Illuminator NumberTwo white-light illuminators
UAC-B134-ADF28MS-WUAC-B134-ADF40MS-W
Illumination Distance40m
Digital Noise Reduction2D/3D
GUAC-B1701.1.10.240129-ALL.zipEnglish | zip | Download
