WDRDWDR
FlipSupports 180°horizontal flip, 180°vertical flip
ClassDate | Title | Download
Focus2.8 mm | 4.0 mm
MountCorner Mount, Pole Mount
PowerDC 12 V ± 25%
TitleLanguage | Type | Download
Weight279g(0.62lb)
HD Image2026/9/18 2:05:38 | UAC-B122-AF28M-W_HD_Image_3.png | png | Download
Humidity≤ 95% RH (non-condensing)
Lifetime≥ 60000 hours
MaterialMetal
Datasheet2026/6/23 13:58:22 | UNV UAC-B122-AF28(40)M-W 2MP ColorHunter HD Fixed Mini Bullet Analog Camera.pdf | English | pdf | Preview | Download
Day/Night24/7 color images

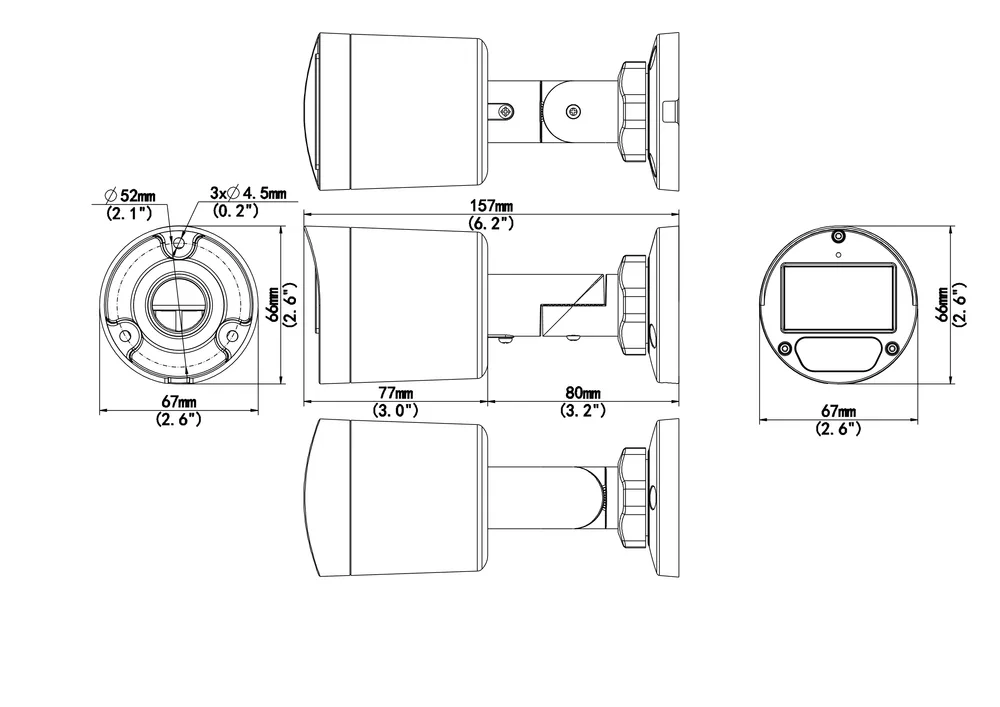

Dimensions2026/9/18 2:05:38 | UAC-B122-AF28M-W_Dimensions_1.png | Download
Frame RateTVI: 1080P@25fps (default), 1080P@30fps; 720P@25fps, 720P@30fps AHD: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVI: 1080P@25fps, 1080P@30fps; 720P@25fps, 720P@30fps CVBS: PAL, NTSC
Lens MountM12
Resolution1080P: 1920(H)×1080(V) 720P: 1280(H) ×720(V)
Quick Guide2026/7/3 5:00:30 | Quick Guide.pdf | English | pdf | Preview | Download
Sensor Size1/2.9" CMOS
Temperature-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
User Manual2026/8/24 14:46:09 | UNV-Analog Cameras User Manual.pdf | English | pdf | Preview | Download
Built-in MicSupport
Camera AudioTVI: 1080P@25fps, 1080P@30fps CVI: 1080P@25fps, 1080P@30fps
Shutter TimePAL: 1/25s-1/50000s， NTSC: 1/30s-1/50000s
Video OutputBNC, supports TVI/AHD/CVI/CVBS
Digital DefogSupport
Exposure ModeFour modes: Global (default), BLC, HLC, DWDR
White BalanceTwo modes: Auto (default), Manual
Max Resolution2 MP
Power Interface5.5 mm Power Interface
Surge Protection4kV for power, 4kV for video output interfaces
UAC-B122-AF28M-WUAC-B122-AF40M-W
Angle of View (D)117.4° | 100.1°
Angle of View (H)101.5° | 83.8°
Angle of View (V)56.9° | 42.7°
Min. Illumination0.005 lux (F1.6, AGC ON) 0 lux (white light on)
Power ConsumptionMAX 3.12W
Illuminator NumberTwo white-light illuminators
Ingress ProtectionIP67
Illumination Distance40m
Digital Noise Reduction2D/3D
GUAC-B2101.1.8.260204.zipEnglish | zip | Download
