OSDUp to 8 OSDs
ROISupport
RTCSupport
S/N>56 dB
WDR120 dB
IrisF1.6 | F1.0
NETD< 50 mk@F1.0@25 ℃
ClassDate | Title | Download
DefogDigital defog | N/A
PowerDC12V(±25%), PoE(IEEE802.3af)
ClientEZStation, UNV-Link, UNV-Link Pro
Sensor1/2.8" CMOS | Vanadium oxide uncooled focal plane arrays
U-codeSupport
Weight0.73kg (1.6lb)
ChannelOptical | Thermal
Network1 × RJ45 10 M/100 M Base-TX Ethernet
PaletteN/A | lava, medical, arctic, mazarine, fusion, rain, puce, white hot, iron oxide red, hot iron, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1, color 2
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/7 15:04:30 | TIC3612SA-F7-4F6AC-I1_HD_Image_3.png | png | Download
OSD FontVector
Alarm I/O2/2
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Datasheet2026/6/22 14:36:38 | UNV TIC3612SA-F7-4F6AC-I1 Thermal & Optical Bi-spectrum Network Dome Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR) | N/A
OSD ColorSupport
ProtocolsIGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

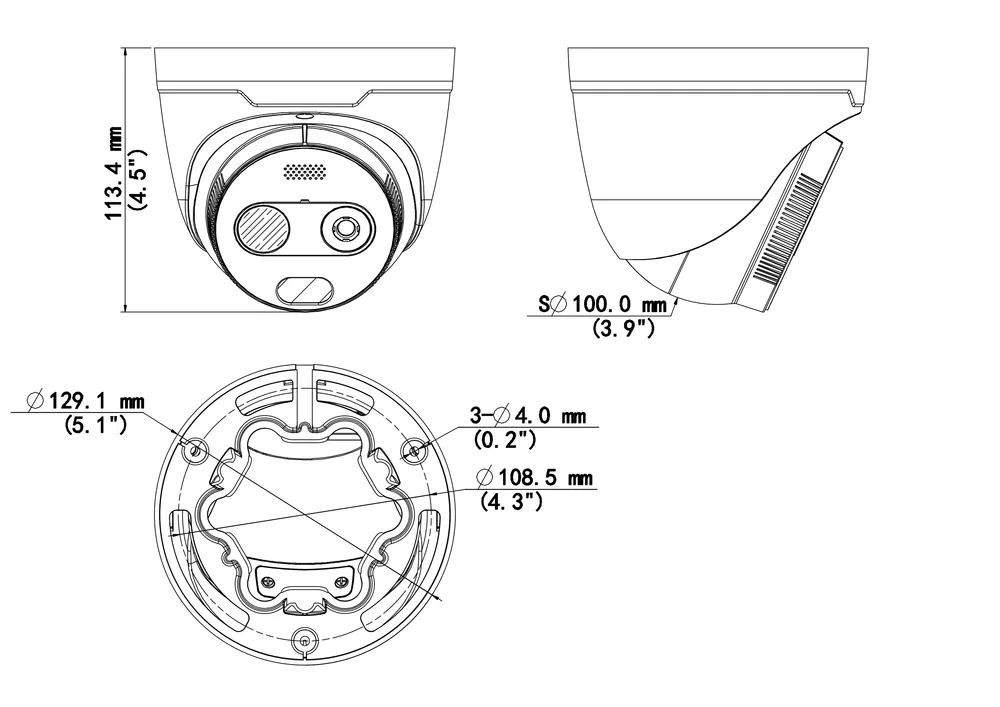

Dimensions2026/9/7 15:04:30 | TIC3612SA-F7-4F6AC-I1_Dimensions_1.png | Download
Frame Rate4MP(2688*1520), Max 30fps | 960P(1280*960), Max 30fps
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Wavelength750 nm | N/A
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Quick Guide2026/7/3 4:56:55 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1 × RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length6.0 mm | 7.0 mm
Privacy MaskUp to 8 areas (8 blacks/ 8 mosaics) | N/A
Reset ButtonSupport
Video OutputN/A | 1 BNC (for debugging)
Video StreamTriple streams
Audio Bitrate128 Kbps
Corridor ModeSupport
Sampling Rate16KHZ
Two-way AudioSupport
Fire DetectionN/A | Support
Max Resolution4 MP | 960P
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Audio detection | N/A
Network StorageANR
Power InterfaceØ5.5 mm coaxial power plug
Smoke DetectionSupport | N/A
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection6 KV
Audio CompressionG.711U, G.711A
Field of View (D)60.4° | 31°
Field of View (H)49.1° | 25.2°
Field of View (V)26.9° | 19.3°
Maximum Bandwidth50 Mbps
Maximum Bitstream35
Min. IlluminationColour: 0.003 lux (F1.6, AGC ON) B/W: 0.002lux(F1.6,AGC ON) 0 lux with IR | N/A
Power ConsumptionMax 12W
Temperature RangeSelectable between -20 ℃ to 150 ℃ (-4 ℉ to 302 ℉) and 100 ℃ to 550 ℃ (212 ℉ to 1022 ℉)
Video CompressionUltra 265, H.265, H.264, MJPEG
Original ResolutionN/A | 256 × 192
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Working Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Light On/Off ControlAuto/Manual | N/A
OSD Character Number40
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)135.0m(442.9ft) | N/A
DORI Distance (Observe)54.0m(177.2ft) | N/A
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)13.5m(44.3ft) | N/A
DORI Distance (Recognize)27.0m(88.6ft) | N/A
Illumination Distance (IR)30m | N/A
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle)
Temperature Measurement Accuracy±8 ℃ (±14.4 ℉) or ±8% (whichever is greater)
Detection distance for fire (0.1 × 0.1 meters)N/A | 29m
Detection distance for vehicles (4 × 1.4 meters)140m
Detection distance for personnel (1.8 × 0.5 meters)70m
Detection distance for temperature (0.1 × 0.1 meters)N/A | 20m
