BLCSupport | N/A
EMCCE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130-4) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
HLCSupport | N/A
OSDUp to 10 OSDs
ROISupport
RTCSupport
S/N>56 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF1.6 | F1.0
NETD< 30 mk@F1.0@25 ℃
ClassDate | Title | Download
DefogDigital defog | N/A
PowerDC12V (± 25% ), PoE (IEEE802.3 at )
ClientEZStation, UNV-Link, UNV-Link Pro
SafetyCE LVD (EN IEC 62368-1) UL (UL 62368-1)
Sensor1/2.7" CMOS | Vanadium oxide uncooled focal plane arrays
U-codeSupport
Weight2.23 kg
ChannelOptical | Thermal
Network1 × RJ45 10 M/100 M Base-TX Ethernet
PaletteN/A | lava, medical, fusion, arctic, mazarine, rain, puce, white hot, iron oxide red, hot iron, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, red hot, green hot, color 1, color 2
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/7 14:41:54 | TIC2626S-F35-4F12AC-I3_HD_Image_3.png | png | Download
OSD FontVector
Alarm I/O3/2
Audio I/O2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Case TypeBullet
Datasheet2026/8/11 14:21:03 | UNV TIC2626S-F35-4F12AC-I3 Thermal & Optical Bi-spectrum Network Bullet Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR) | N/A
OSD ColorSupport
ProtocolsIGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

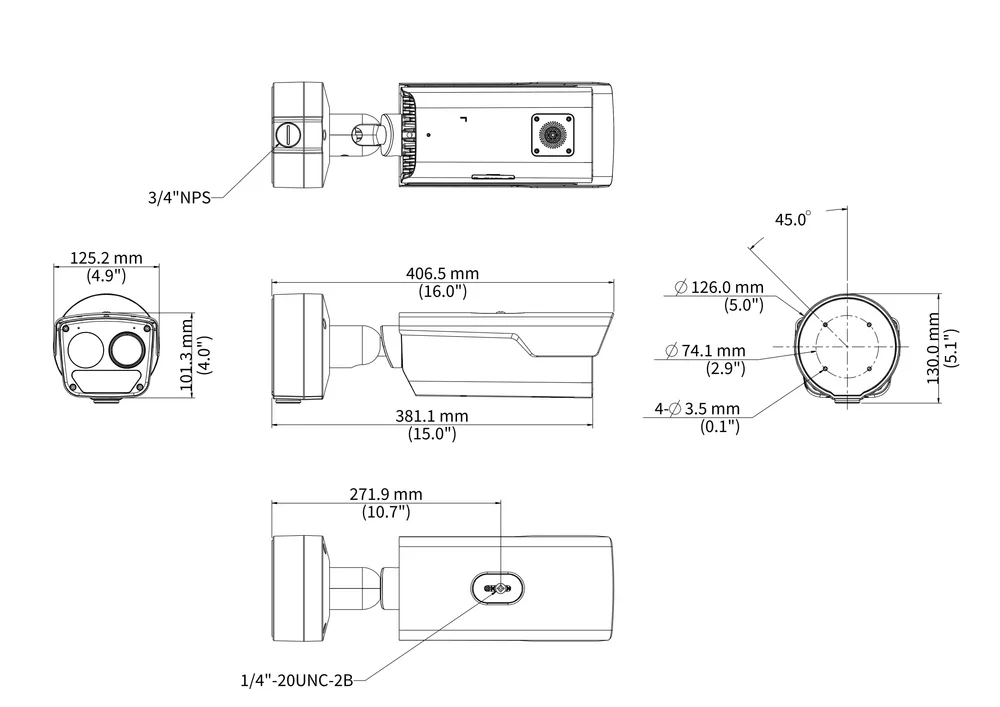

Dimensions2026/9/7 14:41:54 | TIC2626S-F35-4F12AC-I3_Dimensions_1.png | Download
Frame Rate4MP(2688*1520), Max 30fps | 1080P(1920*1080), Max 30fps
Pixel SizeN/A | 12 um
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Wavelength750 nm | N/A
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Plugin FreeSupport
Quick Guide2026/9/2 4:09:42 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1 × RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length12mm | 35mm
Privacy MaskUp to 8 areas (8 blacks/ 8 mosaics) | N/A
Reset ButtonSupport
Video OutputN/A | 1 BNC (for debugging)
Video StreamFive streams
Audio Bitrate128 Kbps
Corridor ModeSupport
Sampling Rate16KHZ
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | N/A
Fire DetectionN/A | Support
Max Resolution4 MP | 1080P
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Audio detection | N/A
Network StorageANR
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection6 KV
Audio CompressionG.711U, G.711A
Field of View (D)30.1° | 15.0°
Field of View (H)24.5° | 12.2°
Field of View (V)13.9° | 8.5°
Maximum Bandwidth50 Mbps
Maximum Bitstream35
Min. IlluminationColour: 0.005 lux (F1.6, AGC ON) B/W: 0.003 lux(F1.6,AGC ON) 0 lux with IR | N/A
Power Consumption22.4W
Temperature Range-20℃ ~150℃ (-4 ℉ to 302℉)
Video CompressionUltra 265, H.265, H.264, MJPEG
Original ResolutionN/A | 640 × 512
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Light On/Off ControlAuto/Manual | N/A
OSD Character Number40
Compatible IntegrationONVIF (Profile S, Profile G, Profile M),SDK, API
DORI Distance (Detect)270.0 m( 885.8 ft ) | N/A
DORI Distance (Observe)108.0 m( 354.4 ft ) | N/A
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)27 m( 88.6 ft ) | N/A
DORI Distance (Recognize)54.0 m( 177.2 ft ) | N/A
Illumination Distance (IR)100 m (328.1 ft.) | N/A
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human and vehicle)
Low Illumination CharacteristicsLightHunter
Detection distance for fire (0.1 × 0.1 meters)N/A | 220m
Detection distance for vehicles (4 × 1.4 meters)N/A | 1050m
Detection distance for personnel (1.8 × 0.5 meters)N/A | 350m
Detection distance for temperature (0.1 × 0.1 meters)N/A | 30m
