BLCSupport
EMCCE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC 61000-3-2:2019+A1:2021, EN 50130-4:2011+A1:2014) FCC(FCC CFR 47 part15 B,ANSI C63.4 2014)
FOVHorizontal FOV: 34.3° to 8.7°, Vertical FOV: 19.9° to 4.8°, Diagonal FOV: 40.5° to 9.8°
HLCSupport
ROISupports up to 8 regions
S/N> 50 dB
WDR120 dB
ClassDate | Title | Download
DefogDigital defog
TitleLanguage | Type | Download
HeaterN/A
SafetyEN IEC 62368-1:2020+A11:2020 UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Sensor1/1.8-inch 4MP CMOS
Weight2.02kg
Bracket3-axis mounting bracket
ShutterAuto, range: 1/500 to 1/100000s
HD Image2026/9/7 16:07:57 | PKC2641-Z100-P_HD_Image_5.png | png | Download
Datasheet2026/6/22 15:30:15 | UNV PKC2641-Z100-(IR)-P 4MP LPR Bullet Camera (10 to 50mm PoE H.265 warm light(IR)).pdf | English | pdf | Preview | Download
Image OSDSupports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location
ProtocolsIGMP,IPv6,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTSP,DNS,DDNS,NTP,UPnP,HTTP,HTTPS,802.1x,SNMP,QoS,SSL/TLS,SSH,IPv4
Video OSDSupports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents
Dimensions2026/9/7 16:07:57 | PKC2641-Z100-P_Dimensions_1.png | Download
Frame rate60, 50, 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
ProtectionIP67(IEC60529:1989+AMD1:1999+AMD2:2013) IK10(IEC 62262:2002+AMD1:2021)
ResolutionMain stream: 2688*1520, 1080P (default), 720P, D1; Sub stream: 720P (default), D1, 2CIF, CIF; Third stream: D1 (default), 2CIF, CIF
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863);WEEE (2012/19/EU)
Quick Guide2026/6/24 16:35:54 | Quick Guide.pdf | English | pdf | Preview | Download
Serial port2 × RS485
Edge storageSupports ANR with a Micro SD card, up to 512GB
Focal length10 to 50mm
IlluminationBuilt-in integrated illumination module, including 5 warm light LEDs, 50m illumination distance, automatic on/off control | Built-in integrated illumination module, including 5 IR LEDs, 50m illumination distance, automatic on/off control
Junction boxThe camera comes with a junction box for storing tail cable
Power supplyDC12V + 25% - 25% Max. power consumption: 20W Supports PoE (802.3at, class 4)
Reset buttonSupport
Boolean input2 x input, supports level (up to DC 5V) and switch signal
Boolean output2 relay outputs, withstand voltage: AC 125V/0.3A, DC 30V/1A
NDAA CompliantSupport
PKC2641-Z100-PPKC2641-Z100-IR-P
Audio interface1 × audio input, 1 × audio output
Network interface1×10M/100M RJ45
Storage interface1 × Micro SD card slot
Video compressionH.264 (default), H.265
Wiegand InterfaceSupports Wiegand output
Ingress protectionIP67, IK10
List configurationSupports allowlist and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations
Detection DirectionBidirectional、Top to Bottom、Bottom to Top
Application scenario≤ 80km/h for regular roads; Camera with the focal length of 10 to 50mm can be used for regular roads

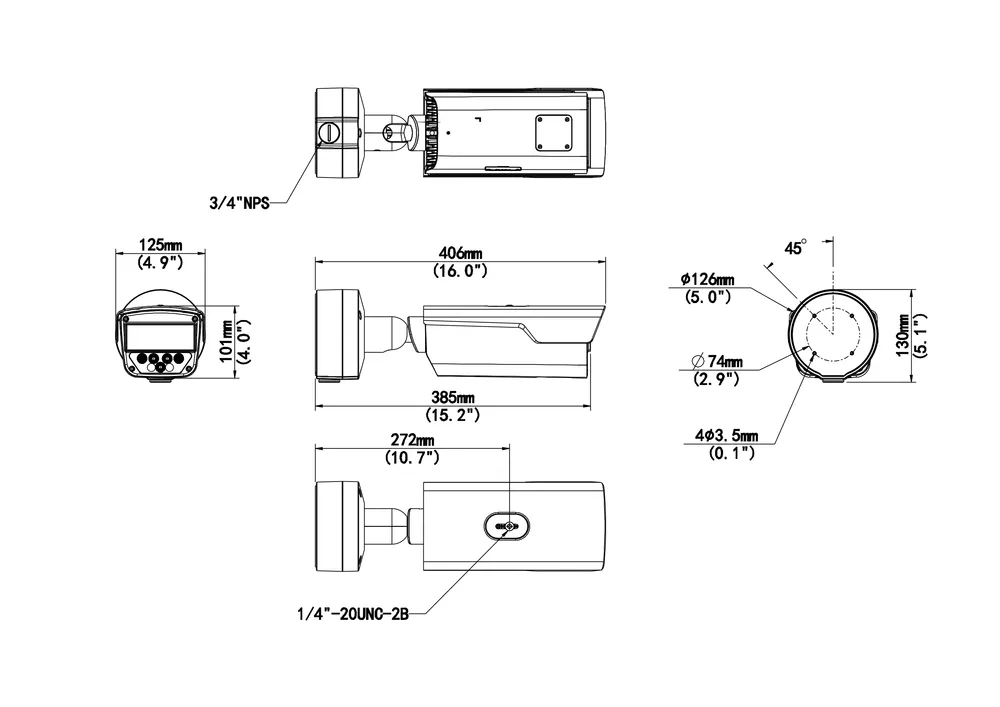

Dimensions (L×W×H)406mm x 126mm x 130mm
Minimum illumination0.002lux (F1.7)
Operating environment-40℃ to 60℃, ≤90% RH
Barrier opening policyOpen barrier only for the recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID
Compatible IntegrationONVIF (Profile S, Profile G, Profile T),SDK, API
Vehicle detection modeSupports video detection
Digital Noise Reduction3D DNR
Image collection format2688*1520@60,2688*1520@50,2688*1520@30 (default),2688*1520@25
Vehicle Type RecognitionCar/Van/Large Bus/Medium Bus/Heavy Truck/Light Truck/SUV/MPV/Pickup/Motorcycle
ANPR-B1107.2.6.260723.zipEnglish | zip | Download
Vehicle Color RecognitionRed, Yellow, green, blue, purple, pink, brown, white, Grey, black, silver, orange
Country and Region SupportedUnited States, Canada, Saudi Arabia, United Arab Emirates, Qatar, Singapore, Malaysia, Indonesia, Vietnam, Thailand, India, Bangladesh, Cambodia, South Korea, Kyrgyzstan, Tajikistan, Kazakhstan, Uzbekistan, Turkmenistan, Egypt, Tunisia, Brazil, Argentina, Mexico, Finland, Estonia, Latvia, Lithuania, Poland, France, Spain, Portugal, Germany, United Kingdom, Ireland, Bulgaria, Romania, Hungary, Serbia, Bosnia and Herzegovina, Greece, Croatia, Italy, Netherlands, Sweden, Belgium, Austria, Norway, Denmark, Slovenia, Czechia, Slovakia, New Zealand, Australia, Philippines, Nepal, Israel, Albania, Moldova, Turkey, Switzerland, Georgia, Bahrain, Morocco
License plate number recognitionSupports recognition of license plates with numbers and letters by default
Vehicle Manufacturer Recognition133 Manufacturers: Audi, ALFA ROMEO, AION, ANKAI, ACURA, Aston Martin, ARCFOX, BYD, BUICK, BENTLEY, BMW, BAIC MOTOR, BUGATTI, BORGWARD, Beiben Truck, Besturn, CHANGAN, Citroën, Cadillac, CHERY, CHRYSLER, Chevrolet, CHTC, DONGFENG, DACIA, Daihatsu, DATSUN, DODGE, DS, DAEWOO, Dongnan, EXEED, FAW, Ford, FORLAND, Ferrari, FIAT, Foton, GEELY, GAC, GREAT WALL, GMC, Geometry, HONDA, HYUNDAI, HIGER, Hino, Hong Qi, Haval, Haima, INFINITI, Isuzu, IVECO, IM, JAC, JEEP, JAGUAR, JOYLONG, JMC, JETTA, JETOUR, KIA, Karry, King Long, KMULLER, LYNK&CO, LINCOLN, LEXUS, LOTUS, LANDWIND, LANDROVER, LAMBORGHINI, LIFAN, LEVC, LUXGEN, LEOPARD, LADA, LUMMA, LI AUTO, LEAPMOTOR, Mercedes-Benz, MINI, MAZDA, McLaren, MASERATI, MAN, MG, MITSUBISHI, MAXUS, MORGAN, MUSTANG, MODERN AUTO, NISSAN, NIO, OPEL, ORA, OUSHANG, PEUGEOT, PORSCHE, Polestar, QOROS, Roewe, ROLLS ROYCE, RENAULT, SINOTRUK, SXACT, SKODA, SSANGYONG, SMART, SUZUKI, SUBARU, SAAB, SCANIA, SEAT, SWM, SANY, SILVER, SKYWORTH, TOYOTA, TESLA, TANK, Volkswagen, VOLVO, VOYAH, Wuling, WEY, XCMG, Xiaopeng Motors, XINYUAN, YUTONG, ZHONGTONG, ZOTYE, ZEEKER, ZHONGHUA, ZHINUO
