BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
HLCN/A
OSDUp to 8 OSDs
ROISupport
RTCSupport
S/N>52 dB
WDRDWDR
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF2.0
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3af)
TitleLanguage | Type | Download
ClientEZStation, APP
SafetyCE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/1.7" CMOS
U-codeSupport
Weight0.524 kg (1.16 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/9/18 2:05:38 | IPC86CEB-AF18KC-I0_HD_Image_4.png | png | Download
MaterialMetal + Plastic
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/O2/1
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Datasheet2026/7/7 15:27:33 | UNV IPC86CEB-AF18KC-I0 12MP Ultra HD Infrared Vandal-resistant Fisheye Fixed Dome Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
Lens TypeFixed
ProtocolsIPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

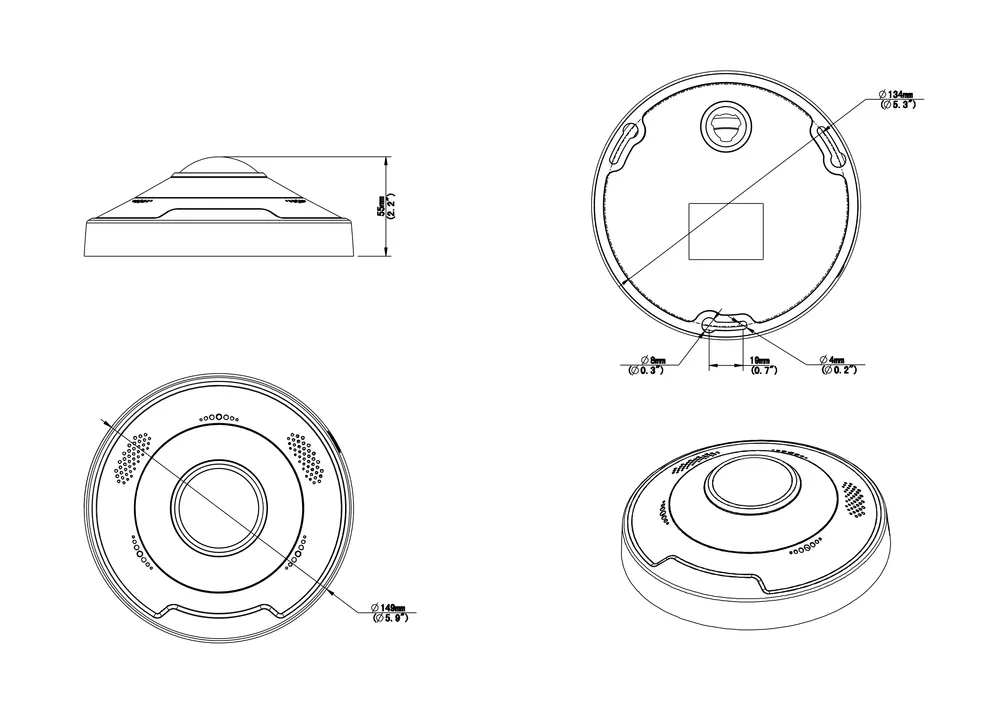

Dimensions2026/9/18 2:05:38 | IPC86CEB-AF18KC-I0_Dimensions_1.png | Download
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
Sub StreamFisheye View: 2000 × 1500@20 fps; 2000 × 2000@25 fps
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Main StreamFisheye View: 12 MP (4000 × 3000)@20 fps; 3000 × 3000@20 fps; 2560 × 2560@25 fps; Panorama View: 12 MP (4000 × 3000)@20 fps; 3000 × 2000@20/25 fps; 3000 × 1500@20/25 fps; PTZ View: 1920 × 1080@20/25 fps
Quick Guide2026/7/3 4:59:42 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1 × RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicBuilt-in dual-mic
Edge StorageMicroSD, up to 512 GB
Focal Length1.8 mm
Privacy MaskUp to 4 areas
Reset ButtonSupport
Third StreamFisheye View: D1 (720 × 576)@20/25 fps; CIF (352 × 288)@20/25 fps
Video Output1 BNC, impedance 75 Ω, amplitude 1 V [p-p]
Video StreamTriple streams
Audio Bitrate64 Kbps
Sampling Rate8 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution12 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Audio detection
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Surge Protection4 KV
Audio CompressionG.711U, G.711A
Field of View (D)180°
Field of View (H)180°
Field of View (V)180°
Hardware DecodingCeiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view
IR On/Off ControlAuto/Manual
Maximum Bitstream20
Min. IlluminationColor: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR
Power ConsumptionMax. 12.0 W
Software DecodingCeiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Supplemental LightIR
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)1.8 mm
Statistical AnalysisHeat map (Working with management platform)
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect)43.8 m (143.7 ft)
DORI Distance (Observe)17.5 m (57.4 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)4.4 m (14.4 ft)
DORI Distance (Recognize)8.8 m (28.9 ft)
GIPC-B6209.8.6.260417.zipEnglish | zip | Download
Illumination Distance (IR)15 m (49.3 ft)
Smart Intrusion PreventionCross line detection, intrusion detection
