BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)
HLCSupport
OSDUp to 10 OSDs * 4 Channel
ROISupport
S/N>56 dB
WDR130 dB
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.2 * 4
ClassDate | Title | Download
DefogDigital defog
PowerDC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3bt)
TitleLanguage | Type | Download
SafetyCE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/2.7" CMOS
U-codeSupport
Weight4.77 kg (10.52 lb）
Network1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet
HD Image2026/9/18 2:05:37 | IPC8645EA-ADZKM-I1_HD_Image_3.png | png | Download
MaterialMetal
SecurityPassword protection, Strong password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Alarm I/O3/2
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/7/22 8:53:01 | UNV IPC8645EA-ADZKM-I1 4 x 5MP MultiView Wise-ISP VF IR Dome Network Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Iris TypeFixed
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

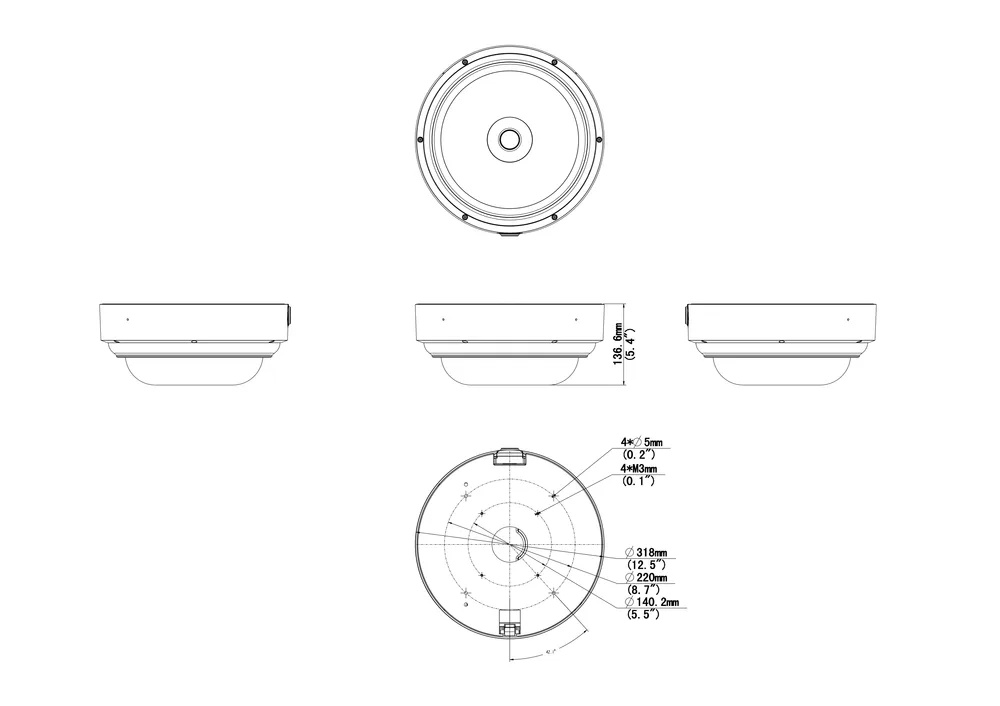

Dimensions2026/9/18 2:05:37 | IPC8645EA-ADZKM-I1_Dimensions_1.png | Download
ProtectionIP67 (IEC 60529), IK10 (IEC 62262)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Quick Guide2026/6/24 16:28:07 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length2.7 to 13.5 mm
Optical Zoom5X
Privacy MaskUp to 8 * 4Channel
Video StreamTriple streams
Corridor ModeSupport
Sampling Rate8 kHz
Two-way AudioSupport
Max Resolution4 × 5 MP
Video Bit Rate128 Kbps ~ 16 Mbps * 4Channel
Audio DetectionSupport
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceWires with cold-pressed terminal
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 65°, Rotate: 0° to 355°
Motion DetectionSupport
Surge Protection6 KV
Audio CompressionG.711U, G.711A
Field of View (D)(W) 143.4° to (T) 38.1°
Field of View (H)(W) 110.3° to (T) 31°
Field of View (V)(W) 57.1° to (T) 17.5°
IR On/Off ControlAuto/Manual
Maximum Bitstream20
Min. IlluminationColor: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR on
Power ConsumptionMax. 31 W
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Exception DetectionScene change, Defocus detection, Object removed, Object Left Behind
Storage Environment-40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: 5%~95% RH
Tampering DetectionSupport
Working Environment-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: 5%~95% RH
Built-in DC12V OutputSupport
Frame Rate-Sub StreamChannel × 4 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect)70.9 m to 247.5 m (232.5 ft. to 812.0 ft)
Frame Rate-Main StreamChannel × 4 5 MP (2880 × 1620), max. 30 fps; 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
DORI Distance (Observe)28.4 m to 99.0 m (93.2 ft. to 324.8 ft)
Frame Rate-Third StreamChannel × 4 D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
DORI Distance (Identify)7.1 m to 24.8 m (23.3 ft. to 81.4 ft)
DORI Distance (Recognize)14.2 m to 49.5 m (46.5 ft. to 162.4 ft)
Frame Rate RecommendationChannel × 4 2880 × 1620@30 fps + 1080P@30 fps + D1@30 fps
Illumination Distance (IR)50 m (164.0 ft)
QIPC-B5202.1.77.250106.zipEnglish | zip | Download
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
UMD (Ultra Motion Detection)Support
QIPC-B5202.1.77.250106 Release Notes.pdfEnglish | pdf | Download
