BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B)
HLCN/A
OSDUp to 8 OSDs
ROIUp to 8 areas
RTCSupport
S/N> 52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF2.0
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3af)
TitleLanguage | Type | Download
ClientEZStation, APP
SafetyCE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/2.5" CMOS
U-codeSupport
Weight0.44kg （0.97lb）
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/18 2:05:37 | IPC816SB-ADF16KMC-I1_HD_Image_4.png | png | Download
MaterialMetal + Plastic
SecurityPassword protection, Strong Password, HTTPS encryption, Export operation logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF, TLS 1.2
Smart IRSupport
Alarm I/O1/1
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Datasheet2026/7/28 16:25:08 | UNV IPC816SB-ADF16KMC-I1 6MP Infrared Intelligent Fixed-focal Fisheye Dome Network Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
Lens TypeFixed
ProtocolsIPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ICMP, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

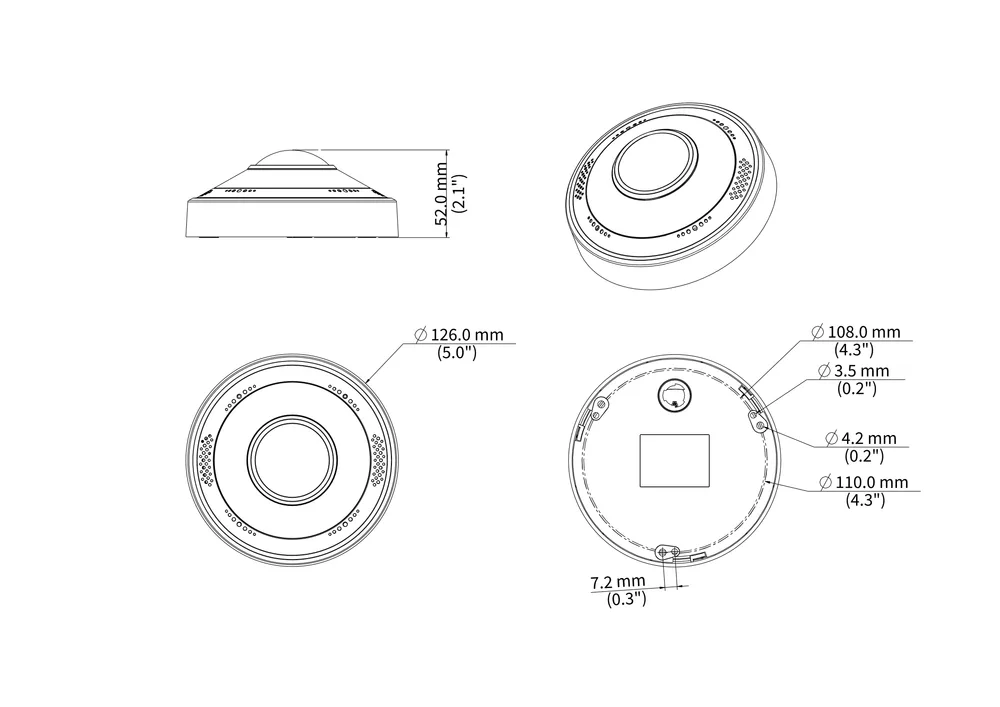

Dimensions2026/9/18 2:05:37 | IPC816SB-ADF16KMC-I1_Dimensions_1.png | Download
ProtectionIP67 (IEC 60529) IK10 (IEC 62262)
Sub StreamFisheye View: 1024 × 1024, max. 30 fps
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU)
Main StreamFisheye View: 6 MP (2560 × 2560), max. 30 fps; 2048 × 2048, max. 30 fps; 1440 × 1440, max. 30 fps; Panorama View: 6 MP (2560 × 2560), max. 30 fps; 2048 × 2048, max. 30 fps; 1440 × 1440, max. 30 fps; PTZ View: 1920 × 1080, max. 30 fps
Quick Guide2026/6/24 15:55:34 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Built-in MicBuilt-in dual-mic
Edge StorageMicroSD, up to 512 GB
Focal Length1.6 mm
Privacy MaskUp to 4 areas
Reset ButtonSupport
Third StreamFisheye View: D1 (720 × 576), max. 30 fps; CIF (352 × 288), max. 30 fps
Video OutputN/A
Video StreamOctuple Streams
Audio BitrateG.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Sampling RateG.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Max Resolution6 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection4 KV
Audio CompressionG.711U, G.711A, AAC-LC
Field of View (D)180 °
Field of View (H)180 °
Field of View (V)180 °
Hardware DecodingCeiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view
IR On/Off ControlAuto/Manual
Min. IlluminationColor: 0.005 Lux (F2.0, AGC ON), 0 Lux with IR
Power ConsumptionMax. 8.4 W
Software DecodingCeiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Supplemental LightIR
Image StabilizationN/A
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)1.6 mm
Statistical AnalysisHeat map (Working with management platform)
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API
DORI Distance (Detect)36.0 m (118.1 ft)
DORI Distance (Observe)14.4 m (47.2 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)3.6 m (11.8 ft)
DORI Distance (Recognize)7.2 m (23.6 ft)
GIPC-B6226.1.67.260702.zipEnglish | zip | Download
Illumination Distance (IR)15 m (49.2 ft)
Smart Intrusion PreventionCross line detection, intrusion detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
