BLCSupport
EMCFCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013
HLCN/A
OSDUp to 8 OSDs
ROISupport
S/N>52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF2.0
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3af)
TitleLanguage | Type | Download
ClientEZStation, APP
SafetyIEC 62368-1 EN 62368-1 UL 62368-1
Sensor1/2.8" CMOS
U-codeSupport
Weight0.36 kg (0.79 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/9/18 2:05:38 | IPC815SB-ADF14K-I0_HD_Image_4.png | png | Download
MaterialMetal + Plastic
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/O1/1
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Datasheet2026/6/23 5:12:39 | UNV IPC815SB-ADF14K-I0 5MP Panoramic IR Fixed Fisheye Network Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
Lens TypeFixed
ProtocolsIPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

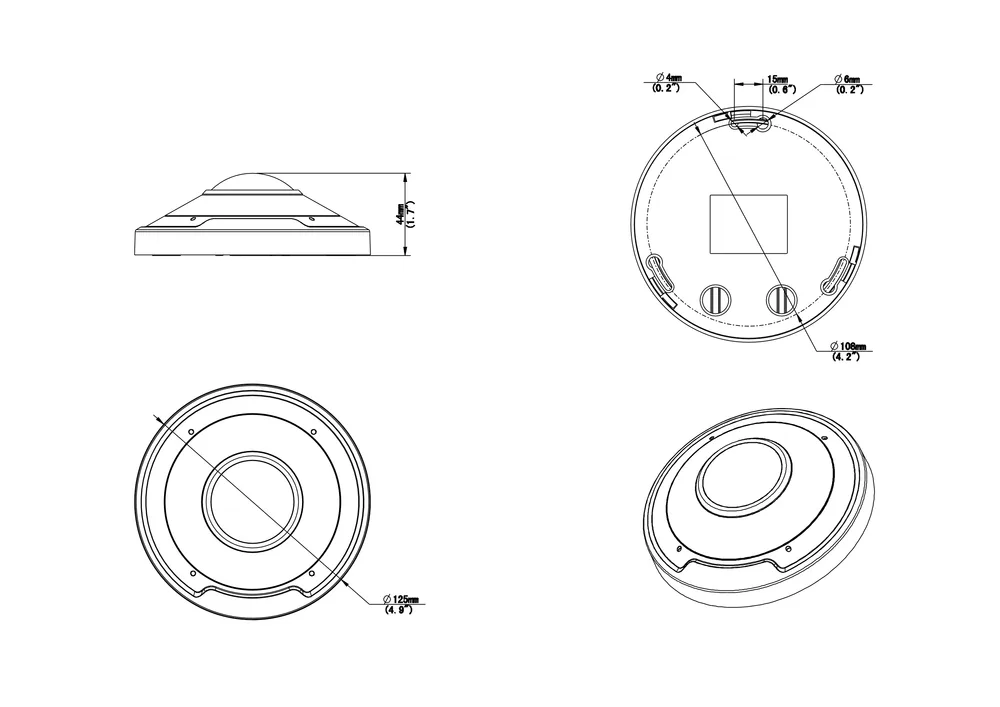

Dimensions2026/9/18 2:05:38 | IPC815SB-ADF14K-I0_Dimensions_1.png | Download
ProtectionIP66 (IEC 60529-2013) IK10 (IEC 62262:2002)
Sub StreamFisheye View: 1080P (1920 × 1080): max. 30 fps; 720P (1280 × 720), max. 30 fps
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Main Stream5 MP (2592 × 1944), max. 30 fps
Quick Guide2026/6/24 15:55:34 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicBuilt-in dual-mic
Edge StorageMicroSD, up to 512 GB
Focal Length1.4 mm
Privacy MaskUp to 4 areas
Reset ButtonSupport
Third StreamFisheye View: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Video OutputN/A
Video StreamTriple streams
Audio BitrateG.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Sampling RateG.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution5 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Audio detection
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerN/A
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Surge Protection4 KV
Audio CompressionG.711U, G.711A, AAC-LC
Field of View (D)180°
Field of View (H)180°
Field of View (V)180°
Hardware DecodingN/A
IR On/Off ControlAuto/Manual
Min. IlluminationColor: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR
Power ConsumptionMax. 8.5 W
Software DecodingCeiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye+4PTZ, fisheye + 8PTZ,360° panorama + 6PTZ Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye+4PTZ, fisheye + 8PTZ,360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Supplemental LightIR
Image StabilizationN/A
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)1.4 mm
Statistical AnalysisHeat map (Working with management platform)
Compatible IntegrationAPI, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
DORI Distance (Detect)31.5 m (103.4 ft)
DORI Distance (Observe)12.6 m (41.3 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)3.2 m (10.5 ft)
DORI Distance (Recognize)6.3 m (20.7 ft)
GIPC-B6203.17.8.260814.zipEnglish | zip | Download
Illumination Distance (IR)10 m (32.8 ft)
