BLCSupport
EMCCE-EMC (EN 55032:2015+A11:2020+A1:2020,EN 61000-3-3:2013+A1:2019+A2:2021,EN IEC 61000-3-2: 2019+A1: 2021, EN 50130-4:2011+A1:2014 FCC（47 CFR Part 15, Subpart B，ANSI C63.4-2014）
HLCSupport
OSDUp to 8 OSDs
P/NSupport
ROISupport
S/N＞56dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF1.2
WIFISupport
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±25%), PoE+ (IEEE 802.3at)
ClientEZStation, UNV-Link, UNV-Link Pro
SafetyUL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) CAN/CSA C22.2 NO. 62368-1-14, 2nd Ed., Issue Date:2014-12-01 EN IEC 62368-1:2020+A11:2020
Sensor1/2.7" CMOS
U-codeSupport
Weight780 g (1.72 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/7 15:18:32 | IPC6215SR-X5PAEW-VG_HD_Image_3.png | png | Download
MaterialPlastic
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/O1/1
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/6/23 18:19:21 | UNV IPC6215SR-X5PAEW-VG 5MP WDR Starlight IR Network MiniPTZ Dome Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Pan Range350°
Pan Speed0.1°/s to 60°/s
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

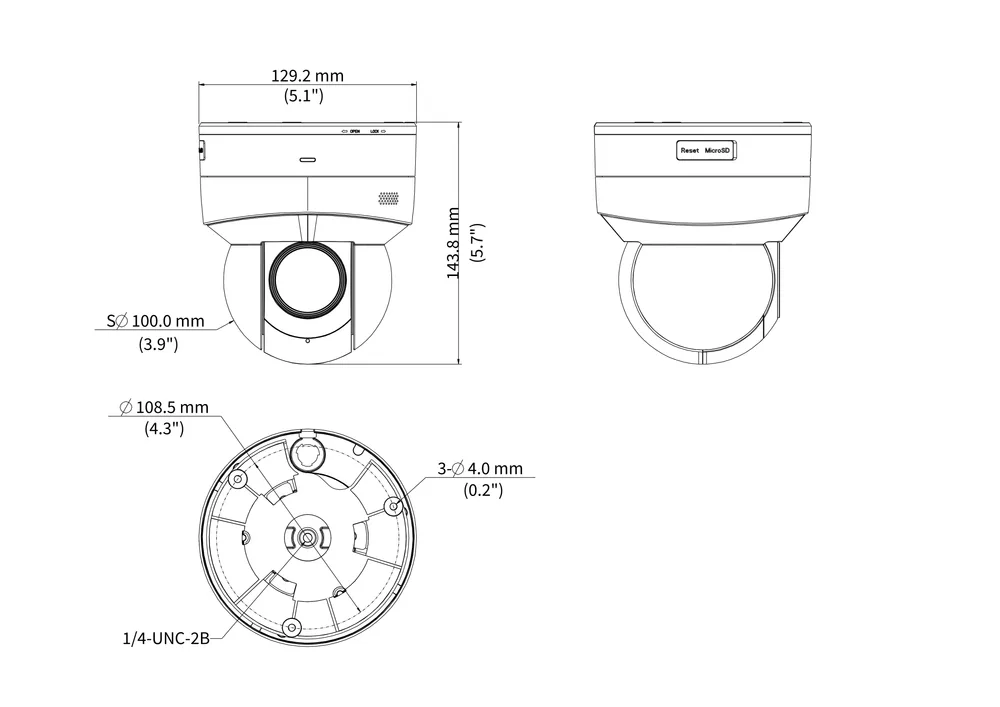

Dimensions2026/9/7 15:18:32 | IPC6215SR-X5PAEW-VG_Dimensions_1.png | Download
Frame RateMain Stream: 5 MP (2880 × 1620), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps
Tilt Range0° to 90°
Tilt Speed0.1°/s to 50°/s
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Quick Guide2026/6/24 15:51:21 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1 * RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length2.7 to 13.5 mm
Optical Zoom5X
Privacy Mask24 areas, up to 4 areas per scene
Reset ButtonSupport
Video StreamTriple streams
Audio Bitrate128 Kbps
Home PositionSupport
Preset Patrol16 patrols, up to 64 presets for each patrol
Sampling Rate16 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Transmit Power802.11b: 17±1.5 dBm@11 Mbps802.11g: 16±1.5 dBm@54 Mbps802.11n: 16±1.5 dBm@MCS7802.11ax: 16±1.5 dBm@MCS9
Video Bit Rate128 Kbps to 16 Mbps
Wi-Fi Security64/128-bit WEP, WPA-PSK/WPA2-PSK
Basic DetectionMotion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection
Frequency Range2.4 GHz to 2.4835 GHz
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication
Patrol Stay Time1800 s to 3600 s
Surge Protection4 KV
Audio CompressionG.711U, G.711A
Channel Bandwidth20/40 MHz Support
Field of View (D)129.0° to 39.8°
Field of View (H)104.9° to 30.6°
Field of View (V)55.4° to 17.7°
Min. IlluminationColor: 0.003 Lux (F1.2, AGC ON), 0 Lux with IR
Number of Presets1024
Power Consumption18 W
Transmission Rate802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps802.11ax: up to 270 Mbps
Video CompressionUltra 265, H.265, H.264, MJPEG
Wireless StandardsIEEE802.11b/g/n
Exception DetectionObject removed, Object Left Behind, Scene change, Defocus detection
Receive Sensitivity802.11b: -76 dBm@11 Mbps (Typical) 802.11g: -65 dBm@54 Mbps (Typical) 802.11n: -64 dBm@MCS7_HT20 (Typical)
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-10 ℃ to 50 ℃ (14 ℉ to 122 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2.7 to 13.5 mm
Light On/Off ControlAuto/Manual
Built-in DC12V OutputSupport
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)70.9 m to 247.5 m (232.5 ft. to 812.0 ft)
DORI Distance (Observe)28.4 m to 99.0 m (93.2 ft. to 324.8 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)7.1 m to 24.8 m (23.3 ft. to 81.4 ft)
DORI Distance (Recognize)14.2 m to 49.5 m (46.5 ft. to 162.4 ft)
Illumination Distance (IR)30 m (98.4 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
