BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)
HLCSupport
OSDUp to 4 OSDs
ROISupport
S/N>52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.6
WIFIN/A
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3af)
TitleLanguage | Type | Download
ClientUNV-Link, UNV-Link Pro, EZStation
SafetyCE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/3.0" CMOS
U-codeSupport
Weight0.32 kg (0.71 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/8/24 10:27:33 | IPC3614SR-ADF40KMC-DL-H_HD_Image_3.png | png | Download
MaterialMetal
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/ON/A
Audio I/ON/A
Datasheet2026/6/23 19:48:44 | UNV IPC3614SR-ADF40KMC-DL-H 4MP HD ColorHunter IR Fixed Eyeball Network Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

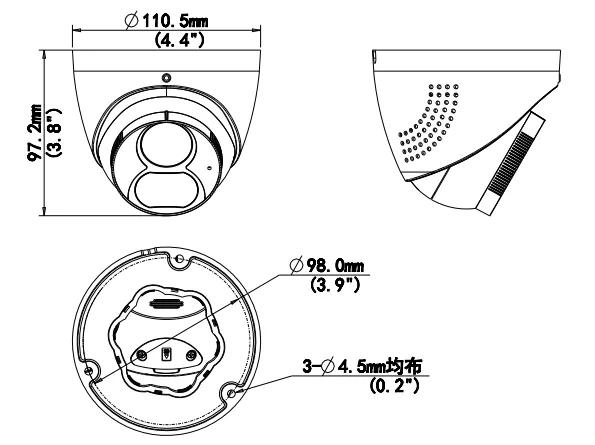

Dimensions2026/8/24 10:27:33 | IPC3614SR-ADF40KMC-DL-H_Dimensions_1.png | Download
Frame RateMain Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
ProtectionIP67 (IEC 60529)
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Quick Guide2026/6/24 15:49:34 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length4.0 mm
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video OutputN/A
Video StreamDual streams
Audio Bitrate64 Kbps
Sampling Rate8 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution4 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionCross line, Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Surge Protection4 KV
Audio CompressionG.711U, G.711A
Field of View (D)85.1°
Field of View (H)79.0°
Field of View (V)42.3°
Min. IlluminationColor: 0.003 Lux (F1.6, AGC ON), 0 Lux with light
Power ConsumptionMax. 8.0 W
Release Notes.pdfEnglish | pdf | Download
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Supplemental LightDual light
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language4 Languages: English, Russian, Spanish, Vietnamese
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)4 mm
Light On/Off ControlAuto/Manual
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)90.0 m (295.3 ft)
DORI Distance (Observe)36.0 m (118.1 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)9.0 m (29.5 ft)
DORI Distance (Recognize)18.0 m (59.1 ft)
Illumination Distance (IR)30 m (98.4 ft)
DIPC-B1230.7.3.C00055.241220.zipEnglish | zip | Download
Illumination Distance (Warm Light)30 m (98.4 ft)
