BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC-SDoC (47 CFR Part15, Subpart B)
HLCSupport
OSDUp to 8 OSDs
ROIUp to 8 areas
RTCSupport
S/N>52 dB
WDR130 dB
FlipFlip vertical, Flip horizontal, Normal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.6
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±25%), PoE (IEEE 802.3af)
ClientUNV-Link, UNV-Link Pro, EZStation
SafetyCE LVD (EN IEC 62368-1) UL (UL 62368-1)
Sensor1/2.8" CMOS
U-codeSupport
Weight0.95 kg (2.09 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/7 15:53:35 | IPC3232SA-AHDZK-PI-I1_HD_Image_3.png | png | Download
MaterialMetal
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Alarm I/O1/1
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/7/7 15:57:39 | UNV IPC3232SA-AHDZK-PI-I1 2MP WDR LightHunter IR Network Dome Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Iris TypeP-iris
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

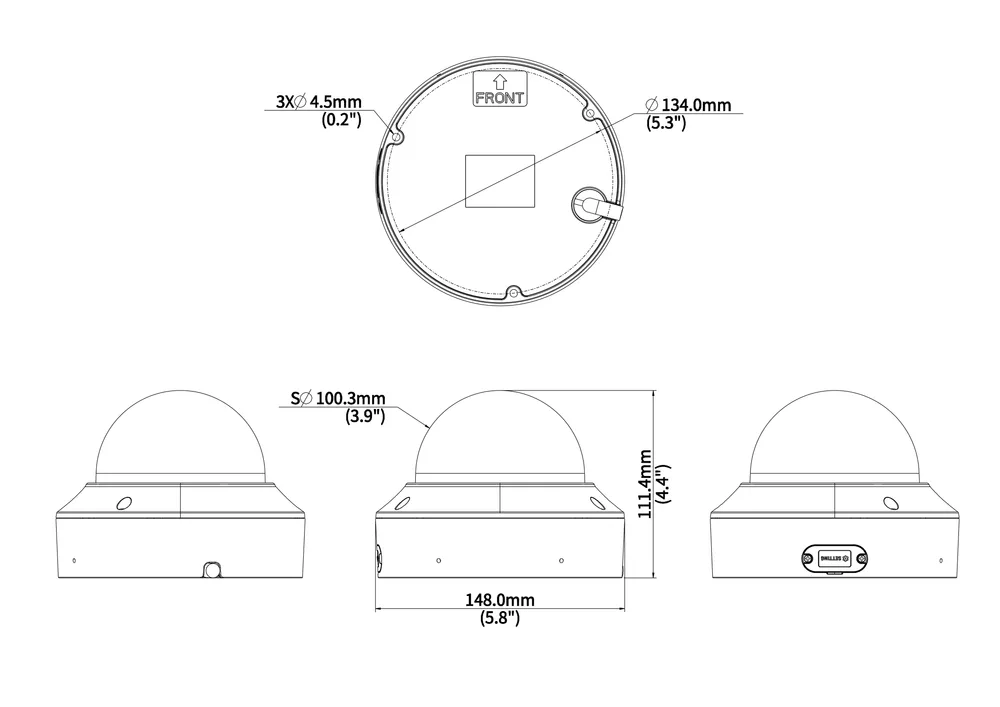

Dimensions2026/9/7 15:53:35 | IPC3232SA-AHDZK-PI-I1_Dimensions_1.png | Download
ProtectionIP67 (IEC 60529) IK10 (IEC 62262)
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Quick Guide2026/7/25 4:24:21 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1 × RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicBuilt-in dual-mic
Edge StorageMicroSD, up to 512 GB
Focal Length2.7 to 13.5 mm
Optical Zoom5X
Privacy MaskUp to 8 areas (8 blacks / 8 mosaics)
Reset ButtonSupport
Video StreamTriple streams
Audio Bitrate128 Kbps
Corridor ModeSupport
Sampling Rate16KHZ
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution2 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Audio detection, Tampering alarm, Ultra motion detection
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Adjustment AnglePan: 0° to 355°, Tilt: 0° to 70°, Rotate: 0° to 355°
Built-in SpeakerN/A
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection6 KV
Audio CompressionG.711U, G.711A
Field of View (D)117.4° to 37.2°
Field of View (H)99.2° to 32.3°
Field of View (V)53.6° to 18°
IR On/Off ControlAuto/Manual
Maximum Bitstream35
Min. IlluminationColor: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR
Power ConsumptionMax. 8 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Supplemental LightIR
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2.7 to 13.5 mm
Built-in DC12V OutputSupport
Frame Rate-Sub Stream1080P (1920 × 1080), max. 60 fps
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect)51.2 m to 158.3 m (168.0 ft. to 519.3 ft)
Frame Rate-Main Stream1080P (1920 × 1080), max. 60 fps
DORI Distance (Observe)20.5 m to 63.3 m (67.2 ft. to 207.7 ft)
Digital Noise Reduction2D/3D DNR
Frame Rate-Third StreamD1 (720 × 576), max. 60 fps
DORI Distance (Identify)5.1 m to 15.8 m (16.7 ft. to 51.8 ft)
DORI Distance (Recognize)10.2 m to 31.7 m (33.5 ft. to 104.0 ft)
Illumination Distance (IR)40 m (131.2 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
UMD (Ultra Motion Detection)Support
