BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
HLCN/A
OSDUp to 8 OSDs
ROIUp to 8 areas
S/N>52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.6
WIFIN/A
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3af) Power consumption: Max. 6.0 W
TitleLanguage | Type | Download
ClientUNV-Link, UNV-Link Pro, EZStation
SafetyCE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/3.0" CMOS
U-codeSupport
Weight0.37 kg (0.82 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/8/24 10:27:50 | IPC318SR3-ADF28KM-G_HD_Image_3.png | png | Download
MaterialMetal
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/ON/A
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Datasheet2026/6/23 12:25:01 | UNV IPC318SR3-ADF28KM-G 8MP HD Intelligent LightHunter IR Fixed Mini Dome Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
Lens TypeFixed
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

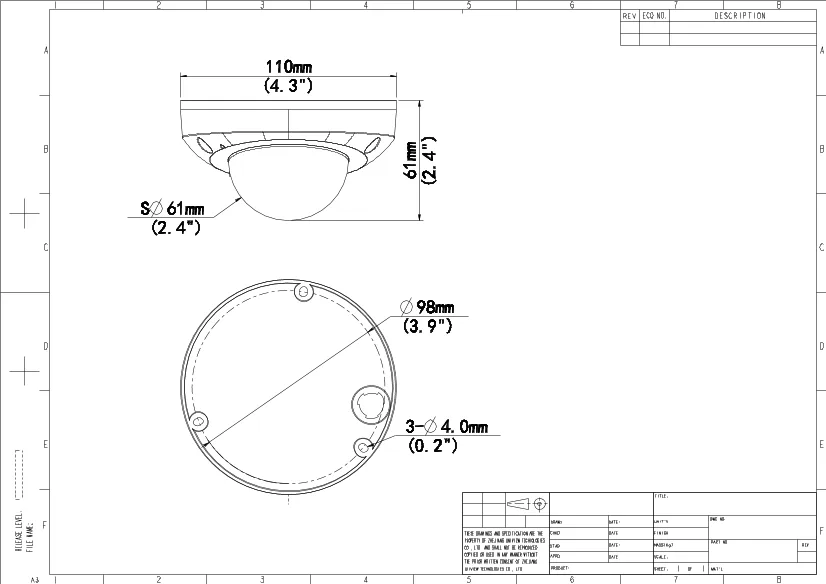

Dimensions2026/8/24 10:27:50 | IPC318SR3-ADF28KM-G_Dimensions_1.png | Download
Frame RateMain Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
ProtectionIP67 (IEC 60529) IK10 (IEC 62262)
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Quick Guide2026/7/3 4:58:03 | Quick Guide.pdf | English | pdf | Preview | Download
RecognitionN/A
Serial PortN/A
SuppressionSupport
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length2.8 mm
Privacy MaskUp to 4 areas
Reset ButtonN/A
Video OutputN/A
Video StreamTriple streams
Audio Bitrate64 Kbps
Sampling Rate8 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution8 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Adjustment AnglePan: 0° to 90°, Tilt: 0° to 68°, Rotate: 0° to 360°
Built-in SpeakerN/A
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Surge Protection4 KV
Audio CompressionG.711U, G.711A
Field of View (D)111.1°
Field of View (H)101.1°
Field of View (V)55.3°
Min. IlluminationColor: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Image StabilizationN/A
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2.8 mm
Light On/Off ControlAuto/Manual
Statistical AnalysisN/A
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)63.0 m (206.7 ft)
DORI Distance (Observe)25.2 m (82.7 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)6.3 m (20.7 ft)
DORI Distance (Recognize)12.6 m (41.3 ft)
GIPC-B6202.17.7.250508.zipEnglish | zip | Download
Illumination Distance (IR)30 m (98.4 ft)
Smart Intrusion PreventionN/A
GIPC-B6202.15.11.240529.zipEnglish | zip | Download
GIPC-B6202.15.11.240529 Release Notes.pdfEnglish | pdf | Download
