BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) FCC (FCC 47 CFR part15 B)
HLCSupport
OSDUp to 8 OSDs
ROISupport
S/N> 56 dB
WDR130 dB
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.6
WIFIN/A
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3af)
ClientEZStation, APP
SafetyCE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/2.9" CMOS
U-codeSupport
Weight0.46 kg (1.01 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/18 2:05:38 | IPC314SB-ADF28KMC-DL-I1_HD_Image_3.png | png | Download
MaterialMetal
Smart IRSupport
Alarm I/O1/1
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Datasheet2026/6/11 16:47:24 | UNV IPC314SB-ADF28KMC-DL-I1 4MP HD Intelligent Light and Audible Warning Fixed Mini Dome Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
Lens TypeFixed
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

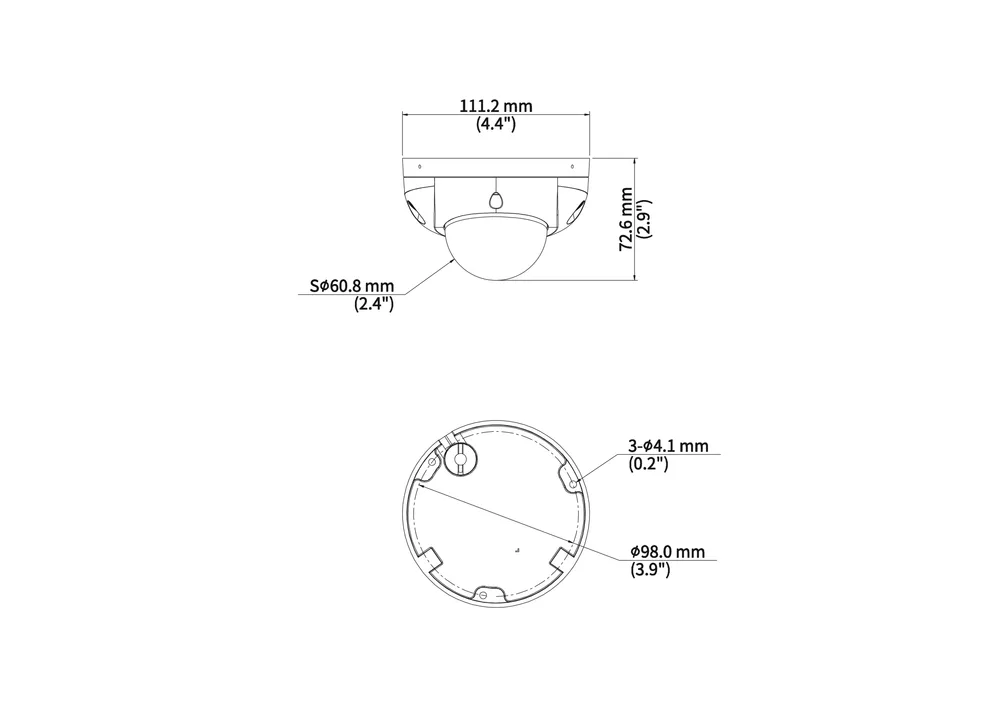

Dimensions2026/9/18 2:05:38 | IPC314SB-ADF28KMC-DL-I1_Dimensions_1.png | Download
ProtectionIP67 (IEC 60529) IK10 (IEC 62262)
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863) ; WEEE (2012/19/EU)
Quick Guide2026/7/3 5:09:01 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
User Manual2026/9/14 8:59:26 | UNV-Network Camera User Manual(New UI).pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-in MicBuilt-in dual-mic
Edge StorageMicroSD, up to 512 GB
Focal Length2.8 mm
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video OutputN/A
Video StreamTriple streams
Audio BitrateG.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Sampling RateG.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution4 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Adjustment AnglePan:-48° to 48°, Tilt: 0° to 80°, Rotate: 0° to 360°
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection4 KV
Audio CompressionG.711U, G.711A, AAC-LC
Field of View (D)117.7°
Field of View (H)101.1°
Field of View (V)57.1°
IR On/Off ControlAuto/Manual
Min. IlluminationColor: 0.002 Lux (F1.6, AGC ON), 0 Lux with light
Power ConsumptionMax. 8.5 W
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Supplemental LightDual light
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2.8 mm
Light On/Off ControlAuto/Manual
Statistical AnalysisN/A
Frame Rate-Sub Stream1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect)63.0 m (206.7 ft)
Frame Rate-Main Stream4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps
DORI Distance (Observe)25.2 m (82.7 ft)
Digital Noise Reduction2D/3D DNR
Frame Rate-Third StreamD1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
DORI Distance (Identify)6.3 m (20.7 ft)
DORI Distance (Recognize)12.6 m (41.3 ft)
Illumination Distance (IR)30 m (98.4 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Illumination Distance (Warm Light)30 m (98.4 ft)
