BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B)
HLCSupport
OSDUp to 6 OSDs (include two extra OSDs that only be used for elevator status display)
ROISupport
S/N>52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.6
WIFIN/A
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3af)
ClientEZStation, APP
SafetyCE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/2.8" CMOS
U-codeSupport
Weight0.25 kg (0.55 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/9/7 14:34:12 | IPC312LP-ADF20KC-DL_HD_Image_3.png | png | Download
MaterialPlastic
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/O1/1
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Datasheet2026/9/3 16:14:15 | UNV IPC312LP-ADF20KC-DL 2MP HD Active Deterrence Mini Dome Network Camera for elevator.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
Lens TypeFixed
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

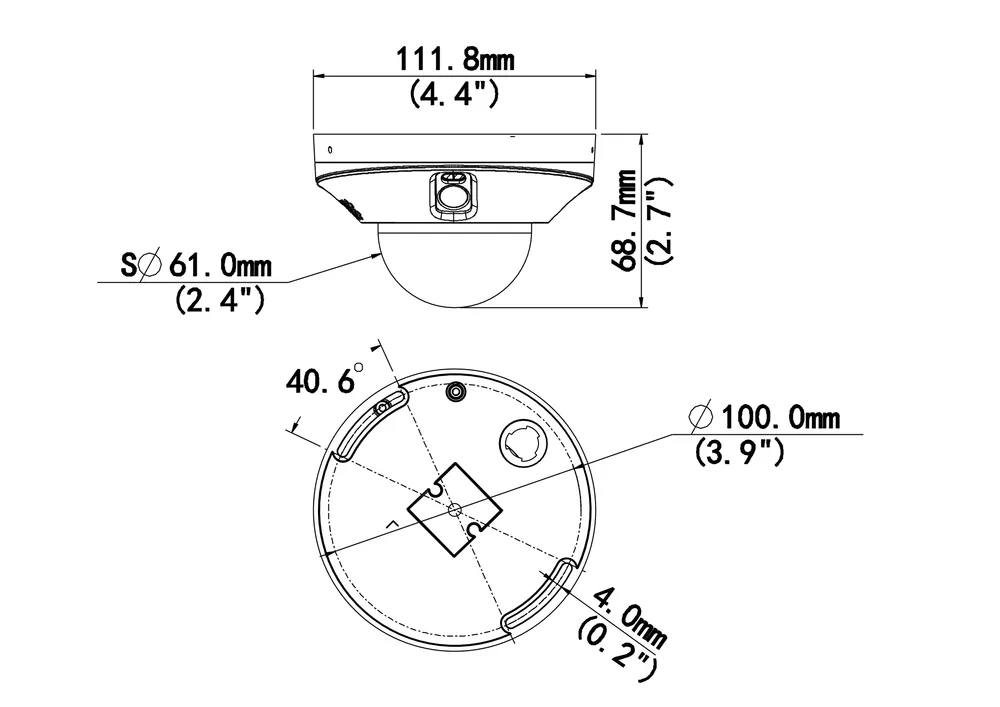

Dimensions2026/9/7 14:34:12 | IPC312LP-ADF20KC-DL_Dimensions_1.png | Download
Frame RateMain Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Quick Guide2026/7/3 5:07:53 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length2.0 mm
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video OutputN/A
Video StreamDual streams
Audio Bitrate64 Kbps
Sampling Rate8 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution2 MP
Video Bit Rate128 Kbps to 6144 Kbps
Basic DetectionCross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Audio detection, Tampering alarm
Network StorageANR, NAS (NFS)
People CountingN/A
Power InterfaceØ5.5 mm coaxial power plug
Adjustment AngleTilt: 0° to 68°, Rotate: 3° to 360°
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection4 KV
Audio CompressionG.711U, G.711A
Field of View (D)144.6°
Field of View (H)126°
Field of View (V)71.0°
IR On/Off ControlAuto/Manual
Min. IlluminationColor: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR
Power ConsumptionMax. 5.5 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Event for ElevatorTOF tampering detection, Elevator status display: current floor, status: stop/down/up/speed, Temperature and humidity detection
H.264 Code ProfileBaseline profile, Main profile, High profile
Supplemental LightIR
Image StabilizationN/A
Storage Environment-10 ℃ to 40 ℃ (14 ℉ to 104 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language4 Languages: English, Russian, Spanish, Vietnamese
Working Environment-10 ℃ to 40 ℃ (14 ℉ to 104 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2 mm
Statistical AnalysisN/A
Compatible IntegrationAPI, SDK, ONVIF (Profile S, Profile G, Profile T)
DORI Distance (Detect)31.0 m (101.8 ft)
DORI Distance (Observe)12.4 m (40.7 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)3.1 m (10.2 ft)
DORI Distance (Recognize)6.2 m (20.4 ft)
Illumination Distance (IR)10 m (32.8 ft)
Smart Intrusion PreventionN/A
Elevator Entrance DetectionSupport (based on target classification: motorcycle and bicycle)
