BLCSupport
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
HLCSupport
OSDUp to 8 OSDs
ROISupport
S/N>52 dB
WDRDWDR
FlipN/A
IrisF1.0
WIFIN/A
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3af)
TitleLanguage | Type | Download
ClientEZStation, APP
SafetyCE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Sensor1/2.9" CMOS
U-codeSupport
Weight0.95 kg (2.09 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/9/18 2:05:38 | IPC2K24SE-ADF40KMC-WL-I0_HD_Image_5.png | png | Download
MaterialMetal
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Alarm I/O1/1
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Datasheet2026/6/23 9:34:19 | UNV IPC2K24SE-ADF40KMC-WL-I0 4MP HD ColorHunter Wide Angle Fixed Bullet Network Camera.pdf | English | pdf | Preview | Download
DewarpingN/A
Iris TypeFixed
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

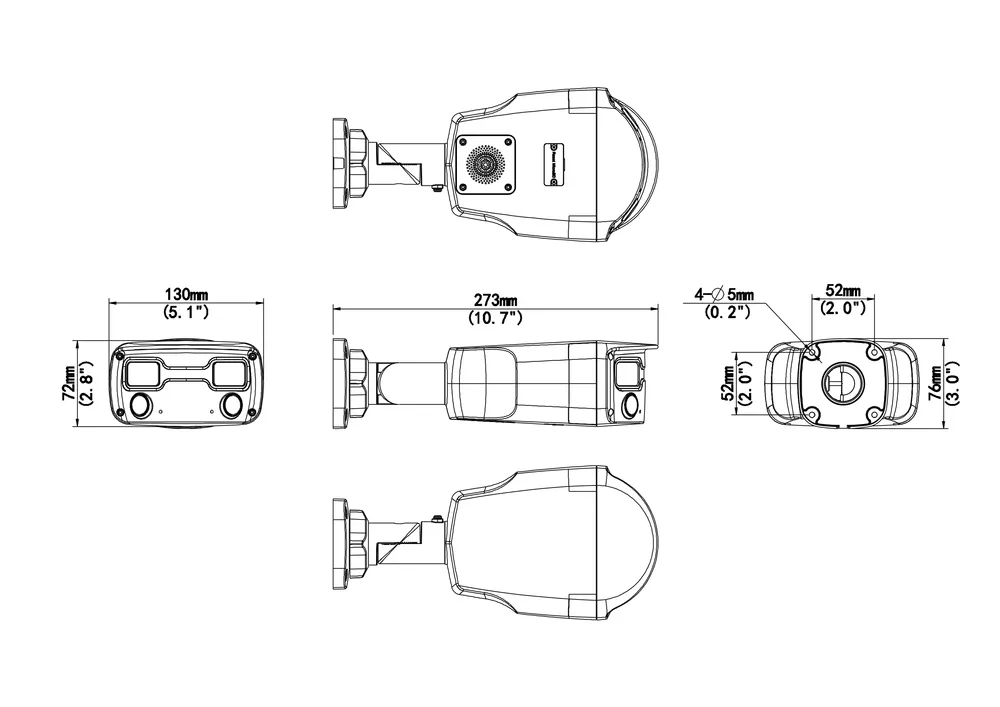

Dimensions2026/9/18 2:05:38 | IPC2K24SE-ADF40KMC-WL-I0_Dimensions_1.png | Download
Frame RateMain Stream: 4 MP (3840 × 1080), max. 25 fps (human body detection off) Sub Stream: 1920 × 540, max. 25 fps
ProtectionIP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Quick Guide2026/7/2 4:07:57 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-in MicBuilt-in dual-mic
Edge StorageMicroSD, up to 512 GB
Focal Length2 × 4.0 mm
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video OutputN/A
Video StreamDouble streams
Audio BitrateG.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Sampling RateG.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Max Resolution4 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionHuman body detection, Motion detection, Tampering alarm, Audio detection
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection4 KV
Audio CompressionG.711U, G.711A, AAC-LC
Field of View (D)180.1°±10°
Field of View (H)160.0°±10°
Field of View (V)43.2°
Min. IlluminationColor: 0.0005 Lux (F1.0, AGC ON)
Power ConsumptionMax. 6.5 W
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Smart IlluminationSupport
Supplemental LightWarm light
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)4 mm
Light On/Off ControlAuto/Manual
Statistical AnalysisN/A
Compatible IntegrationAPI, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)
DORI Distance (Detect)64.3 m (211.0 ft)
DORI Distance (Observe)25.7 m (84.3 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)6.4 m (21.0 ft)
DORI Distance (Recognize)12.9 m (42.3 ft)
GIPC-B6208.1.82.240522.zipEnglish | zip | Download
Smart Intrusion PreventionN/A
Illumination Distance (Warm Light)30 m (98.4 ft)
GIPC-B6208.1.82.240522 Release Notes.pdfEnglish | pdf | Download
