BLCSupport
EISSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC-SDoC (47 CFR Part15, Subpart B)
HLCSupport
OSDUp to 8 OSDs
P/NSupport
ROIUp to 8 areas
RTCSupport
S/N> 56 dB
WDR130 dB
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.2
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±25%), PoE (IEEE 802.3af)
TitleLanguage | Type | Download
ClientUNV-Link, UNV-Link Pro, EZStation
SafetyCE-LVD (EN IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/1.8" CMOS
U-codeSupport
Weight1 kg (2.2 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/7 14:44:41 | IPC2B28SA-ADZK-PI-I2A_HD_Image_3.png | png | Download
MaterialMetal + Plastic
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Alarm I/O1/1
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/9/1 18:03:40 | UNV IPC2B28SA-ADZK-PI-I2A 8MP WDR LightHunter IR Network Bullet Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Iris TypeP-iris
ProtocolsIGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP, FTP
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

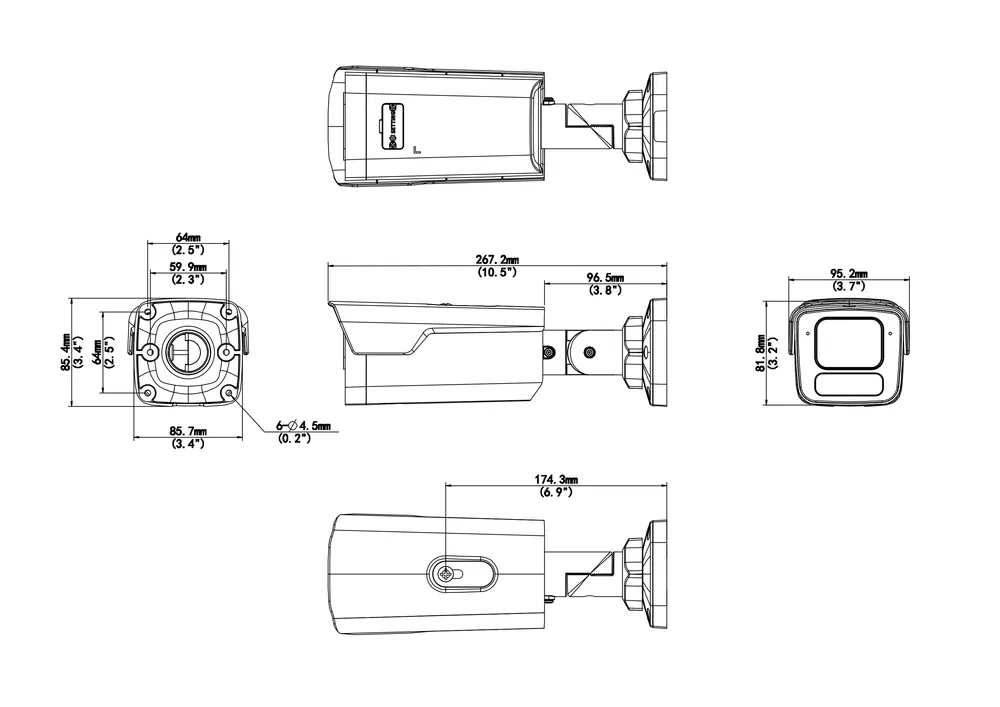

Dimensions2026/9/7 14:44:41 | IPC2B28SA-ADZK-PI-I2A_Dimensions_1.png | Download
ProtectionIP67 (IEC 60529) IK10 (IEC 62262)
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863) WEEE (2012/19/EU)
Quick Guide2026/7/25 4:34:08 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1 × RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicBuilt-in dual-mic
Edge StorageMicroSD, up to 512 GB
Focal Length2.7 to 13.5 mm
Optical Zoom5X
Privacy MaskUp to 8 areas (8 blacks/ 8 mosaics)
Road TrafficSupport capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode available: High/Low pole
Video StreamFive streams
Audio Bitrate128 Kbps
Corridor ModeSupport
Sampling Rate8 kHz, 16 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Max Resolution8 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection6 KV
Audio CompressionG.711U, G.711A, AAC-LC
Field of View (D)128.8° to 60.4°
Field of View (H)104.7° to 49.1°
Field of View (V)56.4° to 27.9°
IR On/Off ControlAuto/Manual
Maximum Bitstream35
Min. IlluminationColor: 0.001 Lux (F1.2, AGC ON), 0 Lux with IR
Power ConsumptionMax. 12.5 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Supplemental LightIR
Exception DetectionObject removed, Object Left Behind, Scene change, Defocus detection
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2.7 to 13.5 mm
Built-in DC12V OutputSupport
Frame Rate-Sub Stream1080P (1920 × 1080), max. 30 fps
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect)98.6 m to 209.9 m (323.3 ft. to 688.7 ft)
Frame Rate-Main Stream8 MP (3840 × 2160), max. 30 fps
DORI Distance (Observe)39.4 m to 84.0 m (129.3 ft. to 275.5 ft)
Digital Noise Reduction2D/3D DNR
Frame Rate-Fifth StreamD1 (720 × 576), max. 30 fps
Frame Rate-Third StreamD1 (720 × 576), max. 30 fps
DORI Distance (Identify)9.9 m to 21.0 m (32.3 ft. to 68.9 ft)
Frame Rate-Fourth StreamD1 (720 × 576), max. 30 fps
DORI Distance (Recognize)19.7 m to 42.0 m (64.7 ft. to 137.7 ft)
Illumination Distance (IR)80 m (262.5 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
CIPC-B2202.1.110.241212.zipEnglish | zip | Download
UMD (Ultra Motion Detection)Support
