BLCSupport
HLCSupport
OSDUp to 8 OSDs
ROISupport
S/N> 52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.6
WIFIN/A
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%
TitleLanguage | Type | Download
ClientUNV-Link, UNV-Link Pro, EZStation
Sensor1/3.0" CMOS
U-codeSupport
Weight0.47 kg (1.04 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/18 2:05:41 | IPC2A14LP-ADF40KC-4G-US_HD_Image_3.png | png | Download
MaterialGraphene + Metal
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/O1/1
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Datasheet2026/6/22 21:24:57 | UNV IPC2A14LP-ADF40(60)KC-4G-US 4MP HD 4G ColorHunter Fixed Bullet Network Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
Lens TypeFixed
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SMTP, 802.1x, SSL/TLS, SNMP, SSH
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

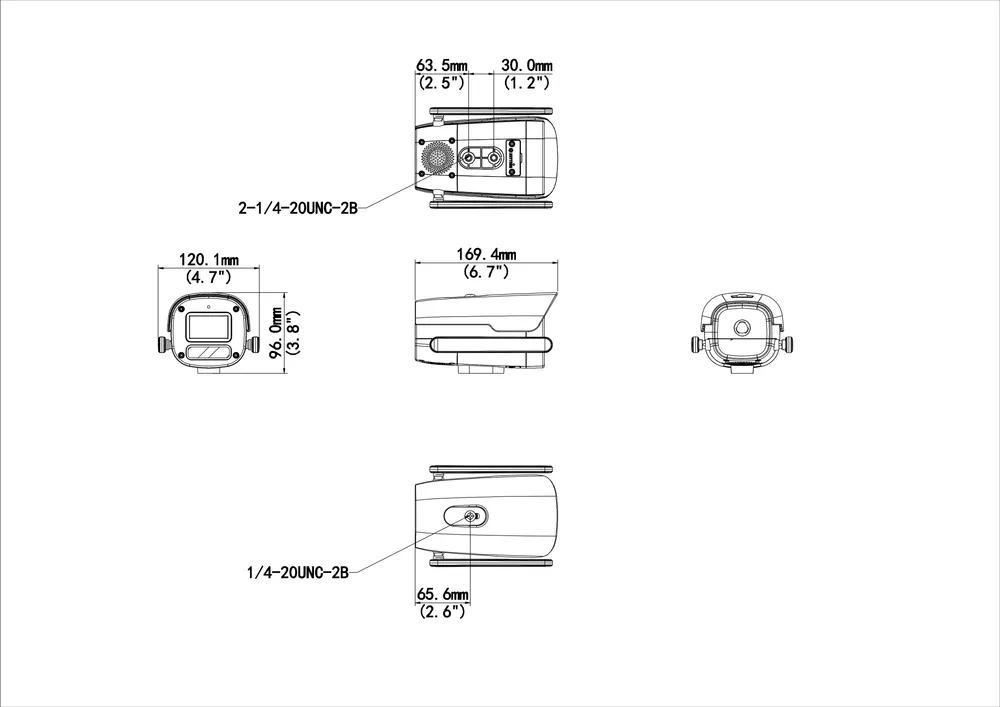

Dimensions2026/9/18 2:05:41 | IPC2A14LP-ADF40KC-4G-US_Dimensions_1.png | Download
Frame RateMain Stream: 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
ProtectionIP67 (IEC 60529)
Wavelength850 nm
Quick Guide2026/6/24 16:27:56 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
4G Card TypeNano-SIM
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length4.0 mm | 6.0 mm
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video OutputN/A
Video StreamDual streams
Audio Bitrate64 Kbps
Sampling Rate8 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution4 MP
Video Bit Rate128 Kbps to 2048 Kbps
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection
Network StorageANR
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection4 KV
Audio CompressionG.711U, G.711A
Field of View (D)85.1° | 56.7°
Field of View (H)79.0° | 49.6°
Field of View (V)42.3° | 26.2°
IR On/Off ControlAuto/Manual
Min. IlluminationColor: 0.003 Lux (F1.6, AGC ON), 0 Lux with light
Power ConsumptionMax. 9.0 W
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Supplemental LightDual light
4G Network StandardLTE-FDD
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
4G Network FrequencyLTE-FDD: Band 2/4/5/12/13/14/66/71
DORI Distance (Lens)4 mm | 6 mm
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)63.0 m (206.7 ft.) | 90.0 m (295.3 ft.)
DORI Distance (Observe)25.2 m (82.7 ft.) | 36.0 m (118.1 ft.)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)6.3 m (20.7 ft.) | 9.0 m (29.5 ft.)
DORI Distance (Recognize)12.6 m (41.3 ft.) | 18.0 m (59.1 ft.)
Illumination Distance (IR)50 m (164.0 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
GIPC-B6202.13.83.250427.zipEnglish | zip | Download
Illumination Distance (Warm Light)30 m (98.4 ft)
GIPC-B6202.13.83.250427 Release Notes.pdfEnglish | pdf | Download
