BLCSupport
EISSupport
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
HLCSupport
OSDUp to 10 OSDs
P/NSupport
ROISupport
RTCSupport
S/N>56 dB
WDR140 dB
FlipNormal&Flip Vertical&Flip Horizontal&180°&90°Clockwise&90°Anti-clockwise
IrisF1.2 | F1.6
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±25%), PoE+ (IEEE 802.3at)
ClientEZStation, UNV-Link, UNV-Link Pro
HeaterSupport
SafetyCE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 3rd Ed., 2021-10-22 )
Sensor1/1.8" CMOS
Weight1.92 kg (4.23 lb)
Network1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/18 2:05:37 | IPC268EA-AHDZK-I1_HD_Image_5.png | png | Download
MaterialSun shield：Plastic Front cover：Metal Body：Metal
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3
Smart IRSupport
Alarm I/O3/2
Audio I/O2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/7/8 16:51:53 | UNV IPC268EA 8MP LightHunter WDR Network Bullet Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Iris TypeP-iris
ProtocolsIGMP, RTP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, TLS1.3
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

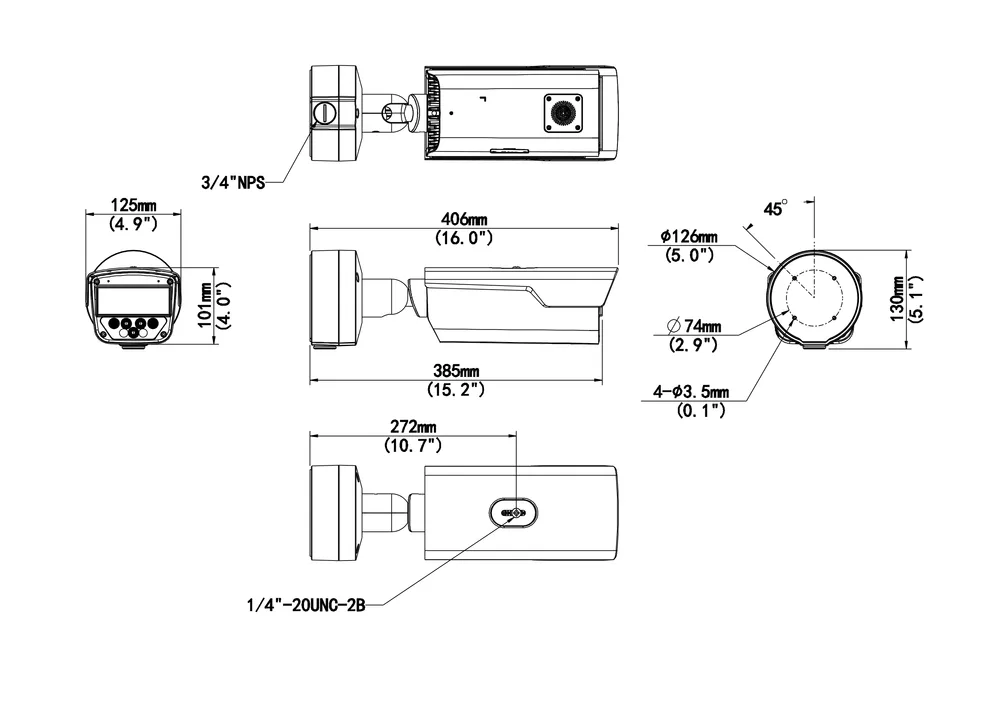

Dimensions2026/9/18 2:05:37 | IPC268EA-AHDZK-I1_Dimensions_1.png | Download
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Quick Guide2026/9/2 4:09:42 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1 × RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above&Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Built-in MicSupport, built-in mic*2
Edge StorageMicroSD, up to 512 GB
Focal Length2.8 to 12 mm | 8 to 32 mm
Optical Zoom4X
Privacy MaskUp to 8 areas (8 blacks / 8 mosaics)
Reset ButtonSupport
Video StreamTriple streams
Audio Bitrate128 Kbps
Corridor ModeSupport
Sampling Rate16KHZ
Two-way AudioSupport
White BalanceAuto&Outdoor&Fine Tune&Sodium Lamp&Locked&Auto2
Max Resolution8 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark&IP Address Filtering&Access Policy&ARP Protection&RTSP Authentication&User Authentication&HTTP authentication&Alarm input&Alarm output
Metadata AnalyseSupport human body, motor vehicle and non-motor vehicle image capture and attribute collection
Surge Protection6 KV
Audio CompressionG.711U&G.711A
Field of View (D)126.08° to 59.66° | 51.66° to 18.05°
Field of View (H)102.5° to 48.5° | 42° to 15.3°
Field of View (V)55.1° to 27.2° | 22.6° to 8.8°
IR On/Off ControlAuto/Manual
Maximum Bitstream35
Min. IlluminationColor: 0.001 Lux (F1.2, AGC ON), BW: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR | Color: 0.003 Lux (F1.6, AGC ON), BW: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR
Power ConsumptionMax. 16 W | Max. 19 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Exception DetectionObject Removed,Object Left Behind, Scene change, Defocus detection | Object Removed,Object Left Behind
Working Environment-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Built-in DC12V OutputSupport
Frame Rate-Sub Stream1080P (1920 × 1080), max. 60 fps
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect)108.0 m to 180.0 m (354.3 ft. to 590.6 ft.) | 240.3 m to 644.4 m (788.4 ft. to 2114.2 ft.)
Frame Rate-Main Stream8 MP (3840 × 2160), max. 60 fps
Multi-target DetectionSupport human body, motor vehicle and non-motor vehicle image capture and attribute collection
DORI Distance (Observe)43.2 m to 72.0 m (141.7 ft. to 236.2 ft.) | 96.1 m to 257.8 m (315.4 ft. to 845.7 ft.)
Digital Noise Reduction2D/3D DNR
Frame Rate-Third StreamD1 (720 × 576), max. 60 fps
DORI Distance (Identify)10.8 m to 18.0 m (35.4 ft. to 59.1 ft.) | 24.0 m to 64.4 m (78.7 ft. to 211.4 ft.)
DORI Distance (Recognize)21.6 m to 36.0 m (70.9 ft. to 118.1 ft.) | 48.1 m to 128.9 m (157.7 ft. to 422.8 ft.)
Illumination Distance (IR)60 m (196.9 ft.) | 120 m (393.7 ft.)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Supports Multiple CountriesNorth America: United States, Canada;South America: Mexico, Brazil; EU: France, Spain, Portugal, Germany, UK, Ireland, Bulgaria, Latvia, Romania, Slovenia, Poland, Hungary, Serbia, Czech Republic, Slovakia, Bosnia and Herzegovina, Greece, Croatia, Ukraine, Lithuania, Georgia; Asia Pacific: South Korea, Indonesia, Malaysia, Singapore, Viet Nam, Bangladesh, India, Nepal, Philippines, Thailand, Cambodia;Middle East: Iraq, Saudi Arabia, United Arab Emirates, Egypt, Qatar, Tunisia, Yemen; Kuwait, Oman, Bahrain; Middle Asia: Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan, Turkmenistan
Metadata of Multi-target DetectionGender (face), Age range (face), Glasses (face), Gender (pedestrian), Mask (pedestrian), Uppper garment color (pedestrian), Lower garment color (pedestrian), Uppper garment style (pedestrian), Lower garment style (pedestrian), Bag style (pedestrian), Uppper garment color (non-montor vehicle), Uppper garment style (non-montor vehicle), Vehicle type (non-montor vehicle), Vehicle type (motor vehicle), Vehicle color (motor vehicle), Vehicle brand (motor vehicle), Plate number (motor vehicle)
