BLCSupport
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
HLCSupport
OSDUp to 10 OSDs
ROISupport
RTCSupport
S/N>56 dB
WDR130 dB
FlipFlip vertical, Flip horizontal, Normal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.6
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±25%), PoE+ (IEEE 802.3at)
ClientEZStation, UNV-Link, UNV-Link Pro
HeaterSupport
SafetyCE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Sensor1/1.8" CMOS
Weight2.14 kg (4.72 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/7 10:07:33 | IPC264SA-AHDX4K-I1_HD_Image_5.png | png | Download
MaterialMetal + Plastic
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/O3/2
Audio I/O2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/7/7 18:04:20 | UNV IPC264SA-AHDX4K-I1 4MP LightHunter Intelligent Bullet Network Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Iris TypeP-iris
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

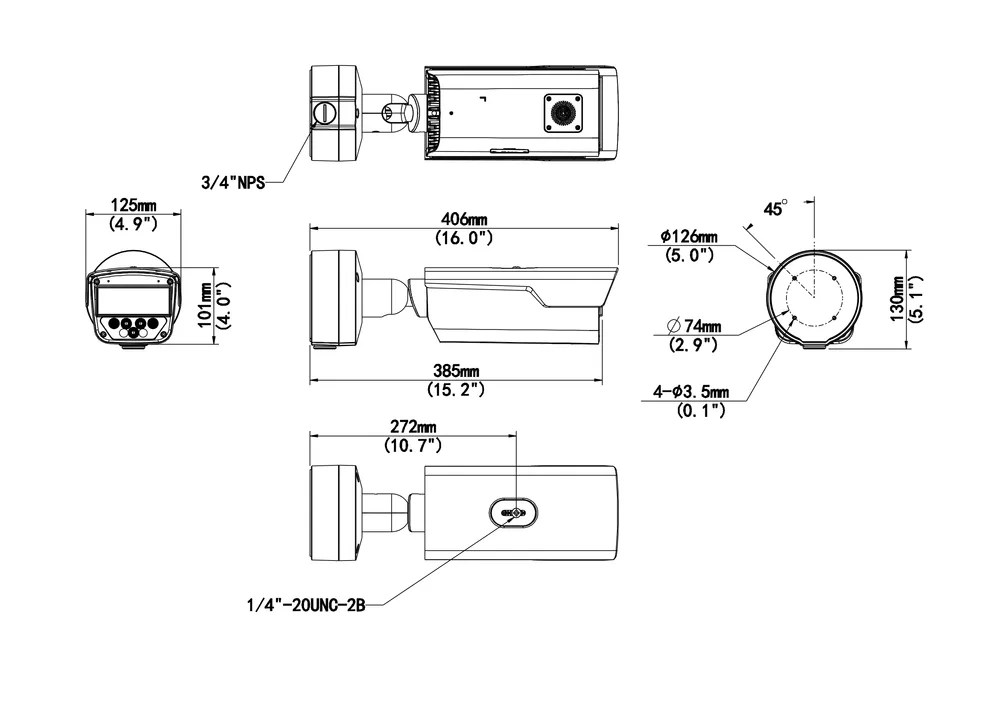

Dimensions2026/9/7 10:07:33 | IPC264SA-AHDX4K-I1_Dimensions_1.png | Download
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
Wavelength750 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Quick Guide2026/9/2 4:09:42 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1 × RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-in MicBuilt-in dual-mic
Edge StorageMicroSD, up to 512 GB
Focal Length8 to 32 mm
Privacy MaskUp to 8 areas (8 blacks / 8 mosaics)
Reset ButtonSupport
Road TrafficSupport capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode available: High/Low pole
Video StreamTriple streams
Audio Bitrate128 Kbps
Corridor ModeSupport
Home PositionSupport
Sampling Rate16KHZ
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution4 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Audio detection, Ultra motion detection
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output
Surge Protection6 KV
Audio CompressionG.711U, G.711A
Field of View (D)52.4° to 17.9°
Field of View (H)42.6° to 15.2°
Field of View (V)23.5° to 8.9°
IR On/Off ControlAuto/Manual
Maximum Bitstream35
Min. IlluminationColor: 0.001 Lux (F1.6, AGC ON), 0 Lux with Light
Power ConsumptionMax. 23 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Heatwave ReductionN/A
Supplemental LightDual light
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-40 ℃ to 60 ℃ (-40 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)8 to 32 mm
Frame Rate-Sub Stream1080P (1920 × 1080), max. 60 fps
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect)165.7 m to 444.4 m (543.7 ft. to 1458.1 ft)
Frame Rate-Main Stream4 MP (2688 × 1520), max. 60 fps
DORI Distance (Observe)66.3 m to 177.8 m (217.5 ft. to 583.2 ft)
Digital Noise Reduction2D/3D DNR
Frame Rate-Third StreamD1 (720 × 576), max. 60 fps
DORI Distance (Identify)16.6 m to 44.4 m (54.4 ft. to 145.8 ft)
DORI Distance (Recognize)33.1 m to 88.9 m (108.7 ft. to 291.6 ft)
Illumination Distance (IR)120 m (393.7 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
UMD (Ultra Motion Detection)Support
Illumination Distance (Warm Light)30 m (98.4 ft)
