BLCSupport
BOM0235U69E
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
HLCSupport
OSDUp to 4 OSDs
ROIUp to 8 areas
S/N>52dB
WDR120dB
FlipNormal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise
IrisF1.6
WIFIN/A
ClassDate | Title | Download
DefogDigital Defog
PowerDC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 9.6W
TitleLanguage | Type | Download
ClientUNV-Link, UNV-Link Pro, EZStation
SafetyCE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/2.7" CMOS
U-codeSupport
Weight0.51kg(1.12lb)
Network1 x RJ45 10M/100M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/2/12 3:28:48 | IPC2325SR5-ADZK-H_HD_Image_5.png | png | Download
MaterialGraphene + Metal
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Smart IRSupport
Alarm I/ON/A
Audio I/ON/A
Datasheet2026/6/22 10:36:32 | UNV IPC2325SR5-ADZK-H 5MP HD IR VF Bullet Network Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
Lens TypeMotorized
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP
User/HostUp to 32 users, 2 user levels: administrator and common user

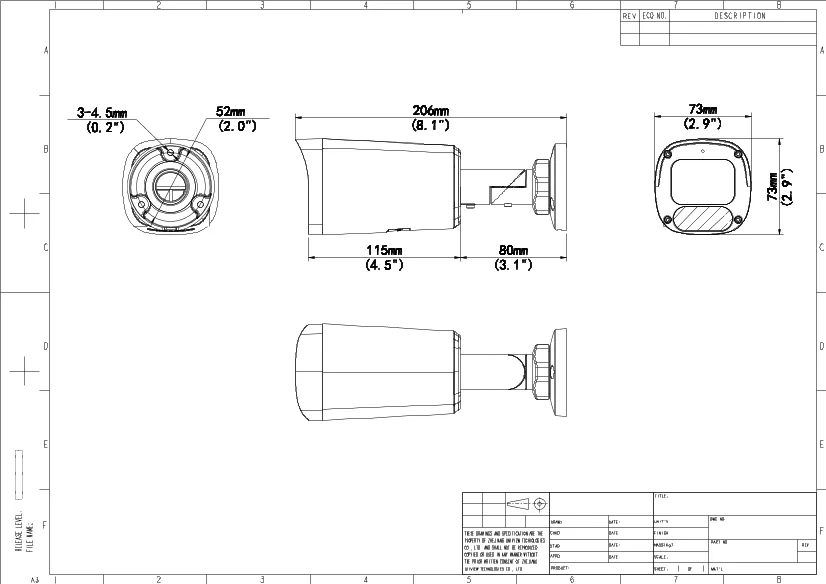

Dimensions2026/2/12 3:28:48 | IPC2325SR5-ADZK-H_Dimensions_1.png | Download
Frame RateMain Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps
ProtectionIP67 (IEC 60529)
Wavelength850nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Quick Guide2025/12/25 4:03:43 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Built-in MicSupport
Edge StorageMicro SD, up to 256 GB
Focal Length2.8 ~ 12mm
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video OutputN/A
Video StreamDual Streams
Audio Bitrate64 Kbps
Sampling Rate8KHZ
Two-way AudioN/A
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Max Resolution5MP
Video Bit Rate128 Kbps ~ 6144 Kbps
Basic DetectionMotion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Cross line (based on human body detection), Intrusion (based on human body detection)
Network StorageANR, NAS (NFS)
Power InterfaceØ 5.5mm coaxial power plug
Adjustment AnglePan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°
Built-in SpeakerN/A
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Surge Protection6KV
Audio CompressionG.711U, G.711A
Field of View (D)101.2°~37.2°
Field of View (H)96.4°~32.7°
Field of View (V)51.3°~18.6°
IR On/Off ControlAuto/Manual
Min. IlluminationColour:0.001 lux (F1.6, AGC ON) 0 lux with IR
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Storage Environment-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
Web Client Language4 Languages English, Russian, Spanish, Vietnamese
Working Environment-30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)
DORI Distance (Lens)2.8mm, 12mm
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)63m(206.7ft), 270.0m(885.8ft)
DORI Distance (Observe)25.2m(82.7ft), 108.0m(354.3ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)6.3m(20.7ft), 27.0m(88.6ft)
DIPC-B1230.8.5.250523.zipEnglish | zip | Download
DORI Distance (Recognize)12.6m(41.3ft), 54.0m(177.2ft)
Illumination Distance (IR)50m
