BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
HLCSupport
OSDUp to 4 OSDs
ROIUp to 8 areas
S/N>52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
IrisF1.6
WIFIN/A
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3af) Power consumption: Max. 6.0 W
TitleLanguage | Type | Download
ClientUNV-Link, UNV-Link Pro, EZStation
SafetyCE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/2.7" CMOS
U-codeSupport
Weight0.45 kg (0.99 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/8/24 10:27:43 | IPC2125SR5-ADF28KM-G_HD_Image_5.png | png | Download
MaterialMetal
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/ON/A
Audio I/ON/A
Datasheet2026/6/23 7:29:10 | UNV IPC2125SR5-ADF28KM-G 5MP HD Mini IR Fixed Bullet Network Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Lens TypeFixed
ProtocolsIPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

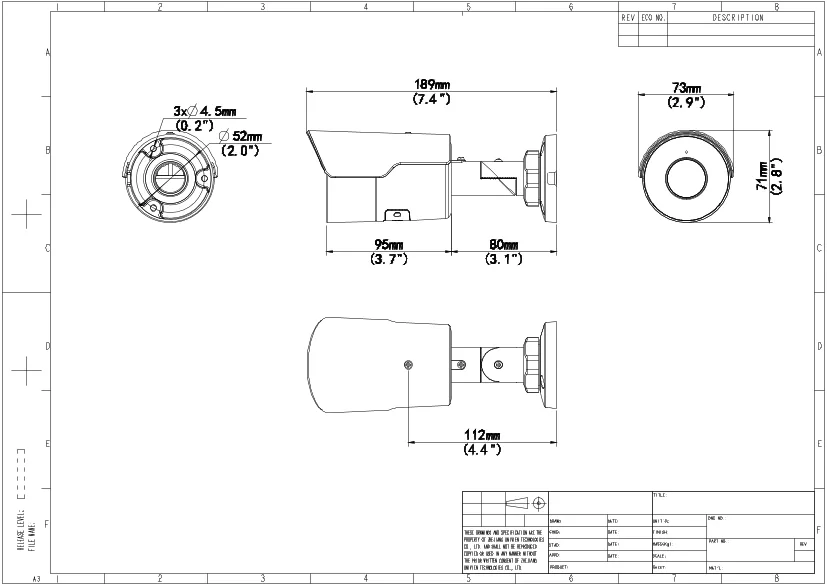

Dimensions2026/2/28 3:01:33 | IPC2125SR5-ADF28KM-G_Dimensions_1.png | Download
Frame RateMain Stream: 5 MP (2880 × 1620), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
ProtectionIP67 (IEC 60529)
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Quick Guide2025/12/25 4:03:43 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length2.8 mm
Privacy MaskUp to 4 areas
Reset ButtonN/A
Video OutputN/A
Video StreamDual streams
Audio Bitrate64 Kbps
Sampling Rate8 kHz
Two-way AudioN/A
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution5 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Built-in SpeakerN/A
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Surge Protection4 KV
Audio CompressionG.711U, G.711A
Field of View (D)121.2°
Field of View (H)112.9°
Field of View (V)59.1°
IR On/Off ControlAuto/Manual
Min. IlluminationSupport Easystar: color: 0.003 Lux ( F1.6, AGC ON), 0 Lux with IR
Release Notes.pdfEnglish | pdf | Download
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2.8 mm
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)63.0 m (206.7 ft)
DORI Distance (Observe)25.2 m (82.7 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)6.3 m (20.7 ft)
DORI Distance (Recognize)12.6 m (41.3 ft)
Illumination Distance (IR)50 m (164.0 ft)
GIPC-B6202.15.11.240529.zipEnglish | zip | Download
GIPC-B6202.11.6.C00022.230802.zipEnglish | zip | Download
GIPC-B6202.15.11.240529 Release Notes.pdfEnglish | pdf | Download
