RFFCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
BLCSupport
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
HLCSupport
OSDUp to 4 OSDs
ROISupport
S/N>52 dB
WDRDWDR
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF2.0
WIFISupport
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%
TitleLanguage | Type | Download
ClientEZStation, APP
SafetyCE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor1/2.9" CMOS
U-codeSupport
Weight0.25 kg (0.55 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/9/7 11:34:19 | IPC2122LB-AF28WK-G_HD_Image_5.png | png | Download
MaterialMetal + Plastic
Smart IRSupport
Alarm I/ON/A
Audio I/ON/A
Datasheet2026/6/23 9:36:17 | UNV IPC2122LB-AF28(40)WK-G 2MP HD WIFI Bullet Network Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
DewarpingN/A
Iris TypeFixed
ProtocolsIPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
User/HostUp to 32 users, 2 user levels: administrator and common user

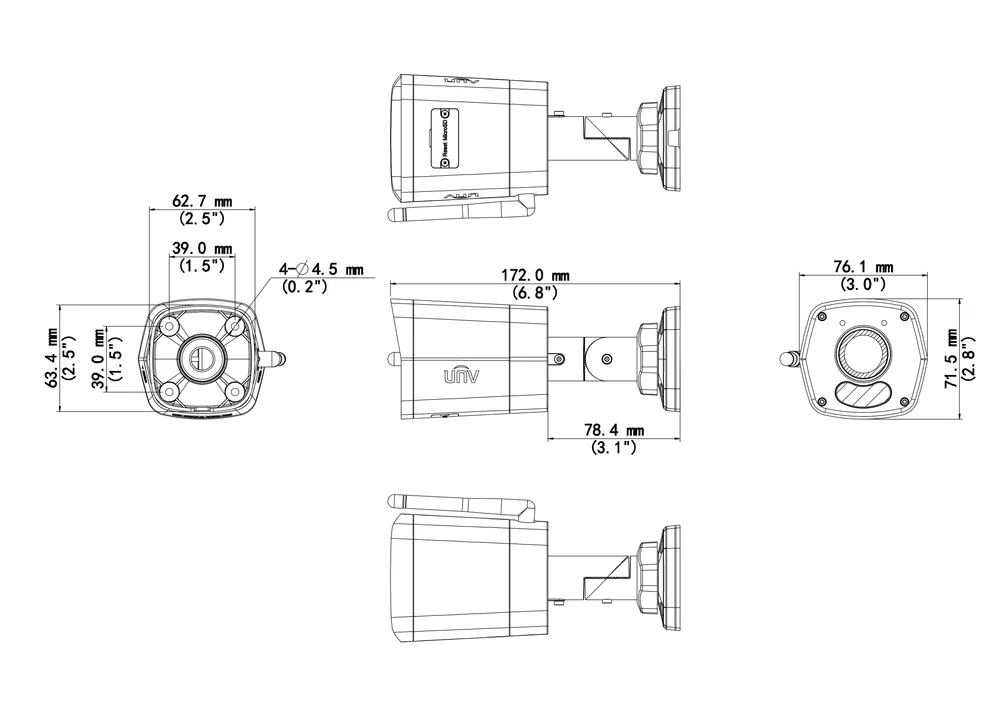

Dimensions2026/9/7 11:34:19 | IPC2122LB-AF28WK-G_Dimensions_1.png | Download
Frame RateMain Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
ProtectionIP67 (IEC 60529)
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Quick Guide2026/6/24 16:01:41 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length2.8 mm | 4.0 mm
Privacy MaskSupport (only NVR)
Reset ButtonSupport
Video OutputN/A
Video StreamDual streams
Audio Bitrate64 Kbps
Sampling Rate8 kHz
Two-way AudioN/A
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution2 MP
Transmit Power802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps
Video Bit Rate128 Kbps to 6144 Kbps
Wi-Fi Security64/128-bit WEP, WPA-PSK/WPA2-PSK
Basic DetectionHuman body detection, Motion detection, Tampering alarm, Audio detection
Frequency Range2.4 GHz to 2.4835 GHz
Modulation Mode802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Adjustment AnglePan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Built-in SpeakerN/A
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Surge Protection4 KV
Audio CompressionG.711U, G.711A
Channel Bandwidth20 MHz Support
Field of View (D)111.0° | 89.1°
Field of View (H)101.1° | 83.7°
Field of View (V)55.0° | 44.6°
IR On/Off ControlAuto/Manual
Min. IlluminationColor: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Power ConsumptionMax. 4.0 W
Transmission Rate802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 Code ProfileBaseline profile, Main profile, High profile
Supplemental LightIR
Wireless StandardsIEEE802.11b/g/n
Receive Sensitivity802.11b: -90 dBm@11 Mbps (Typical)802.11g: -75 dBm@54 Mbps (Typical)802.11n: -74 dBm@150 Mbps (Typical)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language4 Languages: English, Russian, Spanish, Vietnamese
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2.8 mm | 4 mm
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)45.0 m (147.6 ft.) | 64.3 m (211.0 ft.)
DORI Distance (Observe)18.0 m (59.1 ft.) | 25.7 m (84.3 ft.)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)4.5 m (14.8 ft.) | 6.4 m (21.0 ft.)
DORI Distance (Recognize)9.0 m (29.5 ft.) | 12.9 m (42.3 ft.)
DIPC-B1226.10.2.240429.zipEnglish | zip | Download
Illumination Distance (IR)30 m (98.4 ft)
DIPC-B1226.10.2.240429 Release Notes.pdfEnglish | pdf | Download
