FoVH:56.1°~2.3°
UPC8801089245984
MSRP$10145.00
Zoom43x optical
CodecH.265/H.264/MJPEG
ModelTNP-A9430RW
PowerPoE++ (IEEE802.3bt)

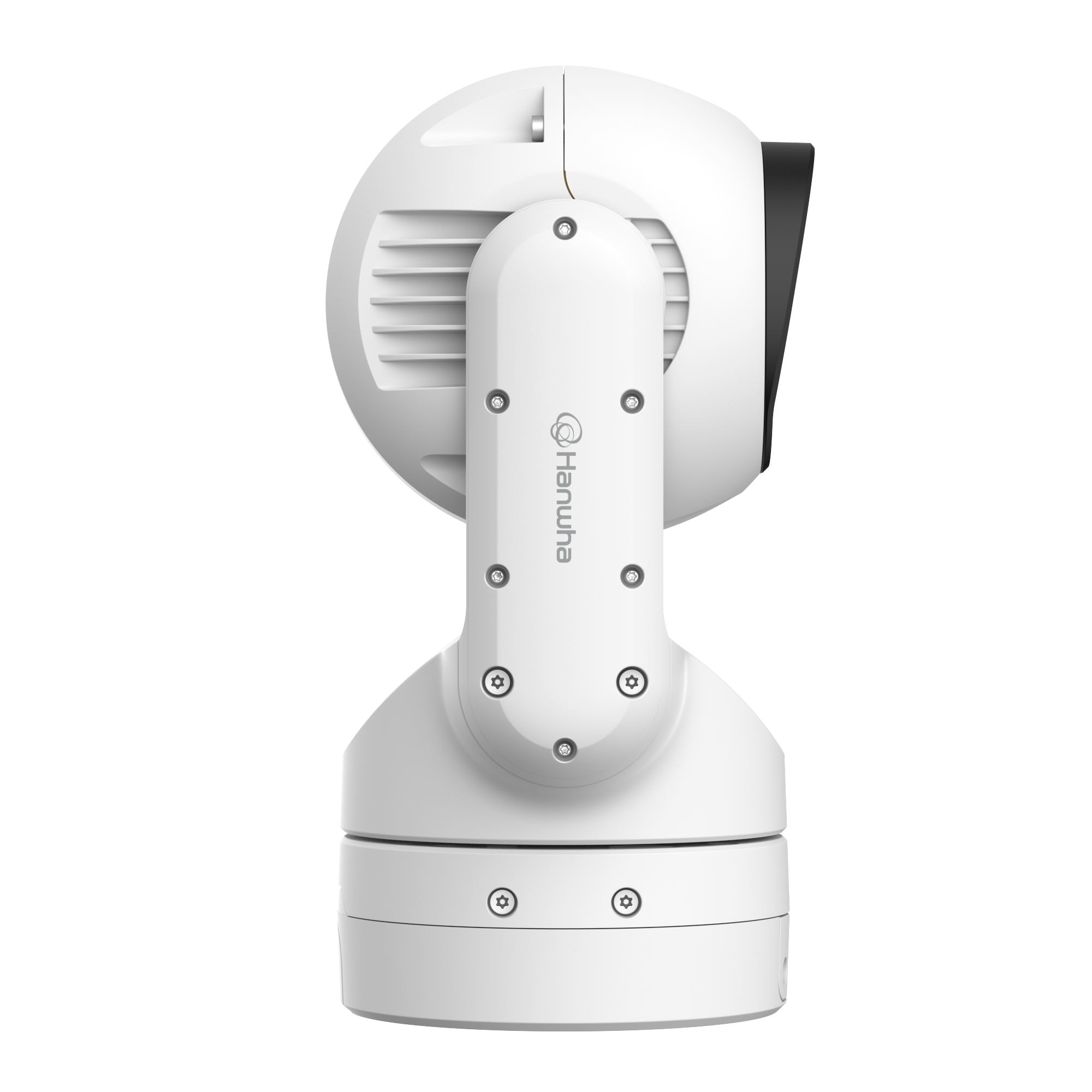

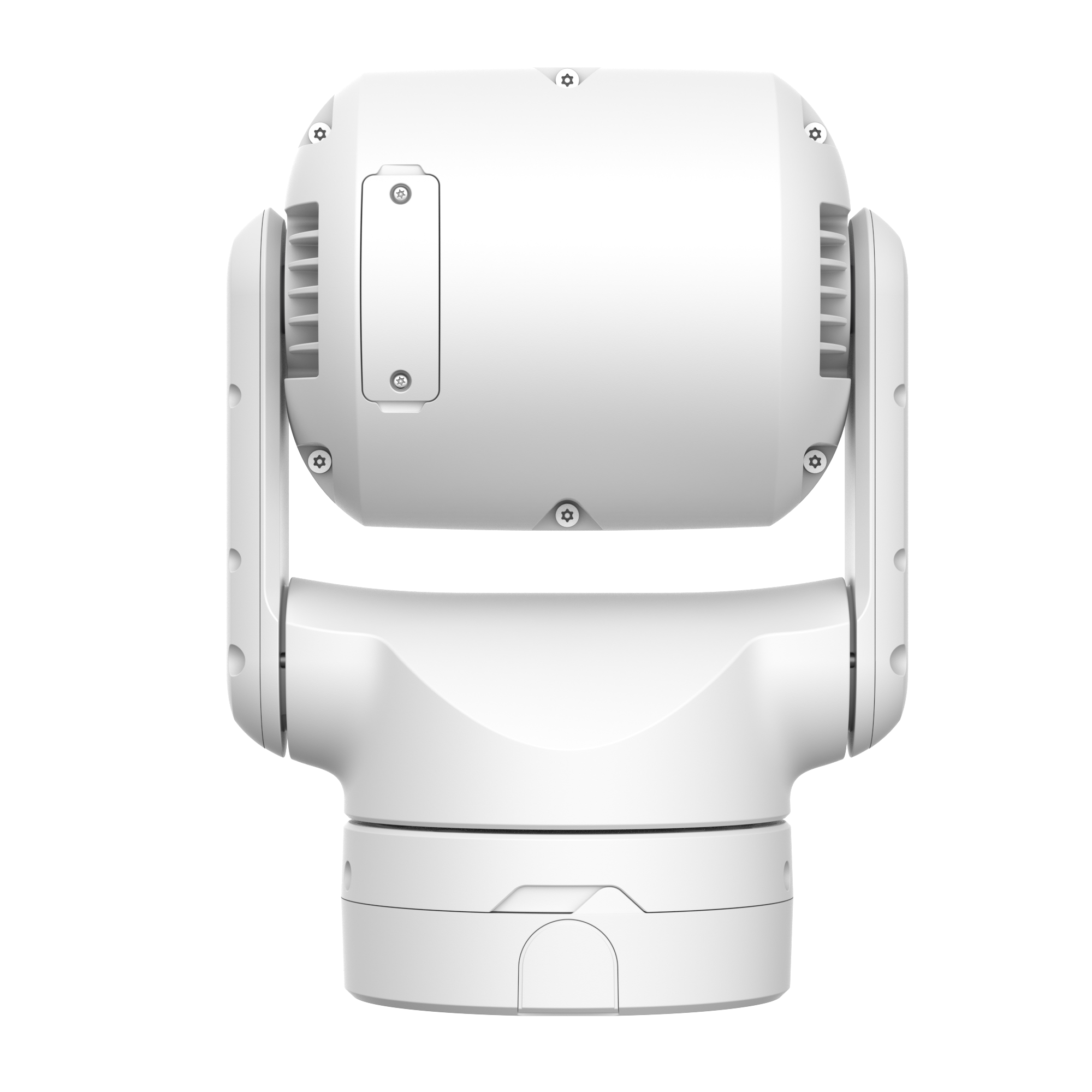

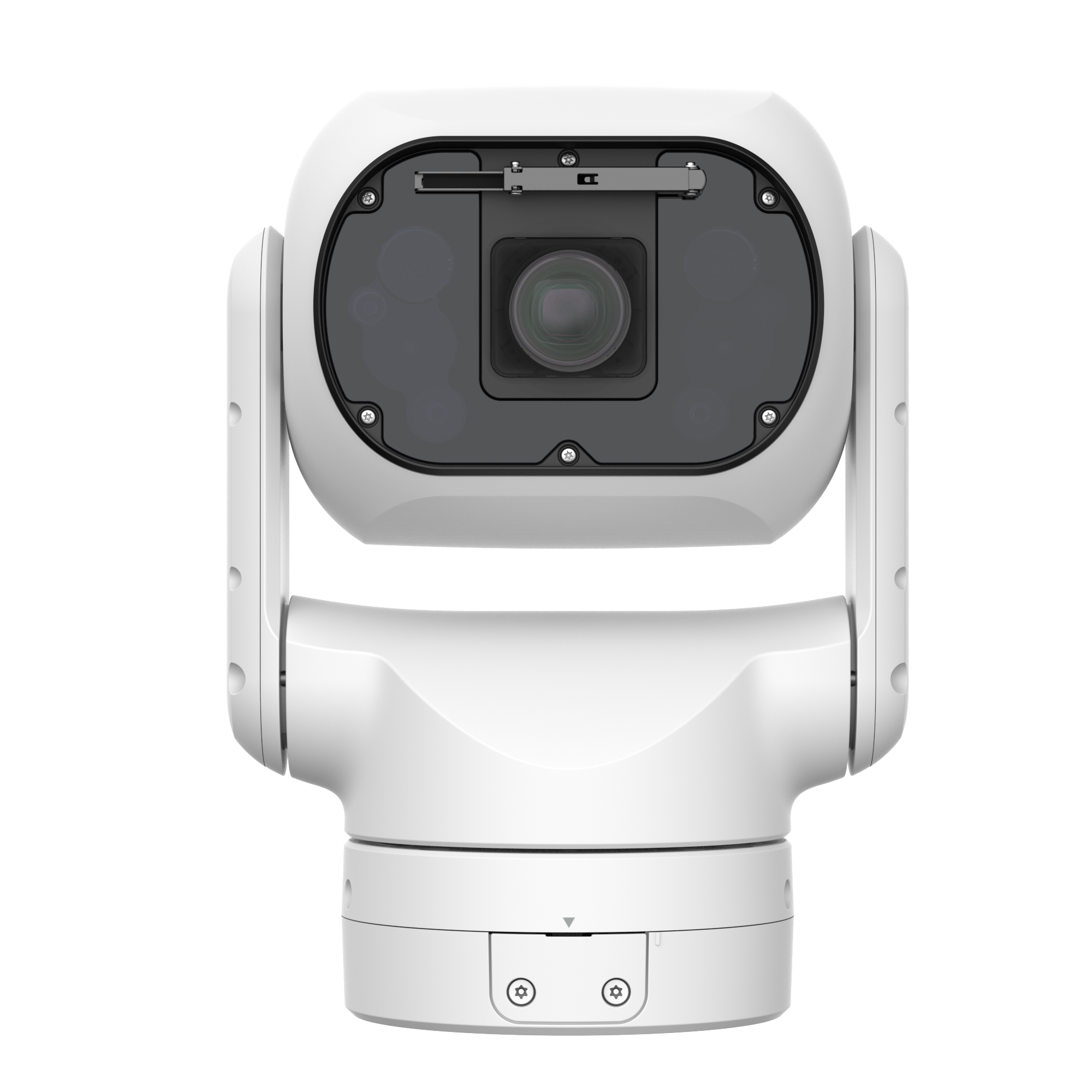

Title4K AI IR, Ruggedized PTZ Positioning Camera
Sensor1/1.8 inch CMOS
StorageMicroSD up to 256GB
CategoryCamera - Network
IR Range500m WiseIR
warranty5-Year Hanwha Vision manufacturer warranty
AI EngineWisenet 9
IP RatingIP66/IP68/IK10
Pan Range360° continuous
Pan Speed700°/sec
Frame Rate30fps @ 8MP
HighlightsPowered by WN9, AI Ruggedized PTZ Positioning Camera, 8MP resolution @ 30FPS, 6.1mm~262.4mm(43x) autofocus lens, Adaptive Wise IR (500m), extremeWDR 120dB, Day & Night (ICR), H.265/H.264/MJPEG codec, Optical image stabilization, Handover, AI-based WiseStream, WiseNR Ⅱ (using AI engine), Dynamic privacy mask, IVA events based on AI engine: Motion & Object detection, Line crossing(Crossing/Direction), IVA area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Slip & Fall, Classified object types: (Person/Face/Vehicle/License plate), Object attributes (Person: Gender/Top/Bottom clothing color/Bag, Face: Age/Gender/Mask/Glasses, Vehicle: type/color), BestShot, Analytics events (Tampering, Shock detection, Audio detection), AI object auto-tracking (Person/Vehicle) with target lock tracking, Secure element with FIPS 140-3 level3, Built-in microSD card slot (Up to 1TB), IP66/IP68, IK10 (except window), NEMA 4X, NEMA-TS 2(2.2.7.2-8, 2.2.8, 2.2.9), MIL-STD-810H ASTM B117, Operating temp: -50°C~+60°C (-58°F~+140°F), Wind load 257km/h (160mph), Power: HPoE (injector included), Metal shielded RJ-45, White.
Resolution8MP (3840x2160)
Tilt Range-30° to +90°
Tilt Speed700°/sec
Auto TrackingAI-based object auto-tracking
StabilizationOIS + DIS
Operating Temp-50°C to +60°C
IP66IP68IK10
NEMA4XFIPS 140-3
