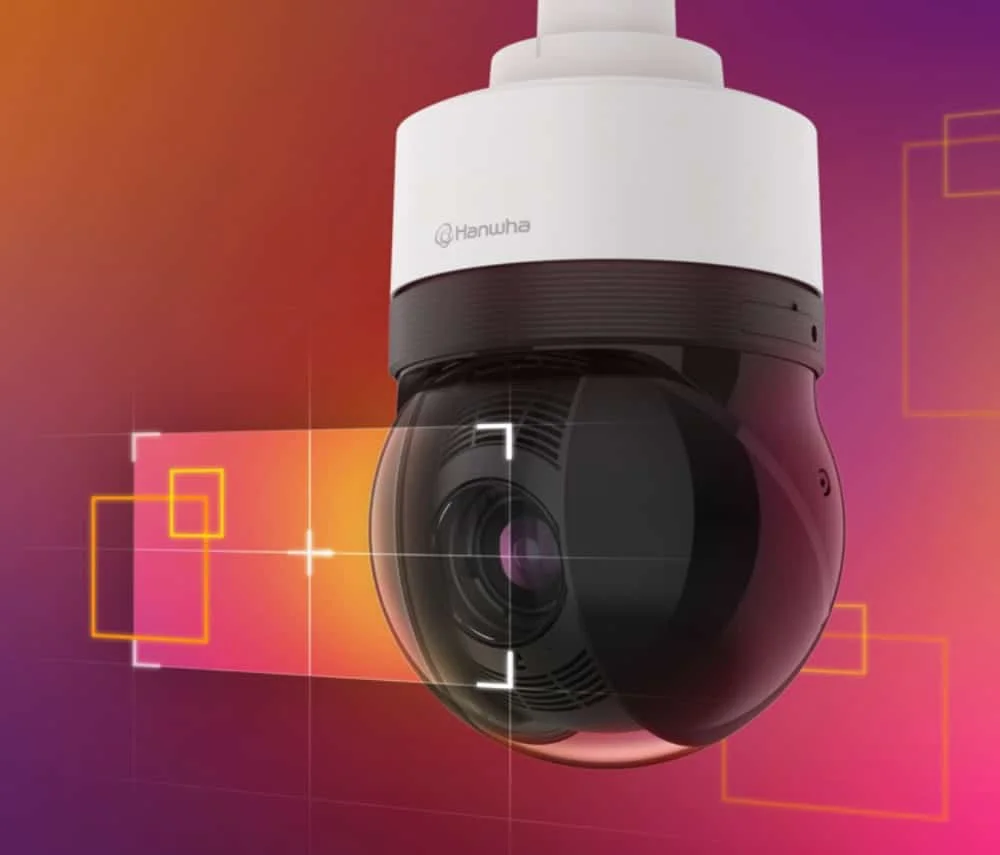

DescriptionThe Hanwha HAN-QNP-6250R is a 2MP, 4.44-111mm lens IR PTZ camera that includes the advanced compression technology of WiseStream II. As it is incorporated with HAN-QNP-6250R, it can reduce bandwidth by up to 50% and when combined with H.265, the bandwidth efficiency can be improved by up to 75% compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. Lens distortion correction easily removes imperfections in images, making image quality impeccable. Users can also adjust the optimal focus remotely via network which reduces the installation time of the camera. The HAN-QNP-6250R offers a seamless solution for small to medium sized applications and ultimately minimises time and costs for installation.
File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover * Alarm output(with NW I/O Box)
Audio In
None
Audio Out
None
IR Viewable Length
100m(328.08ft)
IR Illuminator (Optional)
None
Water Removal
None
Auto Tracking
None
Coaxial Protocol
None
Color Palettes
None
Radiometry
Temperature detect range
None
Temperature accuracy
None
Temperature detection
None
Additional
None
Network
Ethernet
Metal shielded RJ-45(10/100BASE-T)
Video Compression
H.265/H.264,MJPEG
Audio Compression
None
Smart Codec
Manual(5ea area), WiseStreamⅡ
Video Quality Adjustment
H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Normal : -35°C~+55°(-31°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F) * Start up should be done at above -30°C Less than 95% RH(Non-condensing)
Storage Temperature / Humidity
-50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
Certification
IP66, IK10, NEMA4X
Input Voltage
PoE+(IEEE802.3at, Class4)
Power Consumption
Typ.14.7W, Max.25.5W Camera only
Mechanical
Color / Material
Body : White / Aluminum Head : Black / Polycarbontate Hard-coated dome
