CASE Canada Security

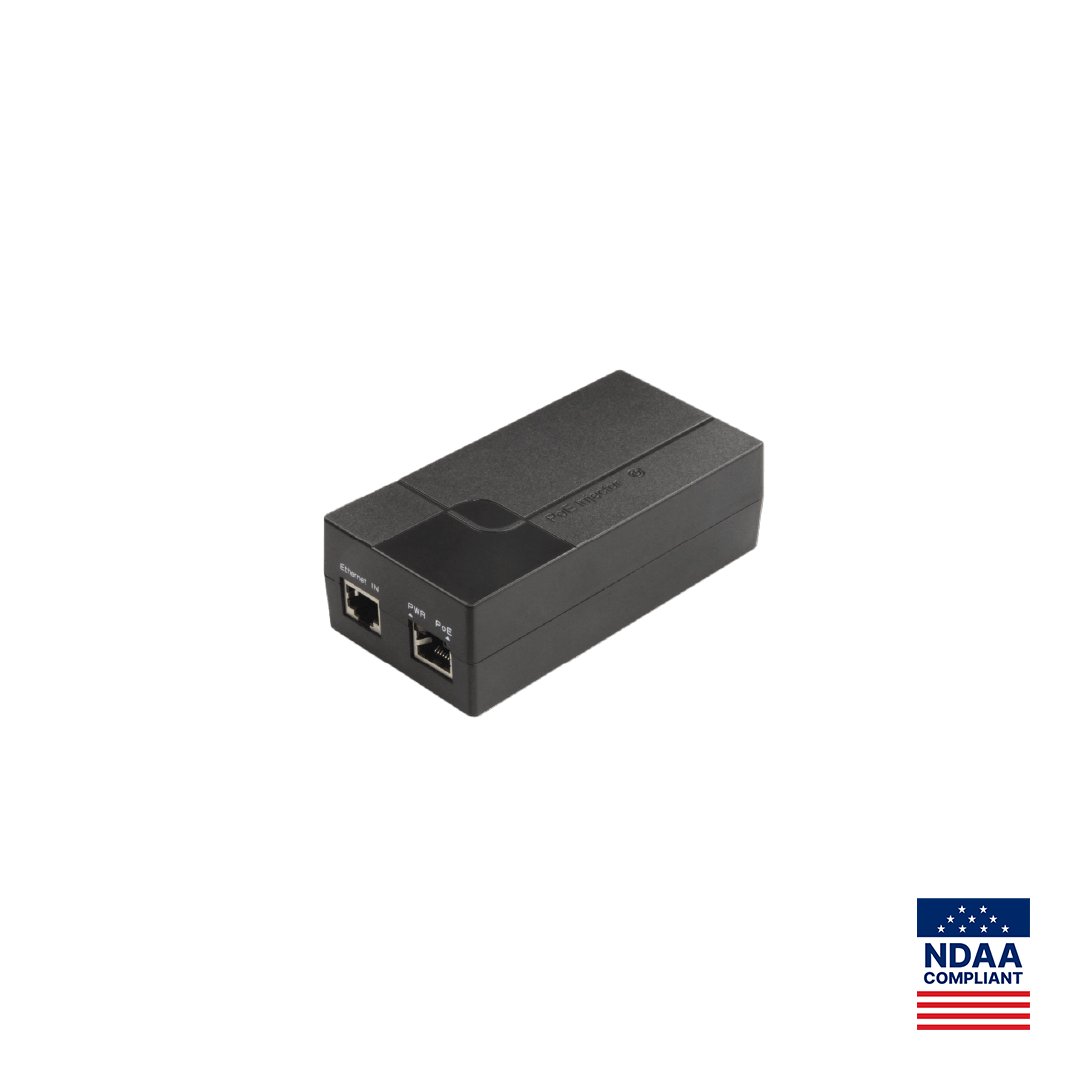

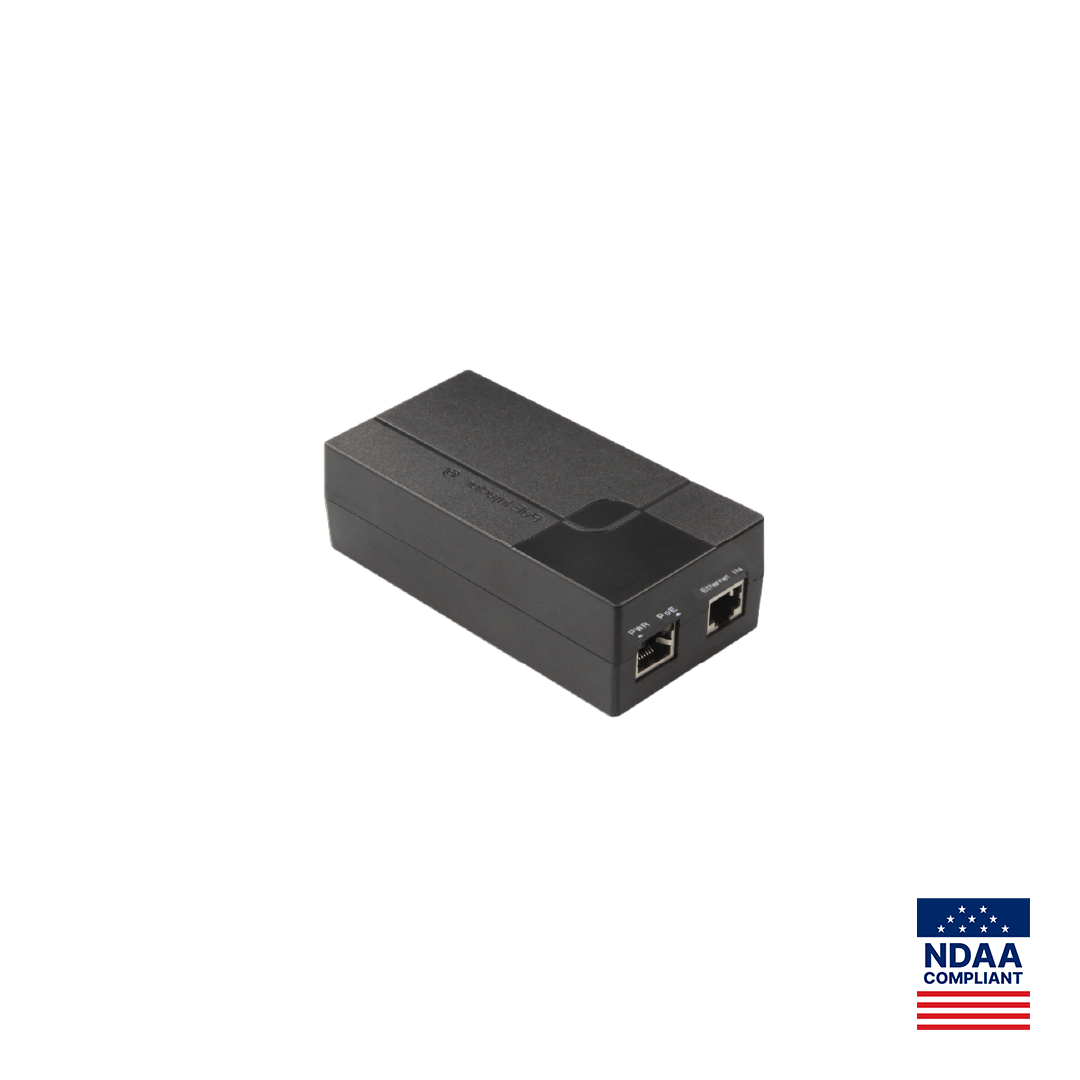

CASE CS-PSE3301AC PoE Injector (IEEE 802.3af)
$27.00$30.00-10%
In stock
SKU: CS-PSE3301ACQty:
1
6-Year Warranty on all CASE products
Free UPS Ground Shipping on all products
- Sharp Series PoE Injector.
- Powers IEEE 802.3af PoE cameras via existing Ethernet cable.
- 2× 10/100/1000M RJ45 ports, 15.4W max per port, 18W total, 52V DC output, supports both mid-span and end-span PoE delivery.
- CE/FCC/RoHS.
Description
Sharp Series PoE Injector. Powers IEEE 802.3af PoE cameras via existing Ethernet cable. 2× 10/100/1000M RJ45 ports, 15.4W max per port, 18W total, 52V DC output, supports both mid-span and end-span PoE delivery. CE/FCC/RoHS.
Specifications
ports2× 10/100/1000M RJ45 (Ethernet IN + PoE OUT)
seriesSharp (PoE Injector)
total Power18W
poe StandardIEEE 802.3af
input VoltageAC 100-240V, 50-60Hz, 0.5A
installationDesktop or wall-mount
max Poe Per Port15.4W
network Medium1000Base-T Cat5e or higher (≤100m)
operating Temp-20°C to +55°C
output Voltage52V DC
certificationsCE, FCC Part 15 Class B, RoHS
thermal Protection>100°C
