CASE Canada Security

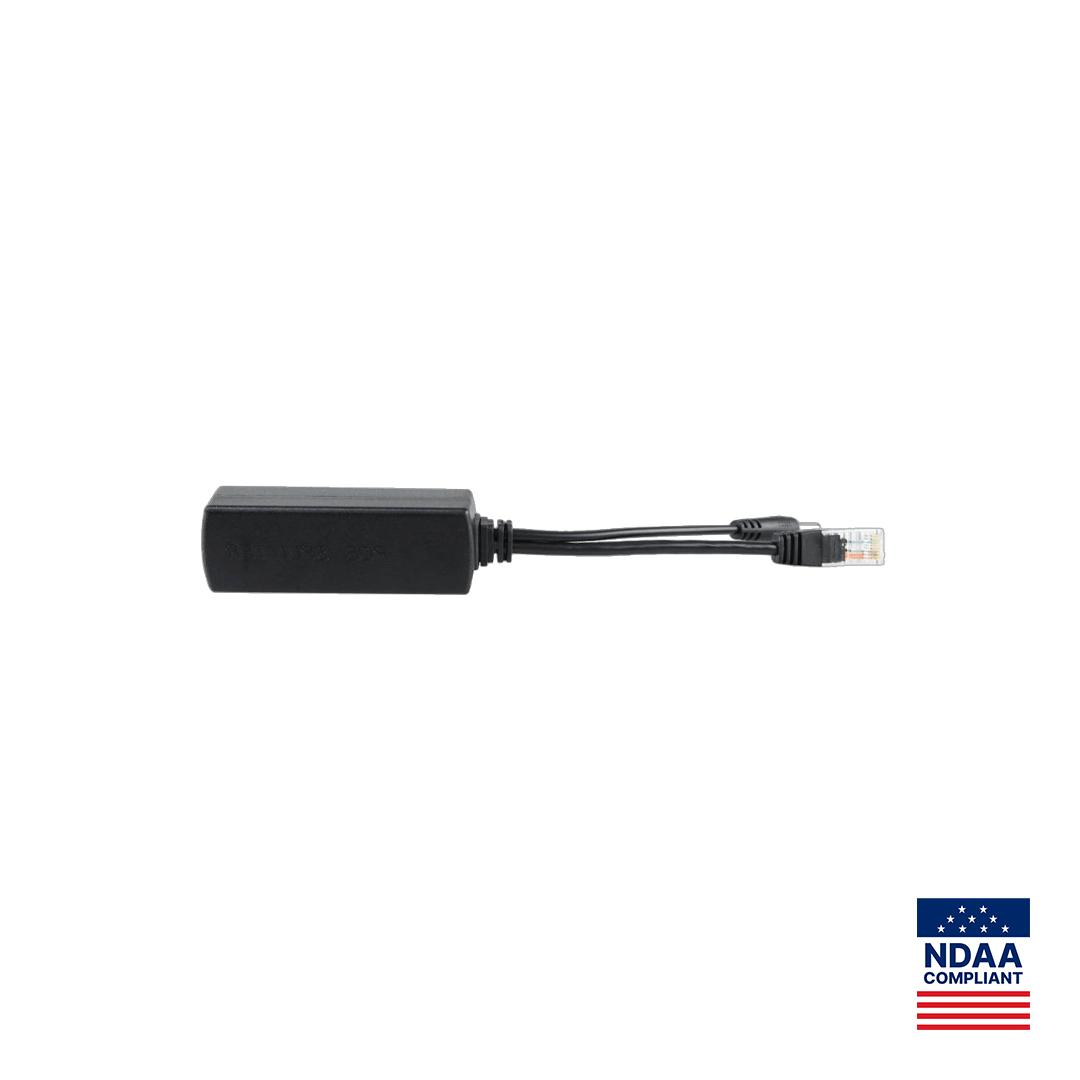

CASE CS-PD5202 PoE Splitter

$59.99

SKU: CS-PD5202

Qty:

6-Year Warranty on all CASE products

Free UPS Ground Shipping on all products

Download Data Sheet (PDF)

10/100Mbps fast Ethernet Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- ) Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple.
Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency Support short circuit, over current and over temperature protection 1500V high voltage isolation (input stage to output stage) (only applicable to CS-PD5202,CS-PD5202-at) CDC interface has dustproof and waterproof measure.

Description

10/100Mbps fast Ethernet Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- ) Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple. Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency Support short circuit, over current and over temperature protection 1500V high voltage isolation (input stage to output stage) (only applicable to CS-PD5202,CS-PD5202-at) CDC interface has dustproof and waterproof measure

Specifications

ports1× 10/100 RJ45 (Data) + 1× 8P Male (Data) + 1× DC5521 (Power)

seriesSharp (PoE Splitter)

cableMax≤100m (Cat5 or higher)

dimensions85×31×26mm

efficiency>82%

protection4KV lightning / IP40

poeStandardIEEE 802.3af/at

inputVoltage44-57VDC (via PoE)

maxPoePerPort13W

operatingTemp-20°C to +55°C

outputVoltage12VDC (default), 5-24VDC customizable

certificationsCCC, CE, FCC, RoHS

CASE CS-PD5202 PoE Splitter

$59.99

SKU: CS-PD5202

Qty:

6-Year Warranty on all CASE products

Free UPS Ground Shipping on all products

Download Data Sheet (PDF)

10/100Mbps fast Ethernet Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- ) Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple.
Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency Support short circuit, over current and over temperature protection 1500V high voltage isolation (input stage to output stage) (only applicable to CS-PD5202,CS-PD5202-at) CDC interface has dustproof and waterproof measure.

Description

10/100Mbps fast Ethernet Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- ) Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple. Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency Support short circuit, over current and over temperature protection 1500V high voltage isolation (input stage to output stage) (only applicable to CS-PD5202,CS-PD5202-at) CDC interface has dustproof and waterproof measure

Specifications

ports1× 10/100 RJ45 (Data) + 1× 8P Male (Data) + 1× DC5521 (Power)

seriesSharp (PoE Splitter)

cableMax≤100m (Cat5 or higher)

dimensions85×31×26mm

efficiency>82%

protection4KV lightning / IP40

poeStandardIEEE 802.3af/at

inputVoltage44-57VDC (via PoE)

maxPoePerPort13W

operatingTemp-20°C to +55°C

outputVoltage12VDC (default), 5-24VDC customizable

certificationsCCC, CE, FCC, RoHS
