Why Warehouses Need Specialized Security Camera Systems
Warehouse security in Florida presents unique challenges: large open floor areas, high ceilings, loading docks, perimeter fencing, and valuable inventory. A residential camera system simply won't cut it. Here's how to design a proper warehouse surveillance system.
Key Warehouse Security Camera Types
Wide-Angle Turret Cameras (Interior)
For covering large interior floor areas from ceiling mount points, wide-angle IP cameras with 2.8mm or 4mm lenses provide the best coverage. Hikvision's DS-2CD2347G2-LU ColorVu (4MP) mounted at 15–20 feet covers approximately 1,500 sq ft per camera with identifiable facial detail.
PTZ Cameras for Large Open Areas

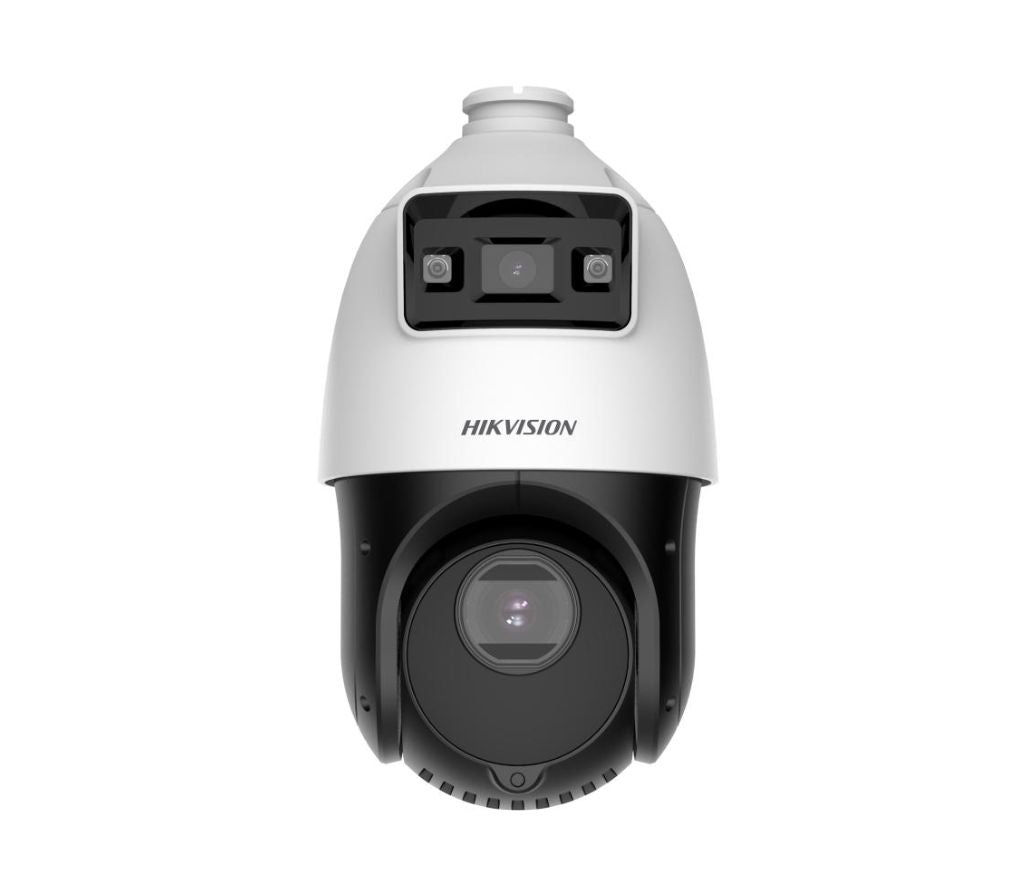

A single Hikvision DS-2DE4425IWG-E PTZ camera with 25x optical zoom can monitor an entire warehouse floor from a single mount point, with auto-tracking to follow moving subjects. Ideal for facilities over 50,000 sq ft.
License Plate Capture Cameras (LPR)
For loading docks and vehicle gates, dedicated LPR cameras like the Hikvision DS-2CD4A26FWD-IZS capture license plate numbers at distances up to 100 feet. Critical for tracking which vehicles accessed your facility.
Bullet Cameras for Exterior Perimeter
IP67-rated bullet cameras with IR night vision cover perimeter fencing, parking lots, and exterior loading areas. Hikvision's AcuSense line reduces false alarms from Florida wildlife that commonly trigger standard motion detection.
Camera Placement Strategy for Warehouses
- All entry/exit doors — minimum one camera per door, positioned to capture faces
- Loading dock — wide angle + LPR at each bay
- Interior aisles — cameras at intersections looking down aisles
- Receiving area — overhead view for inventory verification
- Office/break room — standard turret camera
- Server/data room — dedicated camera on door
- Perimeter fence — every 150–200 feet with motion detection zone
How Many Cameras Does a Warehouse Need?
A general estimate is 1 camera per 1,000–1,500 sq ft of interior space, plus perimeter cameras. A typical 20,000 sq ft Florida warehouse needs approximately:
- 12–16 interior cameras
- 6–8 exterior/perimeter cameras
- 2–4 LPR cameras at loading docks
- Total: 20–28 cameras on a 32-channel NVR
Storage Requirements for 30-Day Retention

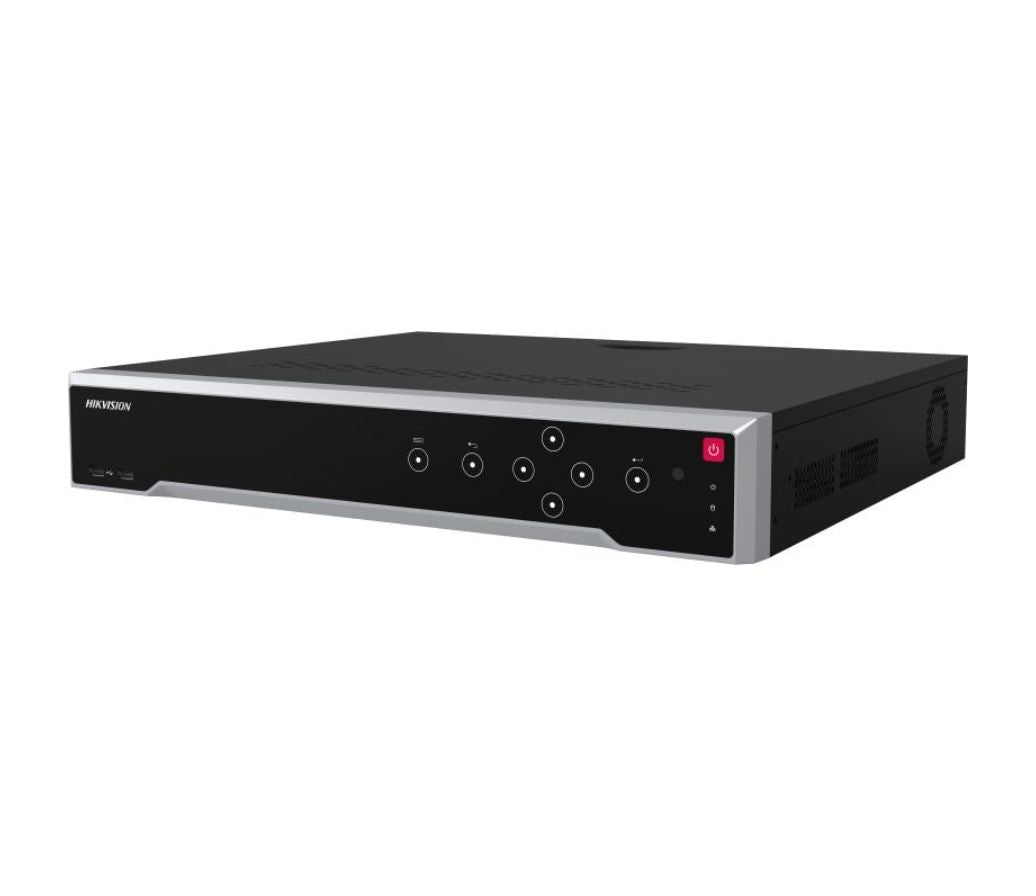

A 24-camera system recording 24/7 at 4MP with H.265+ compression requires approximately 8–10TB for 30-day retention. We recommend a 16TB NVR configuration for comfortable headroom. Hikvision's IDS-7732NXI-M4 32-channel NVR supports up to 8 SATA drives for up to 80TB storage.
Get a Warehouse Camera Quote in Florida
IDS CCTV has supplied warehouse security systems to distribution centers, logistics facilities, and manufacturing plants throughout Florida. Contact us for a free warehouse security assessment and quote.
