CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2
FCCPart15 Subpart B
USBFront panel: 2 × USB2.0, Rear panel: 1 × USB3.0
SATA4 SATA interfaces
ClassDate | Title | Download
RS2321
RS4221
RS4851
TitleLanguage | Type | Download
eSATA1
Height2U
Alarm In16-ch
CapacityUp to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
HD Image2026/9/7 15:05:45 | XVR304-32Q3_HD_Image_4.png | png | Download
Alarm Out6-ch
Datasheet2026/7/8 17:29:00 | UNV XVR304-32Q3 Digital Video Recorder.pdf | English | pdf | Preview | Download
ProtocolsTCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, IPv6

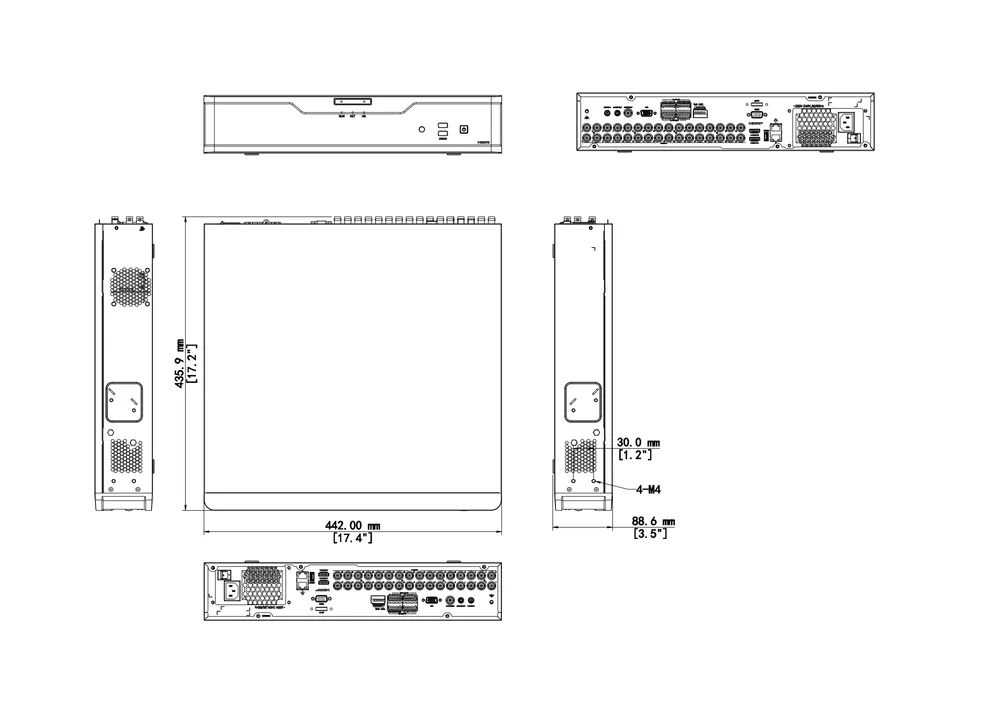

Dimensions2026/9/7 15:05:45 | XVR304-32Q3_Dimensions_1.png | Download
VCA SearchFace Search, Behavior Search
VGA OutputVGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Alert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
HDMI OutputHDMI1: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI2: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Quick Guide2026/6/24 16:27:07 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2025/10/10 10:03:01 | UNV-Digital Video Recorders User Manual.pdf | English | pdf | Preview | Download
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Power SupplyAC 100 ～ 240 V
Remote Users128
CertificationCE, FCC, UL, RoHS, WEEE
General AlarmMotion
Two-way Audio1-ch, RCA (Using the audio input and output)
Audio Bit Rate64 Kbps per channel
IP Video Input4-ch
BNC Audio Input32-ch, channel audio
Browser(Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
IP Smart by IPCFace Detection, Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area)
Playback Screen1/4/9/16
RCA Audio Input1-ch
BNC Video Output1-ch
RCA Audio Output1-ch
Working Humidity≤ 90% RH (non-condensing)
Audio Sample Rate8 kHz, 16 bit per channel
Live View DisplayHDMI/VGA: 1/4/6/8/9/16/25/36
Network Interface2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Analog Video Input32-ch, BNC
Incoming Bandwidth160Mbps (Up to 224 Mbps after all analog channel conversion)
Max IP Video Input36-ch
Outgoing Bandwidth160Mbps
Analog Smart by XVRUltra Motion Detection (UMD) , SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection
Decoding CapabilityAnalog: 32 x 8MP Lite@8, 32 x 5MP Lite@12, 32 x 4MP Lite@15, 32 x 1080P@25, 32 x 720@30 IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 36 x D1, 16 x 720P@30
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Recording Frame RateMain stream: 8MP Lite@8fps Sub stream: D1@8fps Main stream: 5MP Lite@12fps Sub stream: D1@12fps Main stream: 4MP Lite@15fps Sub stream: D1@15fps Main stream: 1080P@15fps Sub stream: D1@15fps Main stream: 720P@30fps Sub stream: D1@30fps
Recording Resolution8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1
Weight (without HDD)≤6.0 Kg ( 13.23lb )
Smart Functions by XVR16-ch (UMD), 8-ch (SIP), 2-ch (Face Detection)
FTP/Schedule/Event SnapshotSchedule/FTP/Event snapshot:32-ch snapshot, up to 704*576 resolution
Smart Functions by IP Camera8-ch (SIP)
Supported Analog Camera TypesSupport AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input
Audio over Coaxial Cable(Form)32-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV)
Power Consumption (without HDD)≤ 45W
Num of Concurrent Playback in Local16-ch
