CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
USBRear panel: 1 × USB3.0, Front panel: 1 × USB2.0
SATA2 SATA interfaces
ClassDate | Title | Download
RS232N/A
RS4851
TitleLanguage | Type | Download
Alarm In8-ch
CapacityUp to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)

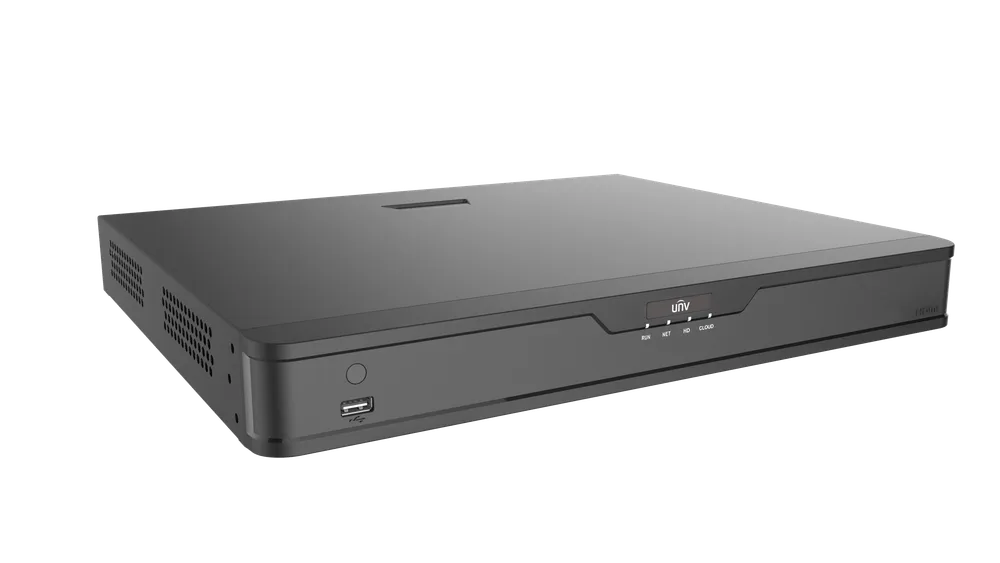

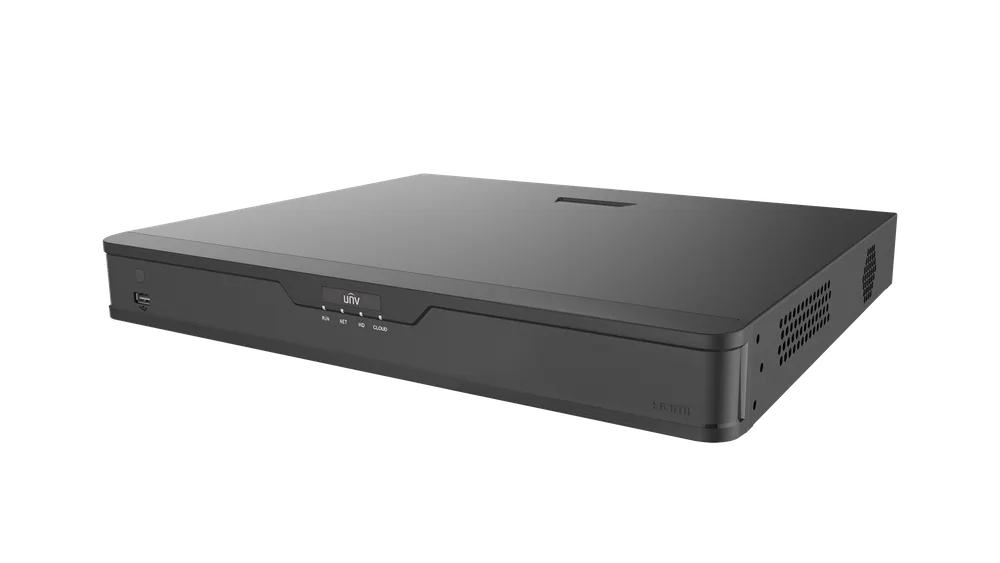

HD Image2026/9/7 9:54:08 | XVR302-08U3_HD_Image_3.png | png | Download
Alarm Out4-ch
Datasheet2026/6/23 12:19:16 | UNV XVR302-08U3 Digital Video Recorders.pdf | English | pdf | Preview | Download
ProtocolsTCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP

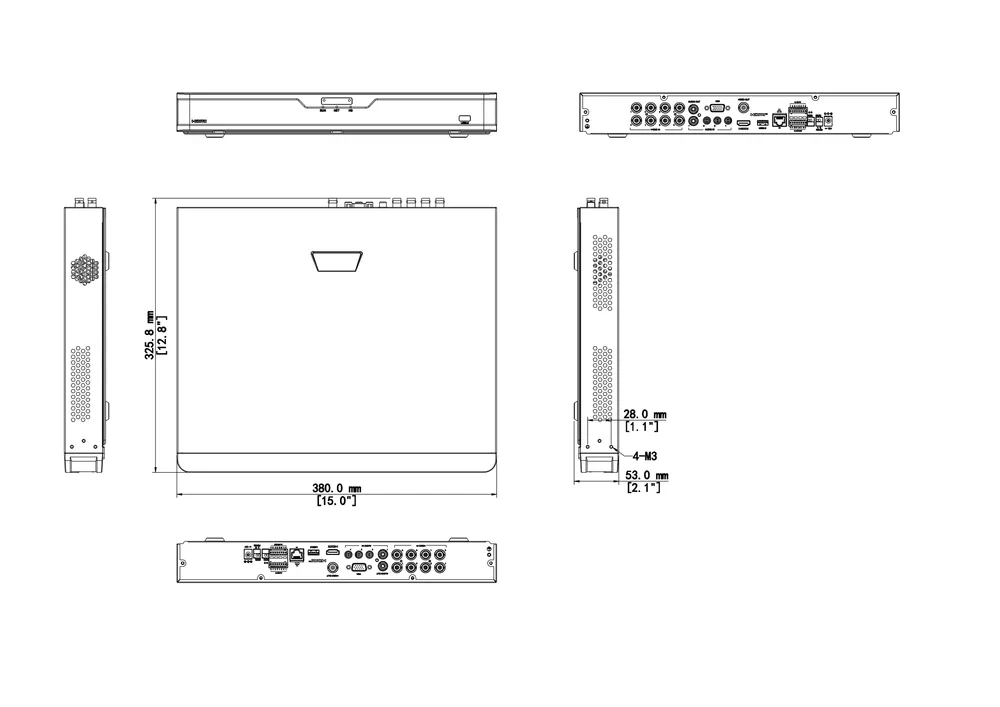

Dimensions2026/9/7 9:54:08 | XVR302-08U3_Dimensions_1.png | Download
VCA SearchFace Search, Behavior Search
VGA OutputVGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Alert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
HDMI OutputHDMI: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Quick Guide2026/6/24 16:03:18 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2025/10/10 10:03:01 | UNV-Digital Video Recorders User Manual.pdf | English | pdf | Preview | Download
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Power SupplyDC 12 V/3 A
Remote Users128
CertificationCE, FCC, UL, RoHS, WEEE
General AlarmMotion
Two-way Audio1-ch, RCA (Using the audio input and output)
Audio Bit Rate64 Kbps per channel
IP Video Input8-ch
BNC Audio Input8-ch, channel audio
Browser(Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
IP Smart by IPCFace Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking
RCA Audio Input4-ch
BNC Video Output1-ch
RCA Audio Output1-ch
Working Humidity≤ 90% RH (non-condensing)
Audio Sample Rate8 kHz, 16 bit per channel
Live View DisplayHDMI/VGA: 1/4/6/8/9/16
Network Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Analog Video Input8-ch, BNC
Incoming Bandwidth80Mbps (Up to 96Mbps after all analog channel conversion)
Max IP Video Input16-ch
Outgoing Bandwidth160Mbps
Analog Smart by XVRUltra Motion Detection (UMD) , SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area)
Decoding CapabilityAnalog: 8 x 8MP@8, 8 x 3K@12, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 8 x 720@30 IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Recording Frame RateMain stream: 8MP@8fps Sub stream: D1@8fps Main stream: 3K@12fps Sub stream: D1@12fps Main stream: 5MP@12fps Sub stream: D1@12fps Main stream: 4MP@15fps Sub stream: D1@15fps Main stream: 1080P@25fps Sub stream: D1@25fps Main stream: 720P@30fps Sub stream: D1@30fps
Recording Resolution8MP/5MP/4MP/1080P/720P/D1
Weight (without HDD)≤2.0 Kg ( 4.4lb )
Smart Functions by XVR8-ch (UMD), 4-ch (SIP)
FTP/Schedule/Event SnapshotSchedule/FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution
Supported Analog Camera TypesSupport AHD input: 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 8MP@15fps 3K@20fps 5MP@20ps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 8MP@15fps 5MP@25ps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input
Audio over Coaxial Cable(Form)8-ch, One-way Audio(TVI UNV )/One-way Audio(CVI UNV)
Power Consumption (without HDD)≤ 12W
