CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B
USBRear panel: 2 × USB2.0
SATA1 SATA interface
ClassDate | Title | Download
RS485N/A | N/A | 1
TitleLanguage | Type | Download
CapacityUp to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
HD Image2026/9/7 11:46:53 | XVR301-04G3_HD_Image_3.png | png | Download
Datasheet2026/6/23 10:56:35 | UNV XVR301-G3 Series Digital Video Recorder.pdf | English | pdf | Preview | Download
ProtocolsTCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP

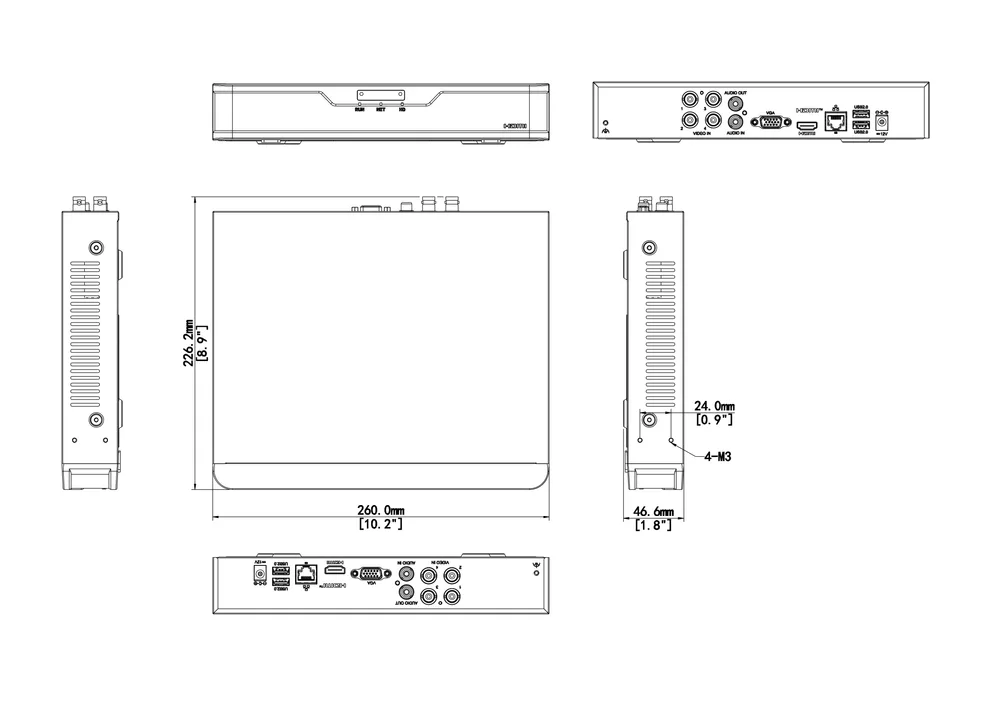

Dimensions2026/9/7 11:46:53 | XVR301-04G3_Dimensions_1.png | Download
VGA OutputVGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Alert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
HDMI OutputHDMI: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Quick Guide2026/6/24 16:03:18 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2025/10/10 10:03:01 | UNV-Digital Video Recorders User Manual.pdf | English | pdf | Preview | Download
GUI Language20 languages: English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
Power SupplyDC 12 V/2 A
Remote Users128
CertificationCE, FCC, UL, RoHS, WEEE
General AlarmMotion
Two-way Audio1-ch, RCA (Using the audio input and output)
Audio Bit Rate64 Kbps per channel
IP Video Input2-ch | 4-ch | 8-ch
Browser(Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
RCA Audio Input1-ch
RCA Audio Output1-ch
Working Humidity≤ 90% RH (non-condensing)
Audio Sample Rate8 kHz, 16 bit per channel
Live View DisplayHDMI/VGA: 1/4/6/8/9 | HDMI/VGA: 1/4/6/8/9/16 | HDMI/VGA: 1/4/6/8/9/25
Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface
Analog Video Input4-ch, BNC | 8-ch, BNC | 16-ch, BNC
Incoming Bandwidth16Mbps (Up to 24Mbps after all analog channel conversion) | 32Mbps (Up to 40Mbps after all analog channel conversion) | 40Mbps (up to 56Mbps after all analog channel conversion)
Max IP Video Input6-ch | 8-ch | 16-ch
Outgoing Bandwidth48Mbps | 64Mbps | 64Mbps
Analog Smart by XVRUltra Motion Detection (UMD)
Decoding CapabilityAnalog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 | Analog: 4 x 5MP Lite@6, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30 | Analog: 8 x 5MP Lite@6, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Recording Frame RateMain stream: 5MP Lite@12fps Sub stream: D1@12fps Main stream: 4MP Lite@15fps Sub stream: D1@15fps Main stream: 1080P@15fps Sub stream: D1@15fps Main stream: 720P@25fps Sub stream: D1@25fps | Main stream: 5MP Lite@6fps Sub stream: D1@6fps Main stream: 1080P Lite@12fps Sub stream: D1@12fps Main stream: 720P@12fps Sub stream: D1@12fps | Main stream: 5MP Lite@6fps Sub stream: D1@6fps Main stream: 1080P Lite@12fps Sub stream: D1@12fps Main stream: 720P@12fps Sub stream: D1@12fps
Recording Resolution5MP Lite/4MP Lite/1080P/720P/D1 | 5MP Lite/1080P Lite/720P/D1 | 5MP Lite/1080P Lite/720P/D1
Weight (without HDD)≤0.9Kg ( 1.98lb ) | ≤1.1 Kg ( 2.42lb ) | ≤1.1 Kg ( 2.42lb )
Smart Functions by XVR4-ch (UMD) | 4-ch (UMD) | 8-ch (UMD)
FTP/Schedule/Event SnapshotFTP/Event snapshot:4-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported | FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported | FTP/Event snapshot:16-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported
Supported Analog Camera TypesSupport AHD input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support TVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVI input: 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps Support CVBS input | Support AHD input: 5MP@12.5fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12.5fps 1080P@30fps 720P@30fps Support CVI input: 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input | Support AHD input: 5MP@12.5fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12.5fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Power Consumption (without HDD)≤ 8W | ≤ 8W | ≤ 10W
