MAC16K
ClassDate | Title | Download
Weight2.15KG
HD Image2026/7/29 1:00:51 | SW-2226-LP_HD_Image_3.png | png | Download
PoE ModeModeB (4578)
Datasheet2026/6/23 14:30:15 | Uniarch SW-2226-LP Ethernet PoE Switches.pdf | English | pdf | Preview | Download
IndicatorPOWER: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Max.Power270W
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at

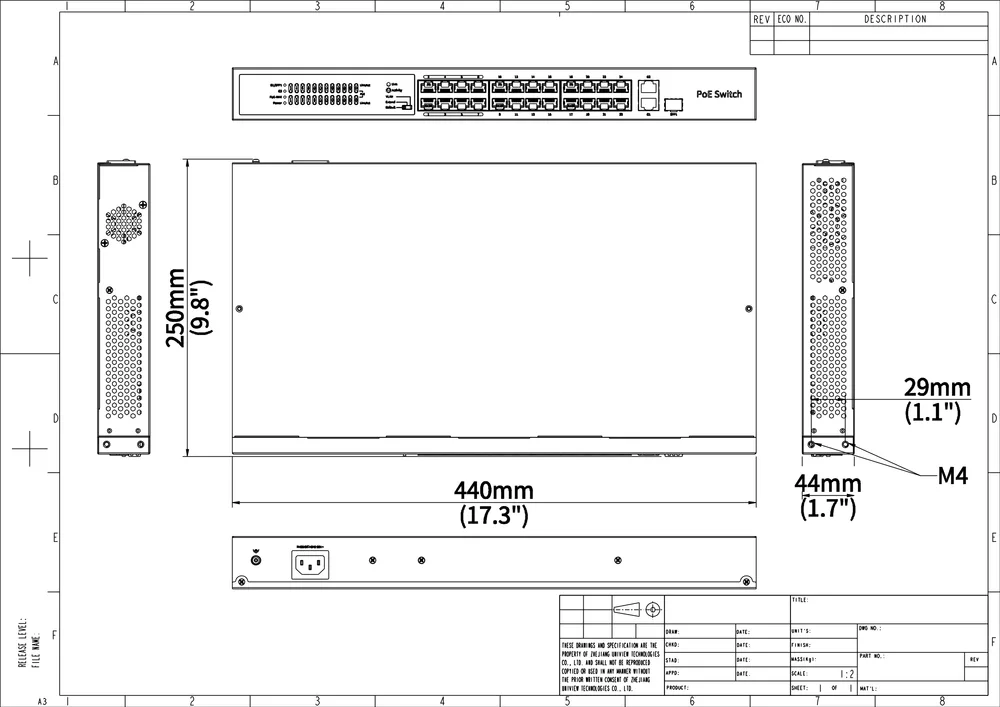

Dimensions2026/7/29 1:00:51 | SW-2226-LP_Dimensions_1.png | Download
Ports Type24×100Mbps PoE ports (RJ45)+ 1×1000Mbps GigaEthernet ports +1×1000Mbps Combo ports
Prior Ports1 to 8
Quick Guide2026/6/24 16:13:23 | Quick Guide.pdf | English | pdf | Preview | Download
Cooling Fans0
PoE StandardIEEE 802.3af, IEEE 802.3 at
Power SupplyAC: 100 to 240V, 50/60Hz
Working ModeDefault (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Max.PoE PowerMax capacity:250W Max capacity for single port: 30W
Packet Buffer4 M bit
NDAA CompliantSupport
Operating Humidity10% to 90% (noncondensing)
Switching capacity8.8 Gbps
Dimensions (W×D×H)440 × 189.8 × 44 mm
Operating Temperature0°C to 45°C (32°F to 113°F)
Forwarding performance6.55Mpps
