MAC1K
ClassDate | Title | Download
Weight0.19KG
HD Image2026/7/29 1:00:51 | SW-2106-LP_HD_Image_3.png | png | Download
PoE ModeModeB (4578)
Datasheet2026/6/23 14:29:47 | Uniarch SW-2106-LP Ethernet PoE Switches.pdf | English | pdf | Preview | Download
IndicatorPOWER: Steady on: AC input is normal Off: No AC input No PoE Indicator PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Max.Power65W
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Dimensions2026/7/29 1:00:51 | SW-2106-LP_Dimensions_1.png | Download

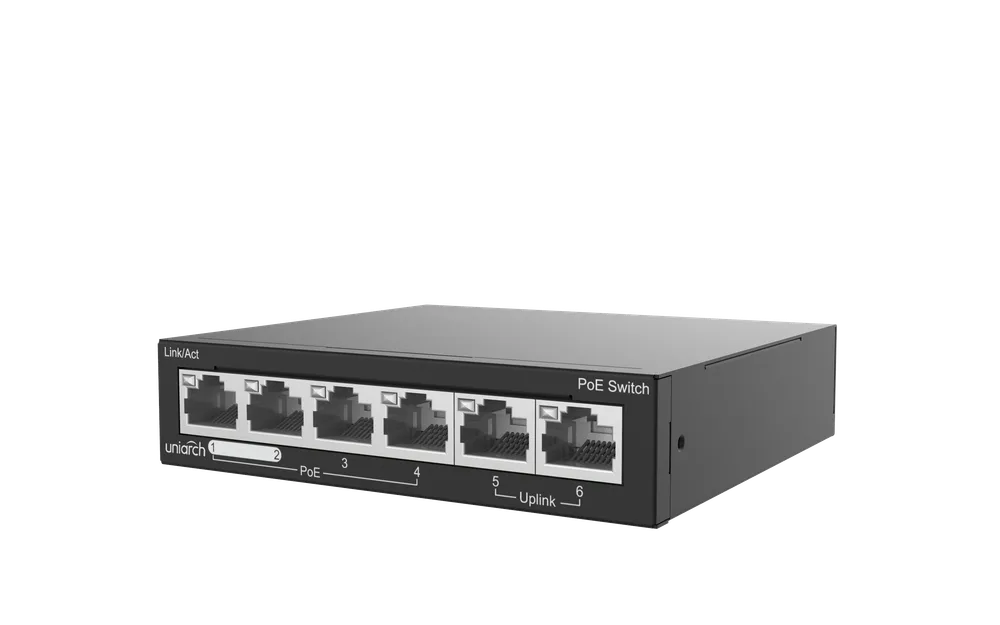

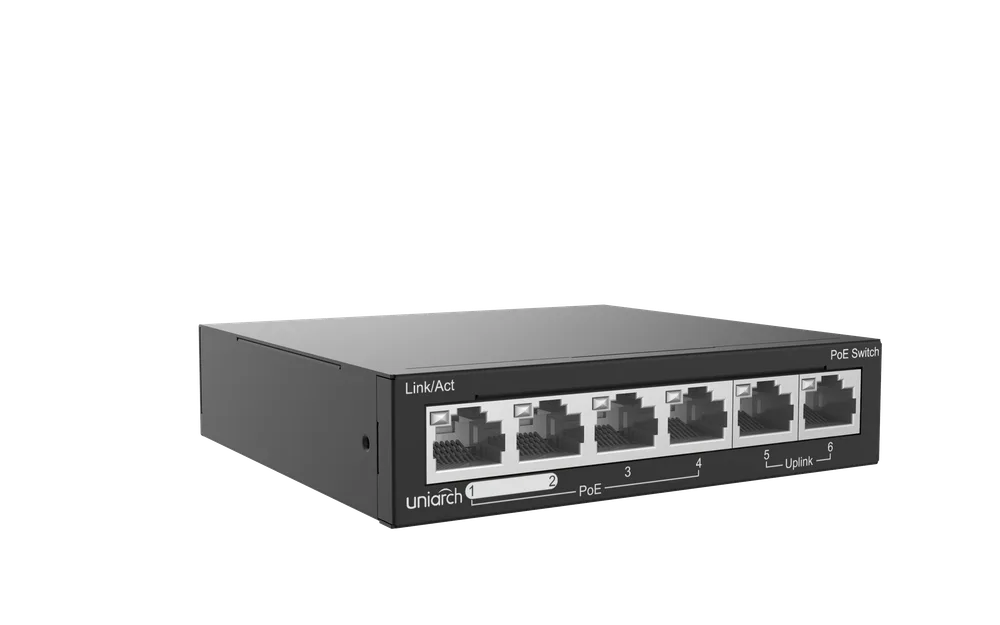

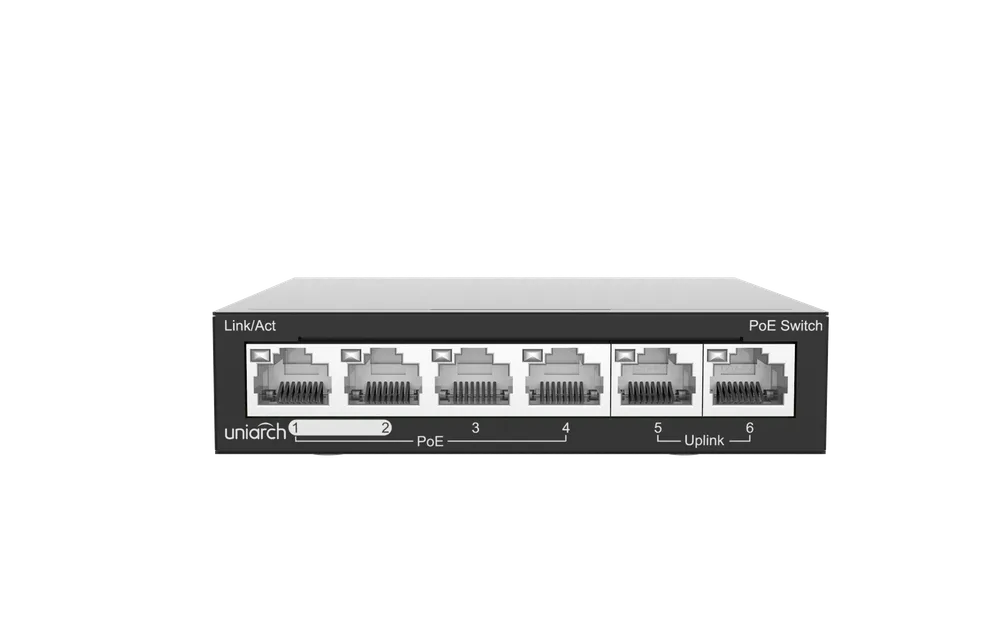

Ports Type6×100Mbps network ports (RJ45), including 4 PoE ports
Prior Ports1 to 2
Quick Guide2026/6/24 16:13:23 | Quick Guide.pdf | English | pdf | Preview | Download
Cooling Fans0
PoE StandardIEEE 802.3af, IEEE 802.3 at
Power SupplyDC: 48/51V, powered by adapter(100 to 240V, 50/60Hz)
Working ModeDefault (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Max.PoE PowerMax capacity:60W Max capacity for single port: 30W
Packet Buffer448K bit
NDAA CompliantSupport
Operating Humidity10% to 90% (noncondensing)
Switching capacity1.2 Gbps

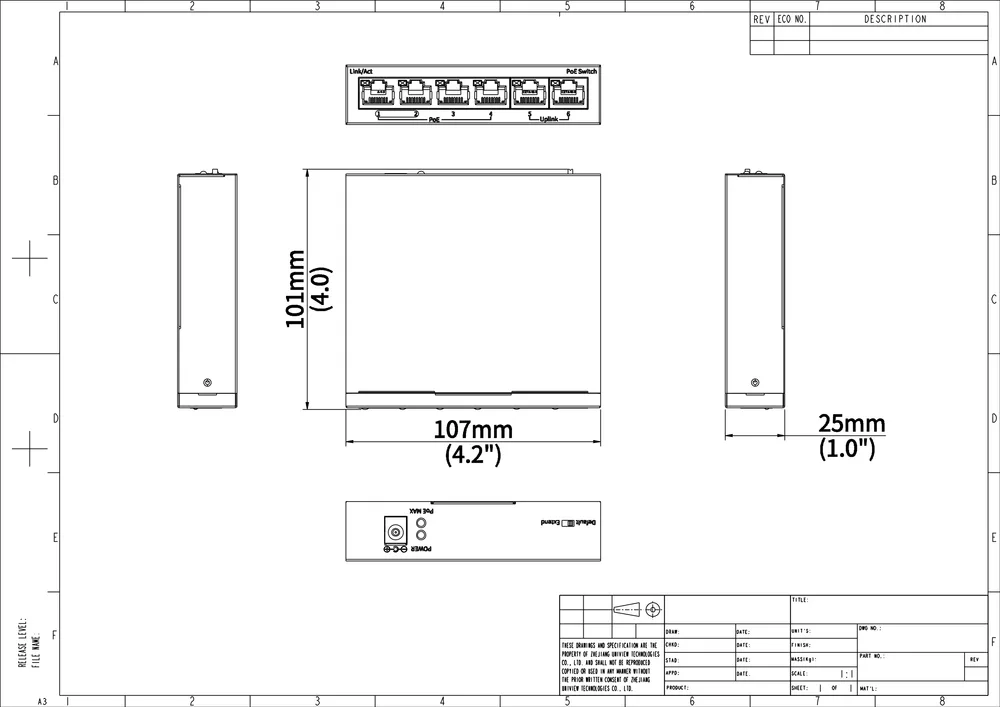

Dimensions (W×D×H)108 × 100 × 25.5 mm
Operating Temperature0°C to 45°C (32°F to 113°F)
Forwarding performance0.90Mpps
