TopSupport the installation of an IP speaker, no mounting bracket required.
ClassDate | Title | Download
TitleLanguage | Type | Download
BottomUp to 1 unit can be installed, which cannot be installed simultaneously with the IP Speaker and supports TR-UF45-A-IN (Only 4-inch PTZ)
DC 12V1-ch 2.5A, DC5521, Used for powering the router
DC 48VDC 10.8 ~ 14.4V to DC 48V, 2.5A, 2 Pin Phoenix terminal
RatingIP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements.
SocketN/A
HD Image2026/9/7 12:02:17 | SMBOX02_HD_Image_3.png | png | Download
Datasheet2026/6/23 8:42:19 | UNV SMBOX02 Smart Management Box.pdf | English | pdf | Preview | Download
Left sideUp to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2

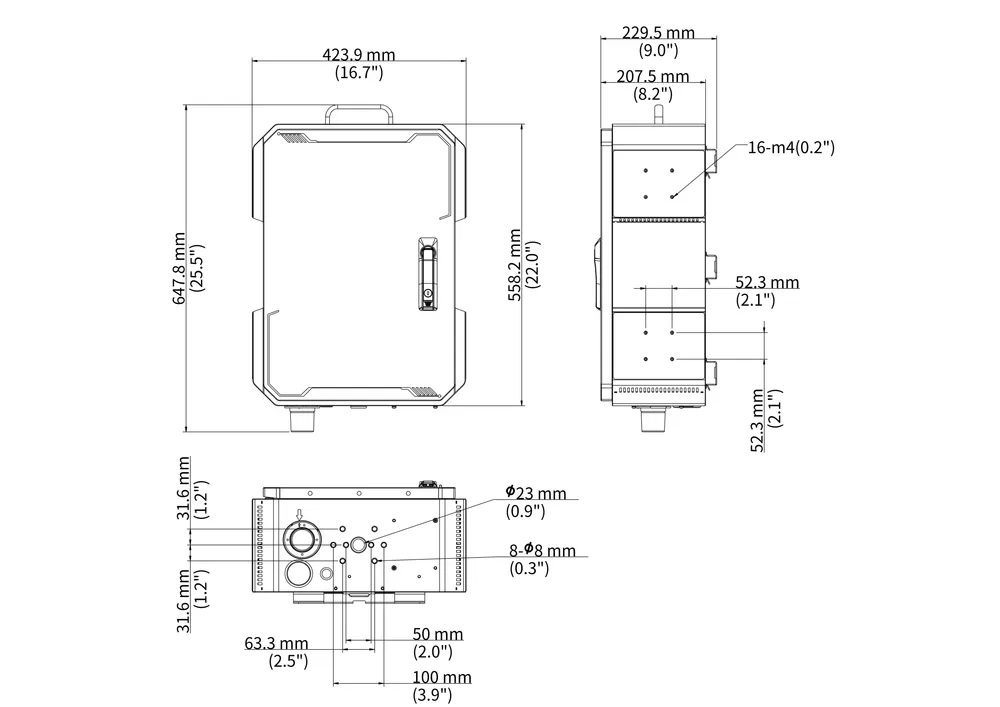

Dimensions2026/9/7 12:02:17 | SMBOX02_Dimensions_1.png | Download
Input Port3-pin Connector
Input TypeDC 10.8 V to DC 14.4 V, 12A
Right sideUp to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2
Quick Guide2026/6/24 17:00:05 | Quick Guide.pdf | English | pdf | Preview | Download
CertificationCE-EMC, FCC
Response timeL-PE ≤ 25 ns, N-PE ≤ 25 ns
Slot dimensionsThe space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 3 LAN ports.
Surge Protection6 kV
Working Humidity≤ 90% RH (non condensing)
Working Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Router Power InterfaceDC12V, 2.5A
Rated discharge current20 kA
Weight (Without Camera)≤ 14 kg (30.86 lb)
Maximum discharge current40 kA
No-load power consumptionAt ambient temperature of 25°C: 4.6 W (No HDD Heating, No Fan, No Alarm Light)
CBOX-B2101.3.15.260714.zipEnglish | zip | Download
Full-load power consumptionAt ambient temperature of 25°C: 12.6 W (Fan, Alarm Light)
System Functional DescriptionPower Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis
Warning Light Power InterfaceDC12V, 2.5A
