TopSupport the installation of an IP speaker, no mounting bracket required.
ClassDate | Title | Download
TitleLanguage | Type | Download
BottomUp to 1 unit can be installed, which cannot be installed simultaneously with the IP Speaker and supports TR-UF45-A-IN (Only 4-inch PTZ)
DC 12V1-ch 2.5A, DC5521, Used for powering the router
DC 48VAC 100 ~ 240V to DC 48V, 2.3A, 2 Pin Phoenix terminal
RatingIP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements.
Socket1-ch 5A, US socket | 1-ch 5A, EU socket
HD Image2026/9/7 12:01:56 | SMBOX01-US_HD_Image_3.png | png | Download
Datasheet2026/6/23 8:41:24 | UNV SMBOX01 Series Smart Management Box.pdf | English | pdf | Preview | Download
Left sideUp to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2

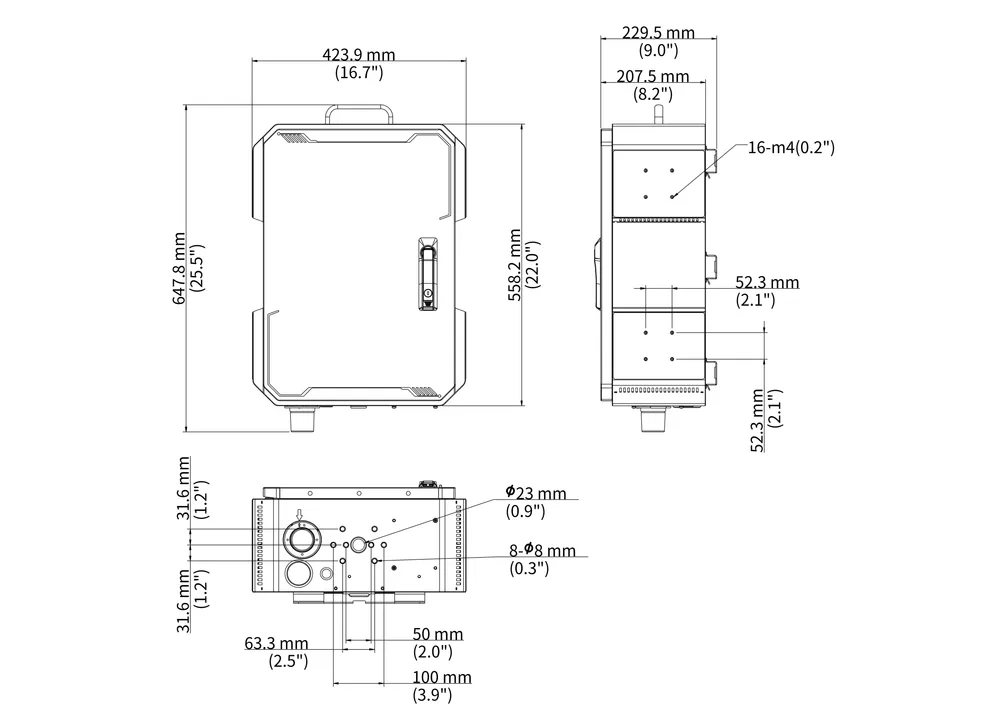

Dimensions2026/9/7 12:01:56 | SMBOX01-US_Dimensions_1.png | Download
Input Port3-pin Connector, For the final installation, a UL 489-certified, 20-ampere circuit breaker must be be installed at the front end.
Input TypeAC 100 V to 240 V
Right sideUp to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2
SMBOX01-USSMBOX01-EU
Quick Guide2026/6/24 17:00:05 | Quick Guide.pdf | English | pdf | Preview | Download
CertificationCE-EMC, FCC
Response timeL-PE ≤ 25 ns, N-PE ≤ 25 ns
Slot dimensionsThe space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 2 LAN ports.
Surge Protection6 kV
Working Humidity≤ 90% RH (non condensing)
Fan Power InterfaceDC12V, 2.5A
Working Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Heater Power InterfaceAC 100 ~ 240V to DC 12V, 8A
Router Power InterfaceDC12V, 2.5A
Rated discharge current20 kA
Weight (Without Camera)≤ 15 kg (33.07 lb)
Maximum discharge current40 kA
No-load power consumptionAt ambient temperature of 25°C: 5.7 W (No HDD heating, No Heater, No Fan, No Alarm Light)
CBOX-B2101.3.15.260714.zipEnglish | zip | Download
Full-load power consumptionAt ambient temperature of 25°C: 125W (Heater, Fan, Alarm Light)
System Functional DescriptionOvervoltage and Overload Protection,Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Thermostatic Heater,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis
Warning Light Power InterfaceDC12V, 2.5A
