PoE8 RJ45 10M/100M self adaptive Ethernet Interface
TopSupport the installation of an IP speaker, no mounting bracket required.
USB1 × USB2.0, 1 × USB3.0
ClassDate | Title | Download
ONVIFSupport
TitleLanguage | Type | Download
BottomUp to 1 unit can be installed, which cannot be installed simultaneously with the IP Speaker and supports TR-UF45-A-IN (Only 4-inch PTZ)
DC 12V1-ch 2.5A, DC5521, Used for powering the router
RatingIP56, Custom stainless-steel enclosures available to meet NEMA 4X requirements.
Socket1-ch 5A, US socket | 1-ch 5A, EU socket
Alarm In4-ch
HD Image2026/9/7 14:01:37 | SMBOX01-R-US_HD_Image_3.png | png | Download
Alarm Out2-ch
Bandwidth80 Mbps
Datasheet2026/6/23 6:13:39 | UNV SMBOX01-R Series Smart Management Box.pdf | English | pdf | Preview | Download
Hard Disk1 x SATA interface, up to 16TB HDD (2.5" or 3.5"), or up to 4TB SSD (2.5")
Left sideUp to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2
PoE PowerMax 30 W for single port, Max 75 W in total
ProtocolsTCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4

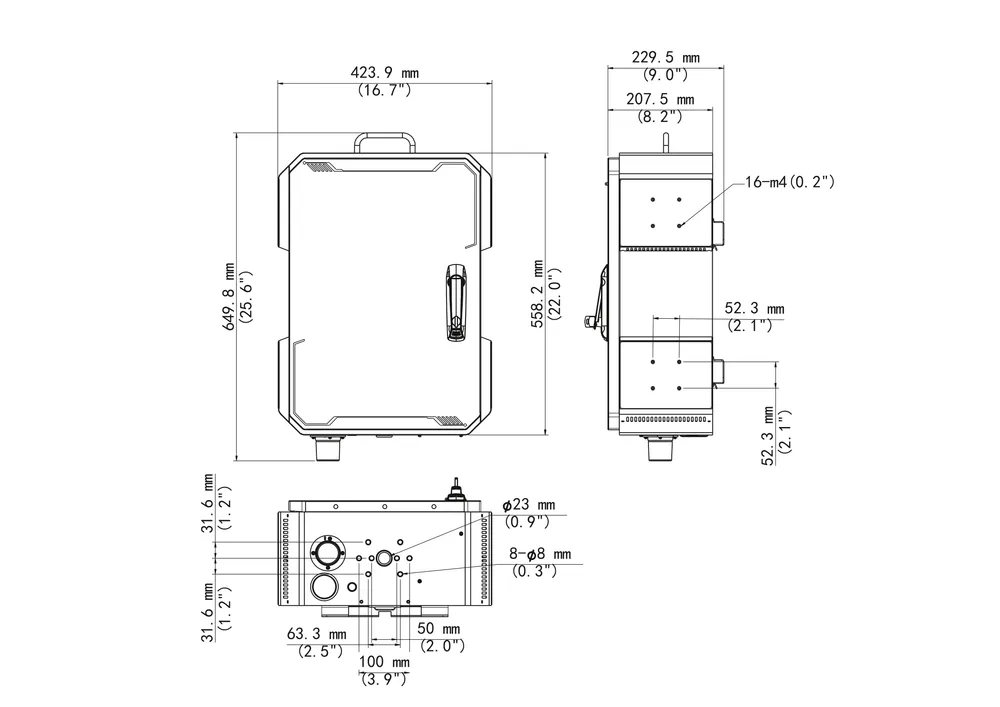

Dimensions2026/9/7 14:01:37 | SMBOX01-R-US_Dimensions_1.png | Download
Input Port3-pin Connector, For the final installation, a UL 489-certified, 20-ampere circuit breaker must be be installed at the front end.
Input TypeAC 100 V to 240 V
Right sideUp to 2 units can be installed, supporting TR-JB07/WM03-F-IN-V2, TR-JB07/WM03-G-IN-V2, TR-JB07/WM03-H-IN-V2, TR-JB07/WM04-B-IN-V2, TR-JB05-B-IN or TR-JB07-D-IN-V2
VCA SearchMotor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map, SmartSearch+, AcuSearch
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded
Quick Guide2026/7/3 8:00:46 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2025/7/18 9:24:33 | UNV-Intelligent Integrated Management BOX User Manual.pdf | English | pdf | Preview | Download
PoE StandardIEEE 802.3at, IEEE 802.3af
SIP by SMBOX4-ch

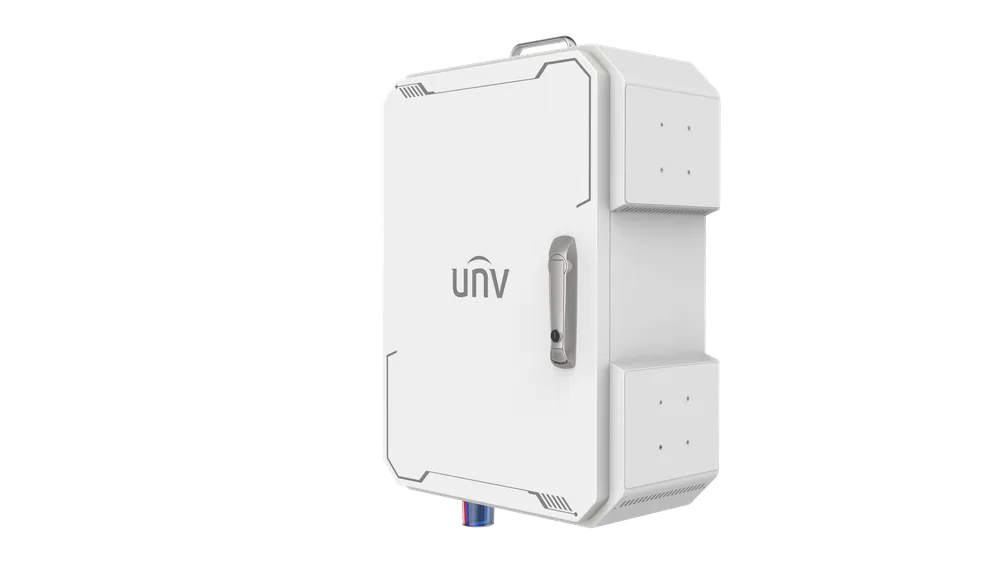

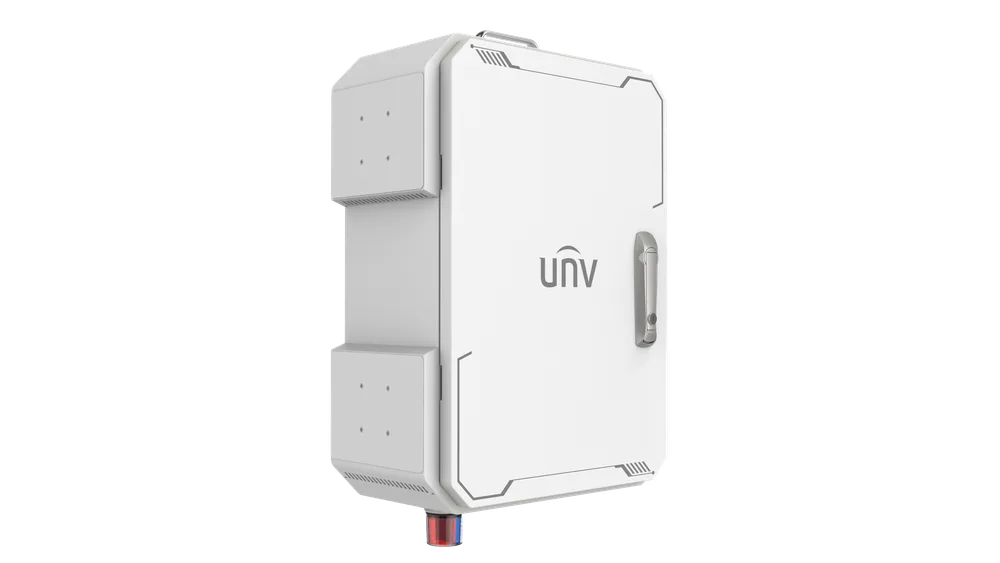

SMBOX01-R-USSMBOX01-R-EU
Smart by IPCFace Detection,Vehicle Detection,SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area),Ultra Motion Detection (UMD),Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection),People Counting (People Flow Counting, Crowd Density Monitoring),Video Metadata,Traffic Monitoring
UMD by SMBOX8-ch
CertificationCE-EMC, FCC
General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Response timeL-PE ≤ 25 ns, N-PE ≤ 25 ns
IP Video Input8-ch
Smart by SMBOXFace Detection,Ultra Motion Detection (UMD),Smart Intrusion Prevention (SIP)
Decoding FormatUltra 265, H.265, H.264
Slot dimensionsThe space has a depth of 55mm and a width of 190mm for installing a 4G router, Select a 4G router with DC 12V round plug power supply, total power consumption not exceeding 30W, and at least 2 LAN ports.
Surge Protection6 kV
Working Humidity≤ 90% RH (non condensing)
Audio CompressionG.711A, G.711U
Network Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Decoding CapabilitySmart Off: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30 Smart On: 2 x 12MP@30, 2 x 4K@30, 6 x 4MP@30, 8 x 3MP@30
Fan Power InterfaceDC12V, 2.5A
Working TemperatureWhen using HDDs: -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉); When using SSDs: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Heater Power InterfaceAC 100 ~ 240V to DC 12V, 8A
Router Power InterfaceDC12V, 2.5A
Rated discharge current20 kA
Vehicle Picture LibraryUp to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
Weight (Without Camera)≤ 16 kg (35.27 lb)
Maximum discharge current40 kA
No-load power consumptionAt ambient temperature of 25°C: 13.7 W (No HDD, No HDD heating, No Heater, No Fan, No Alarm Light)
CBOX-B2101.3.15.260714.zipEnglish | zip | Download
SMSERVER power consumptionAt ambient temperature of 25°C: ≤8W (No HDD+ No POE Output) 96.5W (Full POE Output + 16T HDD) 122.2W (Full POE Output + 16T HDD + Heating Film)
FTP/Schedule/Event Snapshot4-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution)
Full-load power consumptionAt ambient temperature of 25°C: 247.2 W (16T HDD, HDD Heating, Heater, Full POE Output (75W), Fan, Alarm Light)
Capacity of Snapshot Records500 thousand records for face snapshot, One and a half millions records for SIP and vehicle
by SMBOX with normal cameras2-ch
System Functional DescriptionOvervoltage and Overload Protection,Power Information Collection,Power Switch Detection,Power Switch Control,Thermostatic Fan,Thermostatic Heater,Automatic Network Restart,Door Open Detection,Warning Light,Fault Reporting and Analysis
Warning Light Power InterfaceDC12V, 2.5A
SMSERVER-B3618.3.10.260617.zipEnglish | zip | Download
by SMBOX with face detection cameras8-ch
