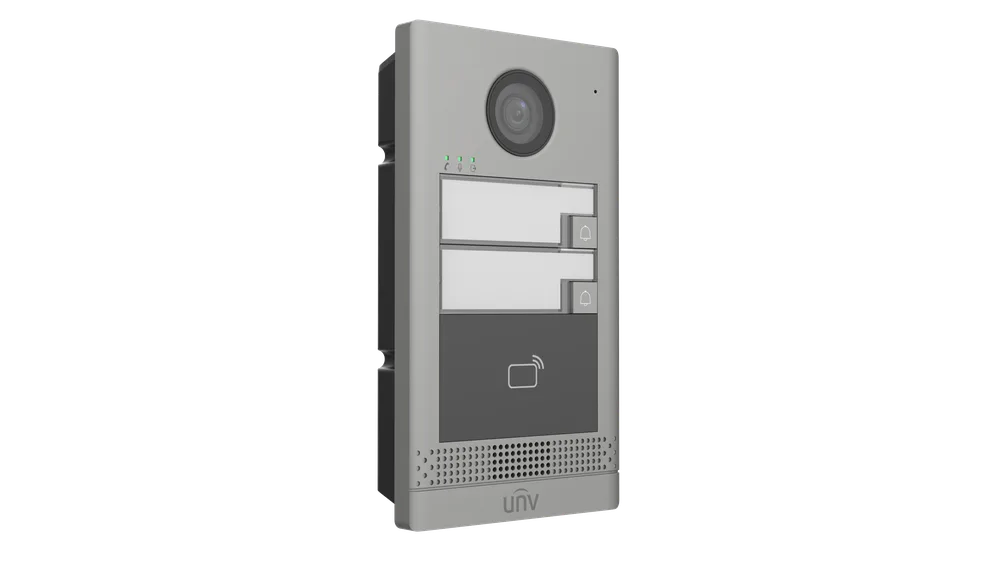

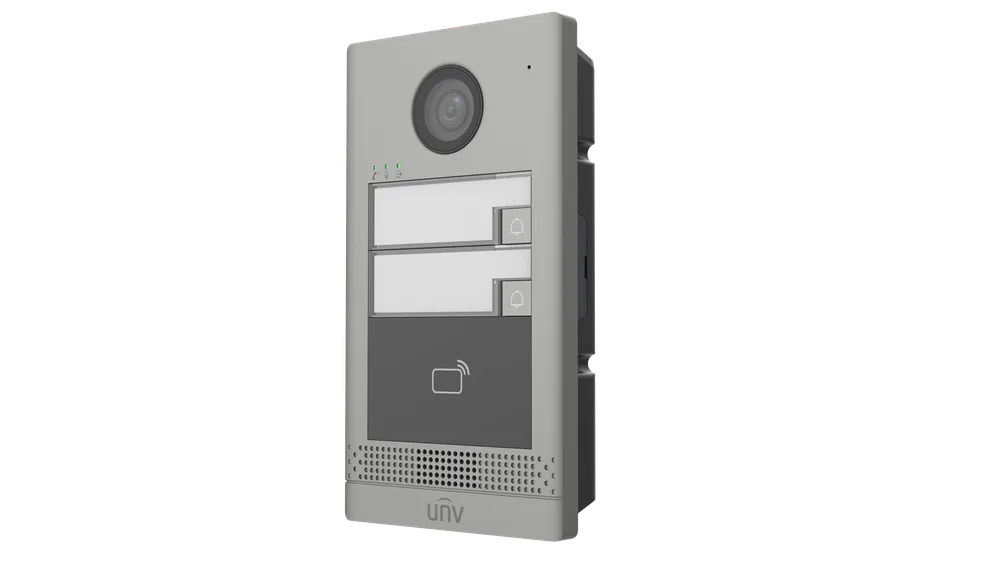

Uniview OEU-202S-HMK2 Villa Door Station

Description

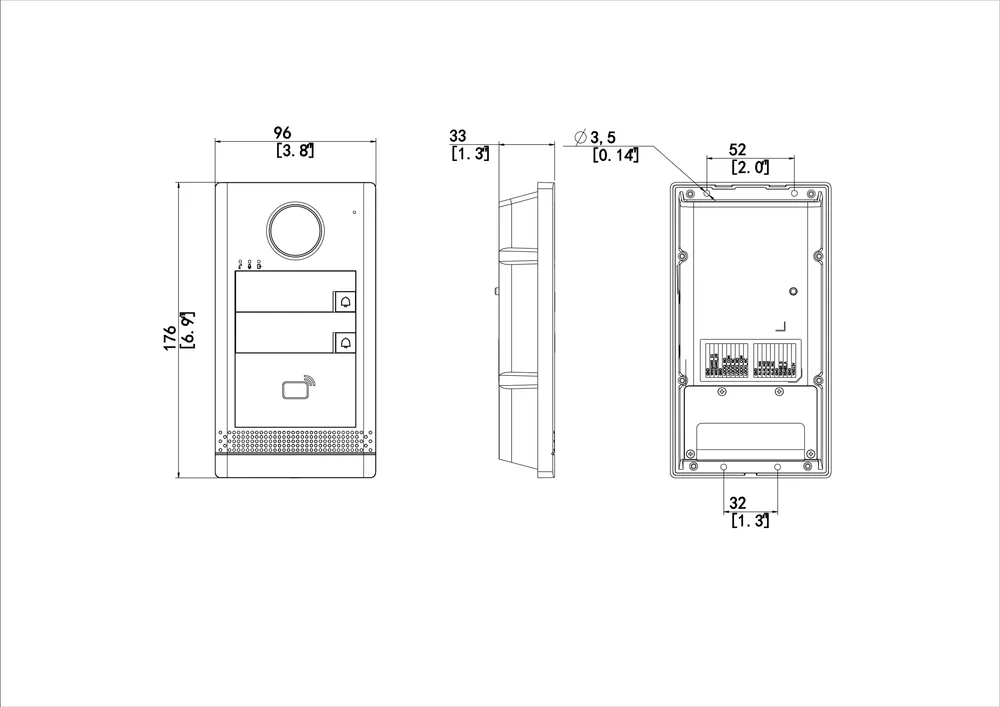

OEU-202S-HMK2 Villa Door Station. Villa Door Station (Metal, 2-button). A genuine Uniview (UNV) product, NDAA-compliant, backed by the manufacturer warranty. Key Specifications: • Network protocol: TCP/IP, IPv4, HTTP, RTP, RTSP, NTP • Power Consumption: PoE: 6.48W DC12V: 5.35W • Audio Quality: Noise suppression, echo cancellation, AGC • Audio Input: 1 x Built-in omnidirectional microphone • Audio Output: 1 x Built-in speaker • Audio Compression Bitrate: 128Kbps • Protection Level: IP65 (Apply waterproof glue to the gap between the device and the wall. See the corresponding quick guide for details) IK08 • Power Supply: DC12V ±25%, IEEE802.3af PoE power supply • Weight: 375g • Network: 100Mbps network port, supports IEEE802.3af PoE power supply • Interface: Power*1, network port*1, RS485*1, Wiegand*1, IO input*4, door lock*2 (support electric lock/door magnet), tamper button*1 • Dimensions (L x W x H): 96mm*176mm*33mm • Power Output: 12V/0.25A • Dimensions: 2026/8/24 10:25:56 | OEU-202S-HMK2_Dimensions_1.png | Download Model: OEU-202S-HMK2
